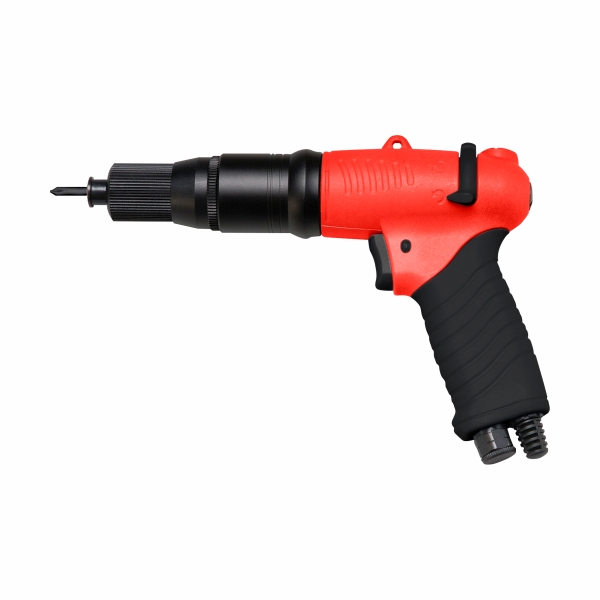

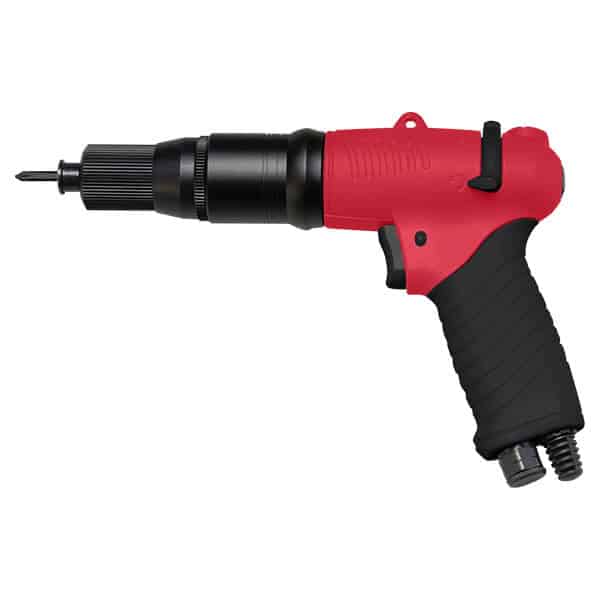

ZB49CCQ Air Screwdriver / Pistol Type
- Torque fix system
- Wide torque range & low vibration
- Patented clutch mechanism
- Patented high output motor
- One hand operation for forward and reverse
Motor Comparison
Patented motor
Traditional motor
Torque schematic diagram
Patented torque control system
Traditional torque control system
Specification:
- Free Speed: 1800 rpm.
- Net Weight: 640 g
- O.A.L: 190 mm
- Dia.: 35 mm
- High: 190 mm
- Air Pressure: 6 Kg/cm3
- Min. air hose bore: 5 mm
- Air Consumption: 0.28 m3/min
- Torque range: 3-25 Kgf-cm
- Standard Deviation: ±3 %
- Fastening Capacity/Machine Screw Dia.: M2.2-M4.7
- Fastening Capacity/Tapping Screw Dia.: M1.7-M3.8
| Model | Free Speed rpm | Weight g | O.A.L mm | Dia. mm | High mm | Air Pressure kg/cm³ | Min. air hose bore mm | Air Consumption m³/min | Torque range kgf-cm | Standard Deviation % | Fastening Capacity | |
| Machine Screw Dia. | Tapping Screw Dia | |||||||||||
| ZB46CCQ | 2200 | 640 | 190 | 35 | 190 | 6.0 | 5.0 | 0.28 | 3-20 | ±3 | M2.2-M4.5 | M1.7-M3.5 |
| ZB49CCQ | 1800 | 640 | 190 | 35 | 190 | 6.0 | 5.0 | 0.28 | 3-25 | ±3 | M2.2-M4.7 | M1.7-M3.8 |
| ZB52CCQ | 1000 | 640 | 190 | 35 | 190 | 6.0 | 5.0 | 0.28 | 5-35 | ±3 | M2.8-M5.2 | M2.2-M4.2 |
| ZB58CCQ | 550 | 640 | 190 | 35 | 190 | 6.0 | 5.0 | 0.28 | 10-50 | ±3 | M3.6-M6.0 | M2.8-M4.7 |
| ZB59CCQ | 1700 | 980 | 220 | 43 | 220 | 6.0 | 8.0 | 0.55 | 7-50 | ±3 | M2.9-M6.0 | M2.6-M4.9 |
| ZB61CCQ | 1400 | 980 | 220 | 43 | 220 | 6.0 | 8.0 | 0.55 | 10-60 | ±3 | M3.6-M6.2 | M2.8-M5.1 |
| ZB66CCQ | 1000 | 980 | 220 | 43 | 220 | 6.0 | 8.0 | 0.55 | 12-75 | ±3 | M3.8-M6.6 | M3.0-M5.6 |
| ZB71CCQ | 550 | 980 | 220 | 43 | 220 | 6.0 | 8.0 | 0.55 | 30-110 | ±3 | M5.0-M7.3 | M4.0-M6.2 |
| ZB76CCQ | 300 | 1100 | 220 | 43 | 220 | 6.0 | 8.0 | 0.55 | 30-180 | ±3 | M5.0-M9.3 | M4.0-M7.2 |
| ZB79CCQ | 250 | 1250 | 220 | 43 | 220 | 6.0 | 8.0 | 0.55 | 50-280 | ±3 | M6.0-M11.0 | M4.9-M8.7 |
