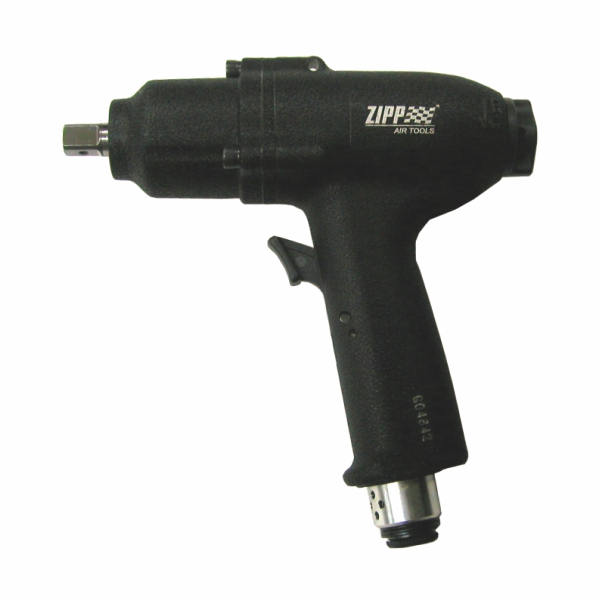

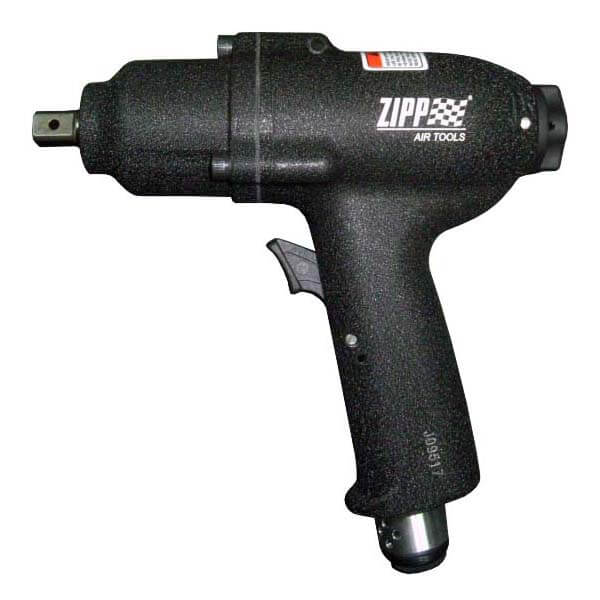

ZIW305 3/8 inch Impact Wrench / Rear Exhaust
Lightweight and ergonomically designed ZIW305 3/8 inch Air Impact Wrench that offers MAX torque of 45(61) ft-lb (NM) Means You’ll Have The Power To Burst Through Those Stubborn Bolts. Comfortable And Easy To Use.
New Twin Hammer Design:
- Two Hammer Design
- Forward/Reverse
- Use for general automotive repair or assembly line.
Specification:
- Square Drive: 3/8(10)inch(mm)
- Std. Bolt Size: 5/16(8)(14)inch(mm)
- Free Speed: 8500rpm
- Max. Torque(1 secs): 45(61)ft-lb(NM)
- Operating Air Pressure: 90(6.2)psi(bar)
- Avg. Air Cons.: 5.6(160)cfm(l/min)
- Net Weight: 2.3(1.05)lbs(kgs)
- Min. Hose Size: 1/4(6.35)inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT
| Model | Square Drive inch(mm) | Std. Bolt Size inch(mm) | Free Speed rpm | Max. Torque (10 secs) ft-lb(Nm) | Operating Air Pressure psi(bar) | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Min. Hose Size inch(mm) | Air Inlet Size inch-NPT/PT |
| ZIW440 | 1/2(12.7) | 5/8(16) | 11000 | 400(543) | 90(6.2) | 7(200) | 3.3(1.5) | 3/8(10) | 1/4 |
| ZIW335 | 3/8(10) | 9/16(14) | 11000 | 350(475) | 90(6.2) | 7(200) | 3.3(1.5) | 3/8(10) | 1/4 |
| ZIW305 | 3/8(10) | 5/8(16) | 8500 | 1 sec. 45(61) | 90(6.2) | 5.6(160) | 2.3(1.05) | 1/4(6.35) | 1/4 |
| ZIW304S | 3/8(10) | 5/8(16) | 8000 | 1 sec. 43(58) | 90(6.2) | 5.6(160) | 2.2(1) | 1/4(6.35) | 1/4 |
| ZIW344 | 3/8(10) | 5/8(16) | 5000 | 44(60) | 90(6.2) | 17.7(500) | 2(0.93) | 1/4(6.35) | 1/4 |
