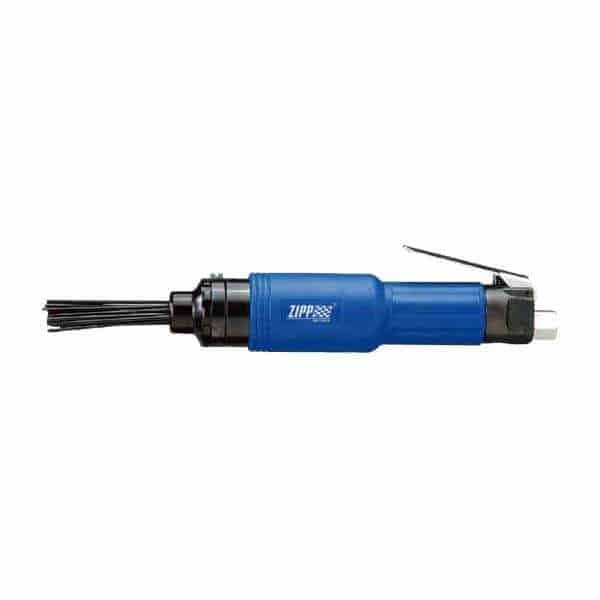

ZKJ31-27 Air Needle Scalers
Composite Straight Needle Scaler
Features & Benefits
- Needle scaler for industrial application
- Sturdy and simple design for heavy and wide applications
- Superior design with internal spring components provides greater durability
Specification:
- Numbers of Needles: 27 pcs
- Piston Diameter:0.8(20) inch(mm)
- Piston Stroke: 1.06(27) inch(mm)
- Needle Diameter: 5/64×7(2×180) Øinch(mm)
- Blows Per Min.: 4000 bpm
- Avg. Air Cons.: 4(115) cfm(l/min)
- Overall Length: 13.6(345) inch(mm)
- Net Weight: 5.3(2.4) lbs(kgs)
- Min. Hose Size: 3/8(10) inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT
Model | Numbers of Needles pcs | Piston Diameter inch(mm) | Piston Stroke inch(mm) | Needle Diameter Øinch(mm) | Blows Per Min. bpm | Avg. Air Cons. cfm(l/min) | Overall Length inch(mm) | Net Weight lbs(kgs) |
ZKJ27 | 19 | 0.6(16) | 0.6(16) | 5/64×7(2×180) | 4000 | 2.5(70) | 11.2(285) | 3.5(1.6) |
ZKJ31-12 | 12 | 0.8(20) | 1.06(27) | 1/8×7(3×180) | 4000 | 4(115) | 13.6(345) | 5.3(2.4) |
ZKJ31-27 | 27 | 0.8(20) | 1.06(27) | 5/64×7(2×180) | 4000 | 4(115) | 13.6(345) | 5.3(2.4) |
ZKJ35-23 | 23 | 0.94(24) | 1.06(27) | 1/8×7(3×180) | 4000 | 7(198) | 13.2(335) | 6.2(2.8) |
ZKJ35-53 | 53 | 0.94(24) | 1.06(27) | 5/64×7(2×180) | 4000 | 7(198) | 13.2(335) | 6.2(2.8) |
ZKJ39-14 | 14 | 1.1(28) | 1.1(28) | 5/32×7(4×180) | 3500 | 7.4(210) | 13.8(350) | 7.9(3.6) |
ZKJ39-28 | 28 | 1.1(28) | 1.1(28) | 1/8×7(3×180) | 3500 | 7.4(210) | 13.8(350) | 7.9(3.6) |
ZKJ39-66 | 66 | 1.1(28) | 1.1(28) | 5/64×7(2×180) | 3500 | 7.4(210) | 13.8(350) | 7.9(3.6) |
ZKJ39A | ─ | 1.1(28) | 1.1(28) | ─ | 3500 | 7.4(210) | 13.8(350) | 7.9(3.6) |
ZKJ831 | 19 | 0.75(19) | 2.7(70) | 1/8×7(3×180) | 3500 | 6.6(187) | 14.6(370) | 6(2.7) |
ZNS-1228 | 12 | 0.75(19) | 1.6(41) | 1/8×4.9(3×126) | 2800 | 2.1(60) | 11.6(295) | 2.4(1.1) |
ZNS1919 | 19 | 0.75(19) | 1.6(41) | 1/8×7(3×180) | 4000 | 7.4(210) | 12(305) | 4.9(2.2) |
ZNS1919C | 19 | 0.75(19) | 1.6(41) | 1/8×7(3×180) | 4000 | 7.4(210) | 13(330) | 4.9(2.2) |
ZNS-4111 | 13 | ─ | ─ | 0.051(1.3) | 3000 | 1.68(48.1) | 9.28(235.6) | 1.06(0.48) |
- Min. Hose Size: 3/8(10) inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT
