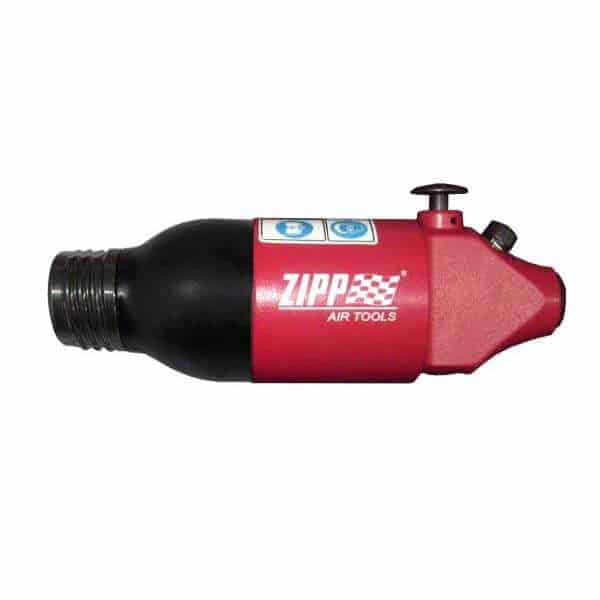

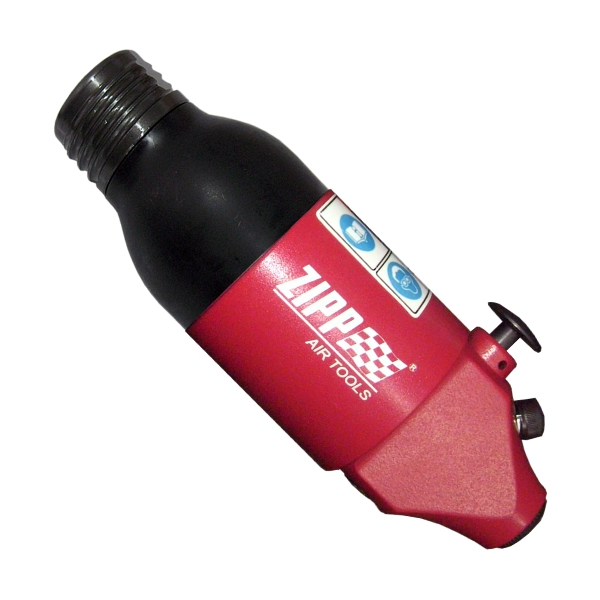

ZRH-131S 1X Air Riveting Hammer –Straight
Specification:
- Chisel Shank Opening: 0.401(10.2) inch(mm)
- Bore Diameter: 9/16(14.3) inch(mm)
- Stroke Length: 1-3/8(35) inch(mm)
- Blows Per Minute: 2850 bpm
- Operating Air Pressure: 90(6.2) PSI(bar)
- Avg. Air Cons.: 6.4(180) cfm(l/min)
- Net Weight: 1.9(0.86) lbs(kgs)
- Min. Hose Size: 3/8(10) inch(mm)
- Rivet Size: 1/8 Steel
- Rivet Size: 5/32 inch(mm)
For ZRH-131P, ZRH-131S
- Round 10.08mm
- Material SCM440 Alloy
- Hardness: 48~51ΒΊ
131901
Use for aero space & general automotive industries, etc.
Model | Chisel Shank Opening inch(mm) | Bore Diameter inch(mm) | Stroke Length inch(mm) | Blows Per Minute bpm | Operating Air Pressure psi(bar) | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Minch Hose Size inch(mm) | Rivet Size | |
Steel | Alum | |||||||||
ZRH-131P | 0.401(10.2) | 9/16(14.3) | 1-3/8(35) | 2850 | 90(6.2) | 6.4(180) | 2.3(1.0) | 3/8(10) | 1/8 | 5/32 |
ZRH-132P | 0.401(10.2) | 1/2(12.7) | 2-1/4(57.2) | 2580 | 90(6.2) | 7.8(221) | 2.7(1.2) | 3/8(10) | 3/32 | 1/8 |
ZRH-133P | 0.401(10.2) | 1/2(12.7) | 2-7/8(73) | 2160 | 90(6.2) | 7.78(220) | 2.9(1.3) | 3/8(10) | 5/32 | 3/16 |
ZRH-134P | 0.401(10.2) | 1/2(12.7) | 3-1/16(77.8) | 1740 | 90(6.2) | 7.78(220) | 3.1(1.4) | 3/8(10) | 3/16 | 1/4 |
ZRH-132PAP | 0.401(10.2) | 9/16(14.3) | 2-1/4(57.2) | 2580 | 90(6.2) | 5.7(160) | 2.7(1.2) | 3/8(10) | 3/32 | 1/8 |
ZRH-133PAP | 0.401(10.2) | 9/16(14.3) | 2-7/8(73) | 2160 | 90(6.2) | 4.9(140) | 2.9(1.3) | 3/8(10) | 5/32 | 3/16 |
ZRH-134PAP | 0.401(10.2) | 9/16(14.3) | 3-1/16(77.8) | 1740 | 90(6.2) | 6.4(180) | 3.1(1.4) | 3/8(10) | 3/16 | 1/4 |
ZRH-131S | 0.401(10.2) | 9/16(14.3) | 1-3/8(35) | 2850 | 90(6.2) | 6.4(180) | 1.9(0.86) | 3/8(10) | 1/8 | 5/32 |
ZRH-132S | 0.401(10.2) | 1/2(12.7) | 2-1/4(57.2) | 2580 | 90(6.2) | 6.4(180) | 2.4(1.06) | 3/8(10) | 3/32 | 1/8 |
ZRH-133S | 0.401(10.2) | 1/2(12.7) | 2-7/8(73) | 2160 | 90(6.2) | 6.4(180) | 2.6(1.16) | 3/8(10) | 5/32 | 3/16 |
ZRH-134S | 0.401(10.2) | 1/2(12.7) | 3-1/16(77.8) | 1740 | 90(6.2) | 6.4(180) | 2.8(1.27) | 3/8(10) | 3/16 | 1/4 |
ZRH-195P | 0.498(12.6) | 3/4(19.1) | 2-11/16(68.3) | 1560 | 90(6.2) | 7.78(220) | 4.6(2.1) | 3/8(10) | 3/16 | 1/4 |
ZRH-197P | 0.498(12.6) | 3/4(19.1) | 5-13/16(132) | 900 | 90(6.2) | 9.19(260) | 5.5(2.5) | 3/8(10) | 5/16 | 3/8 |
ZRH-199P | 0.498(12.6) | 3/4(19.1) | 3-7/8(98.4) | 1140 | 90(6.2) | 7.78(220) | 5(2.3) | 3/8(10) | 1/4 | 5/16 |
