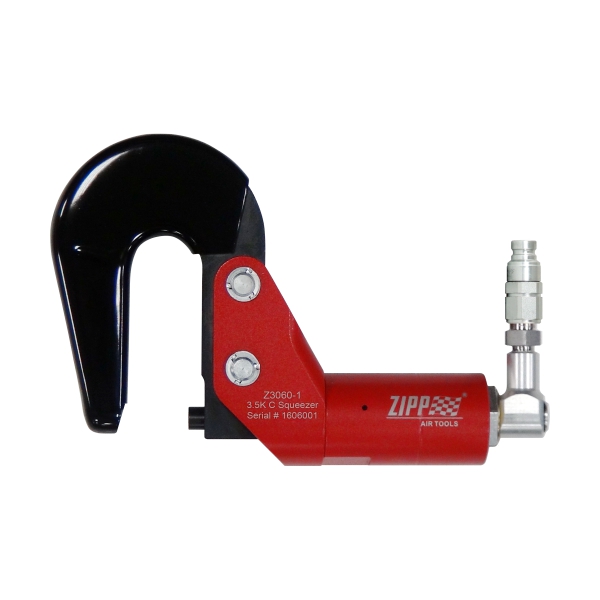

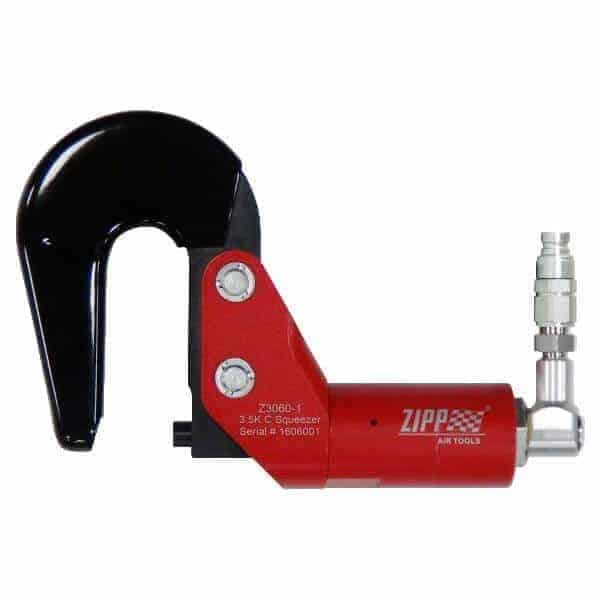

Z3500C Pneudraulic C –Yoke Squeezers
Features
- High quality industrial grade compression rivet squeezers, for the installation of solid rivets.
- Compact size and lighter in weight compare to current pneumatic squeezers on the market.
- CONSTANT FORCE over the entire stroke range.
- Built from high quality aircraft grade materials and features held to close tolerances, for years of dependable operation.
- The reduction in weight and constant force decreases operator fatigue, and improves the quality of every riveting work.
Commercial users of these Squeezers
AIRBUS, ALCOA, BARNES AEROSPACE, BEECHCRAFT, BOEING AIRCRAFT, CANADA NATIONAL DEFENCE, DELTA AIRLINES, GE AIRCRAFT ENGINES, HONDA AIRCRAFT, KOREAN AEROSPACE, LODE KING INDUSTRIES, MUSCO SPORTS LIGHTING, NORTHROP GRUMMAN, ORENDA AEROSPACE, ROLLS ROYCE – UK, ROLLS ROYCE – US, SCHILLING ROBOTICS, SPIRIT AEROSYSTEMS, UTC AEROSPACE SYSTEMS, U.S. ARMY, U.S AIR FORCE, Evergreen Aviation Precision Corp. (EGAP)
3.5K FORCE
Specification:
- Weight (no Yoke): 1.25(0.56) lb(Kg)
- Fluid Disp Required: 0.55(9) in³ (cc)
- Force At Normal Hyd Pressure: 3480(15.5) Lbf (KN)
- Hydraulic Pressure Normal: 3500(24.1) psi (MPa)
- Hydraulic Pressure MAX: 4500(31) psi (MPa)
- Rivet Set (compression Pin) Travel: 0.55(14) inch(mm)
ZPI-9009
Pneudraulic Intensifier
ZPI-11016
Pneudraulic Intensifier
F14G
Foot Pedal, Guarded
HH18L | 6′(1.8m) Hydraulic Hose Set with coupler |
HH24L | 8′(2.4m) Hydraulic Hose Set with coupler |
HH30L | 10′(3m) Hydraulic Hose Set with coupler |
H18L | 6′(1.8m) Hydraulic Hose Set |
H24L | 8′(2.4m) Hydraulic Hose Set |
H30L | 10′(3m) Hydraulic Hose Set |
* “C” yoke need to purchase separately
Squeezer Model | Rivet Capacity Diameter | Fluid Disp Required in³ (cc) | Force At Normal Hyd Pressure lbf(kN) | Hydraulic Pressure | Rivet Set (compression Pin) Travel inch(mm) | Weight (no Yoke) lbs(kgs) | ||
Alum | Steel | Normal psi(MPa) | MAX psi(MPa) | |||||
Z3000C | 1/8(3.2) | 3/32(2.4) | 0.39(6.4) | 2690(11.9) | 3500(24.1) | 4500(31) | 0.5(12.7) | 1.05(0.47) |
Z3500C | 5/32(4) | 1/8(3.2) | 0.55(9) | 3480(15.5) | 3500(24.1) | 4500(31) | 0.55(14) | 1.25(0.56) |
Z6000C | 3/16(4.8) | 5/32(4) | 0.97(15.9) | 6185(27.5) | 3500(24.1) | 4500(31) | 0.55(14) | 1.72(0.78) |
Z9000C | 1/4(6.4) | 3/16(4.8) | 0.32(21.6) | 8420(37.4) | 3500(24.1) | 4500(31) | 0.55(14) | 2(0.91) |
C-Yoke Squeezer System | Contents included | |||||||
Z3000CK-0 | Z3000C+ZPI-9009 3K SQUEEZER SYSTEM, W/O YOKE | |||||||
Z3500CK-0 | Z3500C+ZPI-11016 3.5K SQUEEZER SYSTEM, W/O YOKE | |||||||
Z6000CK-0 | Z6000C+ZPI-15047F 6K SQUEEZER SYSTEM, W/O YOKE | |||||||
Z9000CK-0 | Z9000C+ZPI-15047F 9K SQUEEZER SYSTEM, W/O YOKE |
*All C-Squeezers accept industry standard CP-214 yokes. *All Squeezers accept rivet dies with 3/16″ (0.187″) shanks.
CP214 Compatible Yoke
Model | Reach | Gap | “A” | “B” | “C” | Thickness |
C030C08 | 0.78″ | 1.1″ | 2.72″ | 2.16″ | 1.12″ | 0.57″ |
C030C09 | 0.9″ | 1.02″ | 3.27″ | 2.69″ | 1.12″ | 0.75″ |
C030C13 | 1.33″ | 1.41″ | 2.72″ | 2.87″ | 1.4″ | 0.57″ |
C030C14 | 1.4″ | 1.02″ | 3.73″ | 3.02″ | 1.4″ | 0.75″ |
C030C15 | 1.5″ | 1.25″ | 2.98″ | 3.39″ | 1.12″ | 0.57″ |
C030C30 | 3″ | 1.25″ | 4.44″ | 3.29″ | 1.12″ | 0.57″ |
C030C40 | 4″ | 1.25″ | 5.89″ | 3.76″ | 1.12″ | 1.83″ |
C030L25 | 2.5″ | 1.25″ | 3.67″ | 3.98″ | 1.12″ | 0.57″ |
Z3028-1 | 1.32″ | 1.5″ | 3.23″ | 3.72″ | 1.4″ | 1″ |
Z3028-2 | 2.07″ | 1.5″ | 4.23″ | 4.22″ | 1.4″ | 1″ |
Z3028-3 | 3.07″ | 1.5″ | 5.23″ | 4.22″ | 1.4″ | 1″ |
Z3028-4 | 4.07″ | 1.5″ | 6.35″ | 4.22″ | 1.4″ | 1″ |
Z3028-5 | 1.49″ | 1.92″ | 3.46″ | 5.68″ | 1.12″ | 1.18″ |
Z3028-6 | 3.53″ | 3.93″ | 6.77″ | 7.09″ | 1.5″ | 1.38″ |
*Please confirm the length of die holder when ordering.
