Z4000A 14 inch Alligator Squeezer

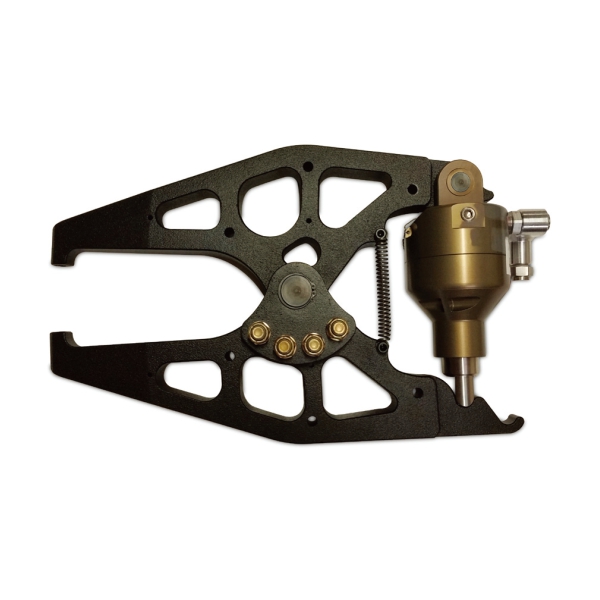

Z4000A 14-inch Alligator Squeezer

The Z4000A 14-inch Alligator Squeezer is a heavy-duty riveting tool specifically engineered for precision and high-pressure applications. It is ideal for aerospace and industrial riveting tasks. With its powerful squeezing action and extended 14-inch reach, this alligator squeezer accommodates a range of rivet sizes, providing excellent accessibility and leverage in challenging assembly areas.

Key Features

• 14-Inch Reach: Extended reach provides access to hard-to-reach areas, enhancing versatility in tight assembly spaces.
• High-Pressure Squeeze: Designed to deliver consistent pressure, ensuring secure and uniform rivet installation.
• Durable Construction: Built with high-quality materials for longevity and resilience, suitable for demanding environments.
• Ergonomic Design: Equipped with comfortable grips to minimize hand strain, allowing for controlled and precise application.

Applications

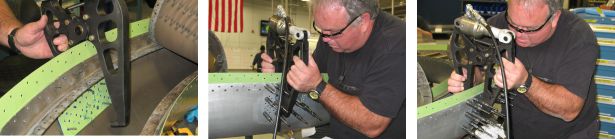

• Aerospace Assembly: Precision and consistent pressure are essential for aircraft panel and structure assembly.
• Automotive Manufacturing: Suitable for frame and bodywork applications requiring strong rivet connections.
• Heavy Equipment Maintenance: Useful for reinforcing or repairing heavy-duty equipment with difficult-to-access rivet points.

The Z4000A 14-inch Alligator Squeezer combines strength, reach, and precision, making it a dependable choice for professionals needing a robust tool to handle rigorous, precision-driven riveting jobs.

Features

• High-quality industrial-grade compression rivet squeezers are used to install solid rivets.
• Compact size and lighter in weight compared to current pneumatic squeezers on the market.
• CONSTANT FORCE over the entire stroke range.
• It is built from high-quality aircraft-grade materials and features held to close tolerances for years of dependable operation.
• Reducing weight and constant force decreases operator fatigue and improves the quality of every riveting work.

Commercial users of these Squeezers

AIRBUS, ALCOA, BARNES AEROSPACE, BEECHCRAFT, BOEING AIRCRAFT, CANADA NATIONAL DEFENCE, DELTA AIRLINES, GE AIRCRAFT ENGINES, HONDA AIRCRAFT, KOREAN AEROSPACE, LODE KING INDUSTRIES, MUSCO SPORTS LIGHTING, NORTHROP GRUMMAN, ORENDA AEROSPACE, ROLLS ROYCE – UK, ROLLS ROYCE – US, SCHILLING ROBOTICS, SPIRIT AeroSystems, UTC AEROSPACE SYSTEMS, U.S. ARMY, U.S AIR FORCE, Evergreen Aviation Precision Corp. (EGAP)

Specification:

• Rivet Capacity Diameter: Alum 3/16(4.8), Steel 5/32(4)
• Force: 6416(28.5) Lbf(KN)
• Reach: 14(355.6) inch(mm)
• Jaw Tip Gap closed: 1.38(35.1) inch(mm)
• Jaw Tip Gap open: 2.45(62.2) inch(mm)
• Jaw Tip Gap extended: 3.65(92.7) inch(mm)
• Net Weight: 25.6(11.61) lbs(kgs)

ZPI-15047F

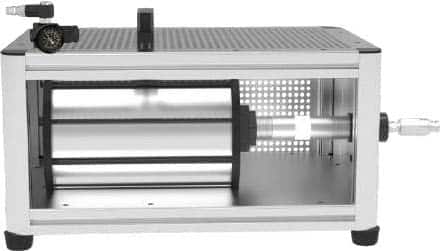

Pneudraulic Intensifier

F14G

Foot Pedal, Guarded

*Alligator tip gaps are without dies installed. *All Squeezers accept rivet dies with 3/16″ (0.187″) shanks.
