Capacity: 60-520 ton
Stroke: 45-50 mm
Maximum Operating Pressure: 700 bar

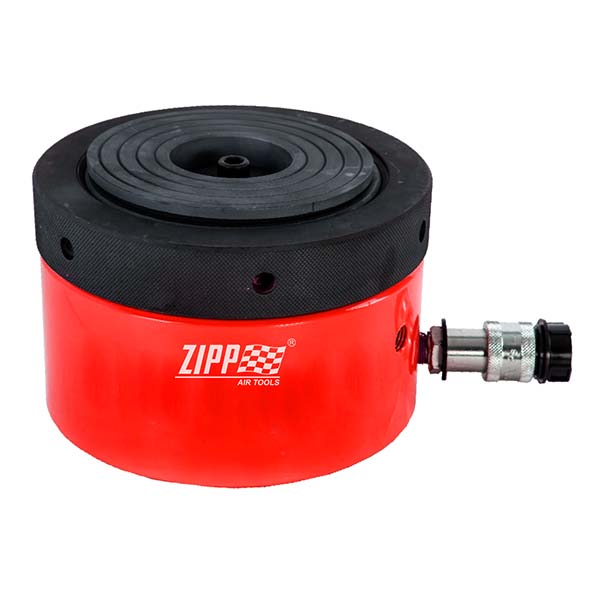

Single-Acting, Low Height, Lock Nut Cylinder
- Low height design for use in confined space.
- Special coating on thread piston and lock ring to prevent anti-seize over long period of time.
- Safety lock ring for mechanical load support even with hydraulic pressure released.
- Equipped with tilt saddle to minimize off center-load.
- Equipped with overflow port to prevent over stroke.
- Equipped with red indicate line to warn operator when cylinder reach full stroke.
- Load return type-for vertical lifting only.
- Powder coat finish for better corrosion resistance.
- All cylinders are equipped with ZSQB-3/8UF female coupler & dust cap.
