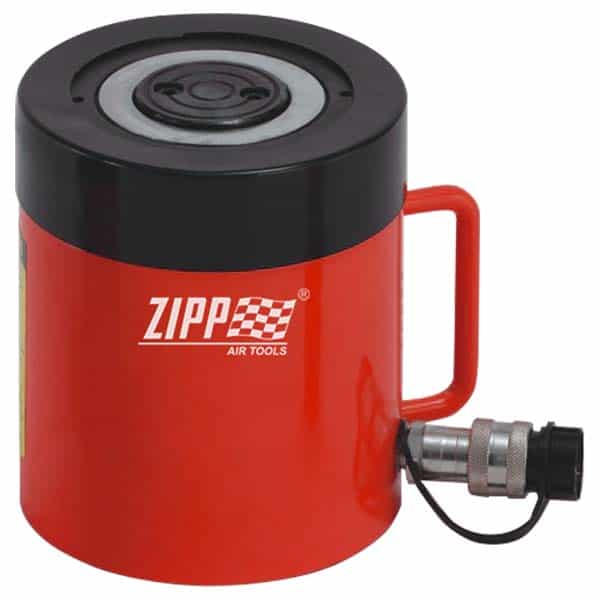

ZRSC Series
Capacity: 5-100 ton
Stroke: 16-362 mm
Maximum Operating Pressure: 700 bar
Single-Acting, Spring return Collar thread Cylinders
- Equip with collar thread and base holes (on most model), for greater flexibility in mounting onto fixture.(see page 16 for details)
- Equip with inner plunger thread (5 ton to 30 ton) for greater flexibility in designing fixture.
- Bronze alloy bearing on plunger to minimize scoring due to off-centre load.
- Hard chrome plated plunger to resists wear and corrosion.
- Inner barrel wall are hard chrome plated to resists wear and corrosion in high humidity atmosphere.
- Equip with wiper seals to prevent ingress of dirt.
- Equip with stop-ring to prevent plunger blow-out and withstands full “Dead-End” load.
- Powder coated finish for greater corrosion protection.
- Equip with plastic cap to protect collar threads.
- Come with ZSQB-3/8UF female coupler & dust cap.
