Capacity: 13-95 ton
Stroke: 8-155 mm
Center Hole Diameter: 19.6-79mm
Maximum Operating Pressure: 700 bar

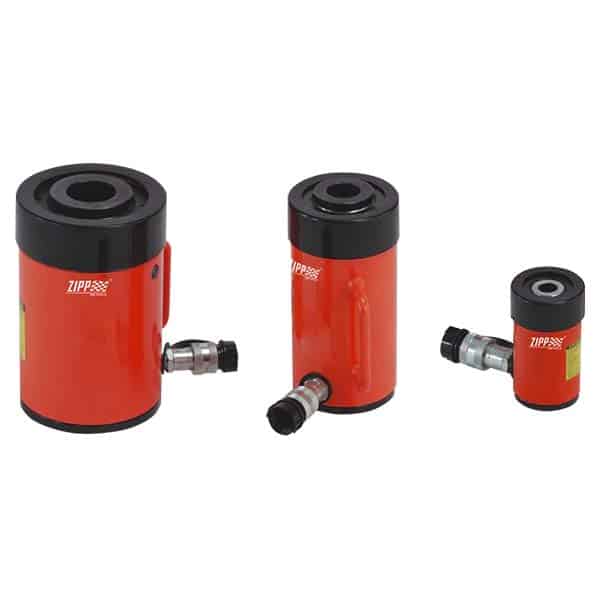

Single-Acting, Hollow Plunger Cylinders
- Hollow plunger design allows for pulling and pushing application.
- Low profile and longer strokes fit in the tightest space.
- Withstands full “dead-end” loads.
- Collar threads for easy fixturing and all collar threads have a cap for protection.
- Special center tube protect plunger and inner of cylinder increases product life.
- Hard chrome plated plunger and inner of barrel resists wear and corrosion.
- Spring returing.
- Wiper rings protect the piston,bore & tube from contamination.
- Stop ring for piston blow-out protection.
- Come with ZSQB-3/8UF female coupler & dust cap.
- Powder coat finish for increased corrosion resistance and antirust.
