ZFSA Series Hydraulic Fixed Flange Alignment Tool
The ZFSA Series Hydraulic Fixed Flange Alignment Tool is a heavy-duty alignment solution engineered to safely and efficiently correct flange misalignment without cutting, heating, or excessive manual force. Designed for pipeline installation, shutdown, maintenance, and industrial repair work, it uses high-pressure hydraulic force to push, pull, or realign flanges with controlled precision. This allows technicians to achieve accurate bolt hole alignment, restore proper gasket seating, and reduce downtime during flange assembly or disassembly. Built with a robust steel body and precision hydraulic components, the ZFSA Series delivers stable, reliable performance under continuous high-load conditions. Its fixed engagement design provides secure attachment to the flange face, ensuring safe, controlled movement even in tight or hazardous work areas. The compact structure and simple setup make it suitable for confined spaces while minimizing operator effort and improving overall jobsite safety. ZFSA Series Hydraulic Fixed Flange Alignment Tool is ideal for petrochemical plants, refineries, power generation facilities, offshore platforms, marine applications, and general industrial piping systems where accurate flange alignment, reduced mechanical stress, improved workflow efficiency, and dependable heavy-duty performance are essential for maintaining safe and leak-free connections.
Key Features
- Hydraulic Operation: This system uses a hydraulic system to apply an even, controlled force, ensuring accurate flange alignment with minimal manual effort. This reduces operator fatigue and enhances safety during alignment.
- Fixed Flange Design: The tool is engineered with a fixed flange design that accommodates various flange sizes and configurations, providing versatility across different applications.
- Robust Construction: Made from high-quality materials, the ZFSA tool offers exceptional durability and resistance to wear, ensuring long-term performance even in harsh environments.
- Precise Alignment: This product features precision-engineered components that ensure accurate flange alignment, minimizing the risk of leaks and mechanical failures in piping systems.
- User-Friendly Interface: The tool’s intuitive controls allow operators to quickly set up and adjust the alignment.
- Compact and Portable: Its lightweight, portable design makes it easy to transport and use in various locations, making it ideal for on-site applications.
- Safety Mechanisms: Incorporates built-in safety features to prevent over-pressurization and ensure safe operation, providing operators with peace of mind.
Applications
- Pipeline Installation: This is essential for aligning flanged connections in pipeline installation projects, ensuring that all components fit together correctly.
- Maintenance and Repair: Used during maintenance and repair operations to realign flanges that may have become misaligned due to wear or external forces.
- Chemical Processing: Ideal for use in chemical processing plants where precise alignment is necessary to maintain the integrity of high-pressure systems.
- Oil and Gas Industry: Commonly employed in oil and gas applications for maintaining and installing pipelines and processing equipment.
- Power Generation: Utilized power plants to align flanges in steam and water piping systems, ensuring efficient operation and safety.
Benefits
- Increased Efficiency: Hydraulic operation significantly speeds up alignment, reducing downtime and increasing productivity in industrial operations.
- Enhanced Accuracy: Precision alignment reduces leaks and operational issues, improving the overall reliability of piping systems.
- Operator Safety: The hydraulic system reduces physical strain on operators and includes safety features that prevent accidental misuse.
- Versatile Usage: It is suitable for a wide range of flange sizes and types, making it a versatile tool for various industries.
- Cost-effectiveness: Investing in a quality alignment tool reduces the likelihood of costly repairs and maintenance due to future misalignment.
The ZFSA Series Hydraulic Fixed Flange Alignment Tool is crucial for professionals involved in piping system installation and maintenance. Its advanced features, coupled with robust construction and ease of use, make it indispensable for achieving precise flange alignment and ensuring the integrity of critical industrial systems.
- Minimum Bolt Size: 16-31.5 mm
- Flange Wall Thickness: 16-31.5 mm
- Capacity: 1-10(10-90) ton(kN)
- Maximum Operating Pressure: 700 bar
(Just for ZSFA-9TE)
Hydraulic Fixed Flange Alignment Tool
- The Flange Alignment tools can align or re-align flange joints during pipework construction, commissioning, or routine maintenance.
- The tool is attached to the flange joint where misalignment is most significant, then pushes and pulls the flanges into the correct alignment (except for ZSFA-9TE).
- The Flange Alignment tools quickly, safely, and without an external power source rectify twist and rotational misalignment.
- Appropriate for use on most ANSI, API, BS, and DIN flanges.
- No slings, hooks, or lifting gear is required.
- It can be installed and used in any orientation (horizontal or vertical).
- Portable, lightweight design enables easy transport and use, even in remote locations.

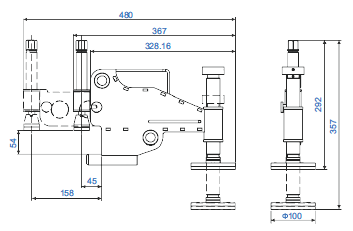

ZFSA-4TM
It is for use on medium-diameter, medium-pressure flanges.
Mechanical Fixed Flange and Rotational Alignment Tool.
ZFSA-9TM
It is for use on larger diameter, higher-pressure flanges.
Mechanical Fixed Flange and Rotational Alignment Tool.
ZFSA-9TE
It is for use on larger diameter, higher-pressure flanges.
Hydraulic Fixed Flange and Rotational Alignment Tool.
| Model Number |
Max. Lifting Force |
Min. Bolt Size |
Flange Wall Thickness (including gap between flanges) |
Weight |
| ton(kN) | inch(mm) | inch(mm) | kg | |
| ZFSA-4TM | 4(40) | 0.95(24) | 1.18-5.23(30-133) | 8.6 |
| ZFSA-9TM | 10(90) | 1.24(31.5) | 3.66-9(93-228) | 16.5 |
| ZFSA-9TE | 10(90) | 1.24(31.5) | 3.66-9(93-228) | 16.5 |
