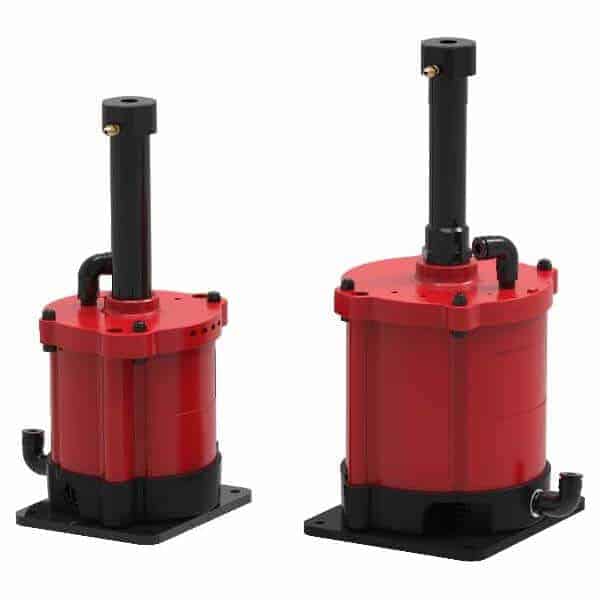

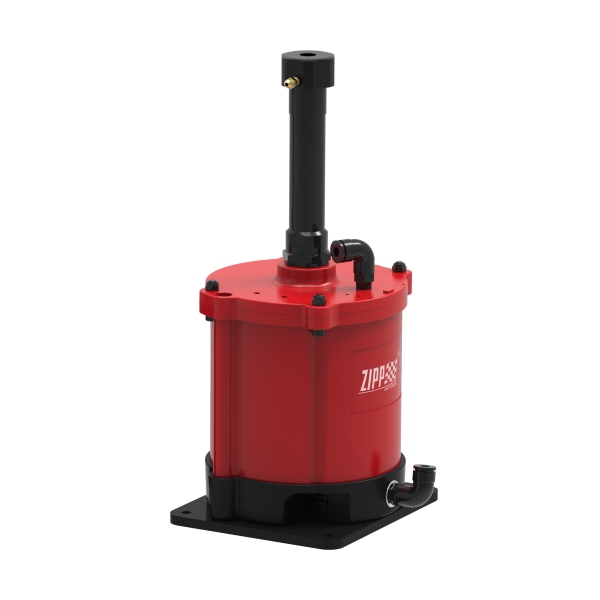

ZPI-11016 Pneudraulic Intensifiers
- These Pneudraulic Intensifier is designed to operate the Model Z3000C and Z3500C C-yoke Rivet Squeezer, or other devices requiring a small volumetric output of high pressure fluid. The unit is a “one shot” intensifier, meaning it will fully displace the hydraulic fluid with one stroke of the air piston in the cylinder. These types of intensifiers tend to be faster than pumping type air operated intensifiers of similar size. The models also allows for “feathering” of the riveter (subtle positioning of the squeezer rivet set), when controlled by a foot operated valve.
- Before using these Pneudraulic Intensifier, please fully read and understand this operation manual.
- Max. Inlet Air Pressure: 90(6.3) psi(kg/cm²)
- Max. Output Hydraulic Pressure: 4267(300) psi (Kg/cm²)
- Delivered Hyd. Fluid Volume: 16 CC
|Model||Max. Inlet Air Pressure|
|Max. Output Hydraulic Pressure|
|Delivered Hyd. Fluid Volume|
