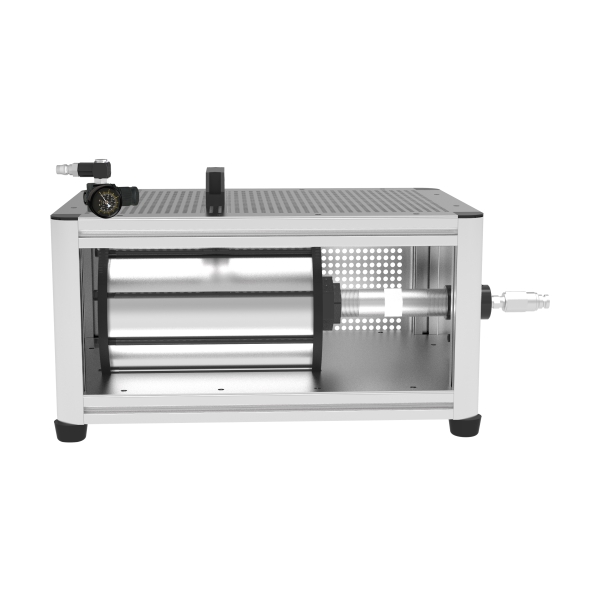

ZPI-15047 – Pneudraulic Intensifier (47cc)





The ZPI-15047 Pneudraulic Intensifier is a high-performance air-to-hydraulic power unit engineered to convert standard compressed air into precise hydraulic output. With a 47cc displacement, it is designed for medium to heavy-duty applications, delivering consistent hydraulic force for pneudraulic riveters, compression rivet squeezers, and other hydraulic tools. Ideal for aerospace, automotive, and industrial assembly, the ZPI-15047 ensures efficient operation, faster cycle times, and reliable performance.





Key Features





• 47cc Hydraulic Displacement – Provides substantial hydraulic output for medium to heavy-duty operations.

• Air-to-Hydraulic Conversion – Efficiently transforms shop air into high hydraulic pressure.

• Compact & Portable – Space-saving design suitable for workstations or mobile setups.

• Durable Construction – High-quality materials ensure long service life under industrial conditions.

• Quick-Connect Hydraulic Ports – Simplifies connection to compatible tools.

• Low-Maintenance Design – Reduces downtime and simplifies routine maintenance.





Advantages & Benefits





• High Hydraulic Power – Delivers stable, repeatable force for precise riveting and squeezing.

• Increased Productivity – Faster cycle times and reliable operation enhance workflow efficiency.

• Operator-Friendly – Reduces manual effort and improves comfort during repetitive tasks.

• Durable & Reliable – Long-lasting design ensures consistent performance in demanding applications.

• Versatile Compatibility – Works with a wide range of ZIPP riveters, squeezers, and hydraulic tools.

• Cost-Effective Solution – Eliminates the need for large, complex hydraulic power units.





Applications





• Aerospace Manufacturing & Maintenance – Provides precise hydraulic power for riveters and squeezers.

• Automotive Industry – Supports medium- to heavy-duty fastening and assembly operations.

• Shipbuilding & Rail Fabrication – Delivers consistent power for structural riveting and joining tasks.

• Industrial Fabrication – Powers hydraulic tools for metalworking and assembly lines.

• Portable and On-Site Operations – Compact design allows field use and flexible integration.





Why Choose the ZPI-15047?





The ZPI-15047 Pneudraulic Intensifier is engineered for strength, precision, and portability. Its 47cc hydraulic displacement provides a perfect balance of force and control for medium- to heavy-duty riveting and compression tasks. Reliable, compact, and versatile, the ZPI-15047 ensures consistent, high-quality results in industrial, aerospace, and automotive environments, making it an essential tool for demanding applications.





Features





• The ZIPP Pneudraulic Intensifier is designed to operate ZIPP Rivet C-Squeezers, such as the Model Z6000C (6K force) and Model Z9000C (9K force), as well as the Model Z5000A, Z7000A, and Z9000A Alligator Squeezers. It can also operate other devices requiring a small volumetric output of high-pressure fluid. The unit is a “one-shot” intensifier, meaning it will entirely displace the hydraulic fluid with one stroke of the air piston in the cylinder. These types of intensifiers tend to be faster than pumping-type air-operated intensifiers of similar size. These models also allow for “feathering” of the riveter (subtle positioning of the squeezer rivet set) when controlled by a foot-operated valve.
• Optional electrical module. Upgrades are available upon request.
• A portable intensifier instead of a high-cost hydraulic power unit.
• Low operating hydraulic pressure design for a more durable hydraulic sealing mechanism.
• Custom designs are welcome.
• Before using these Intensifiers, please read and understand this operation manual thoroughly.

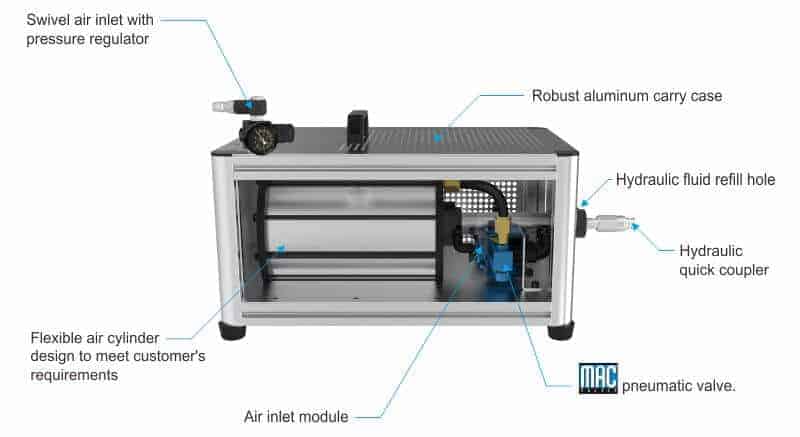

• Swivel air inlet with pressure regulator
• Robust aluminum carry case
• Hydraulic fluid refill hole
• Hydraulic quick coupler
• Flexible air cylinder design to meet customers’ requirements
• Air inlet module
• pneumatic valve





Specification:





• Max. Inlet Air Pressure: 90(6.3) psi(kg/cm²)
• Max. Output Hydraulic Pressure: 5760(403) psi (Kg/cm²)
• Delivered Hyd. Fluid Volume: 785 CC





Model	Max. Inlet Air Pressure psi(kg/cm²)	Max. Output Hydraulic Pressure psi(kg/cm²)	Delivered Hyd. Fluid Volume CC
ZPI-10017	90(6.3)	5556(389)	17
ZPI-12525	90(6.3)	5493(385)	25
ZPI-15047	90(6.3)	5062(354)	47
*ZPI-15047F	90(6.3)	5062(354)	47
ZPI-18081	90(6.3)	5062(354)	81
*ZPI-18081F	90(6.3)	5062(354)	81
ZPI-20098	90(6.3)	5760(403)	98
ZPI-300377	90(6.3)	5062(354)	377
ZPI-400785	90(6.3)	5760(403)	785

*ZPI-15047F, ZPI-18081F For use with hydraulic squeezers w/ foot valve.
