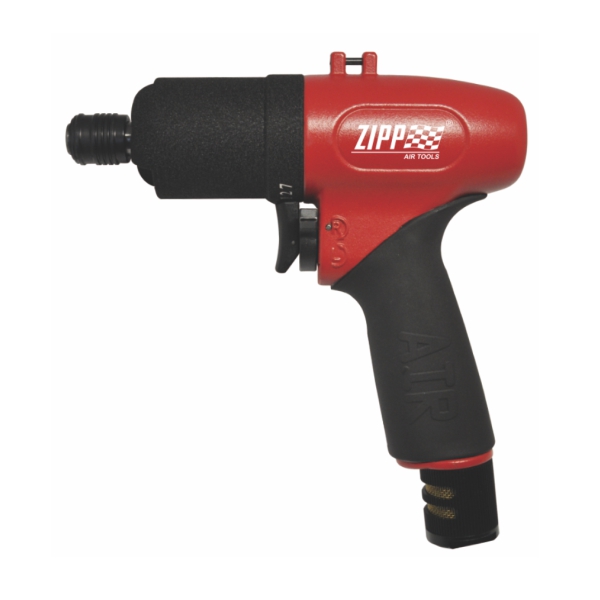

PN062 Pulse Screwdriver

PN062 Pulse Screwdriver / Pistol Type, Non Shut-Off Type

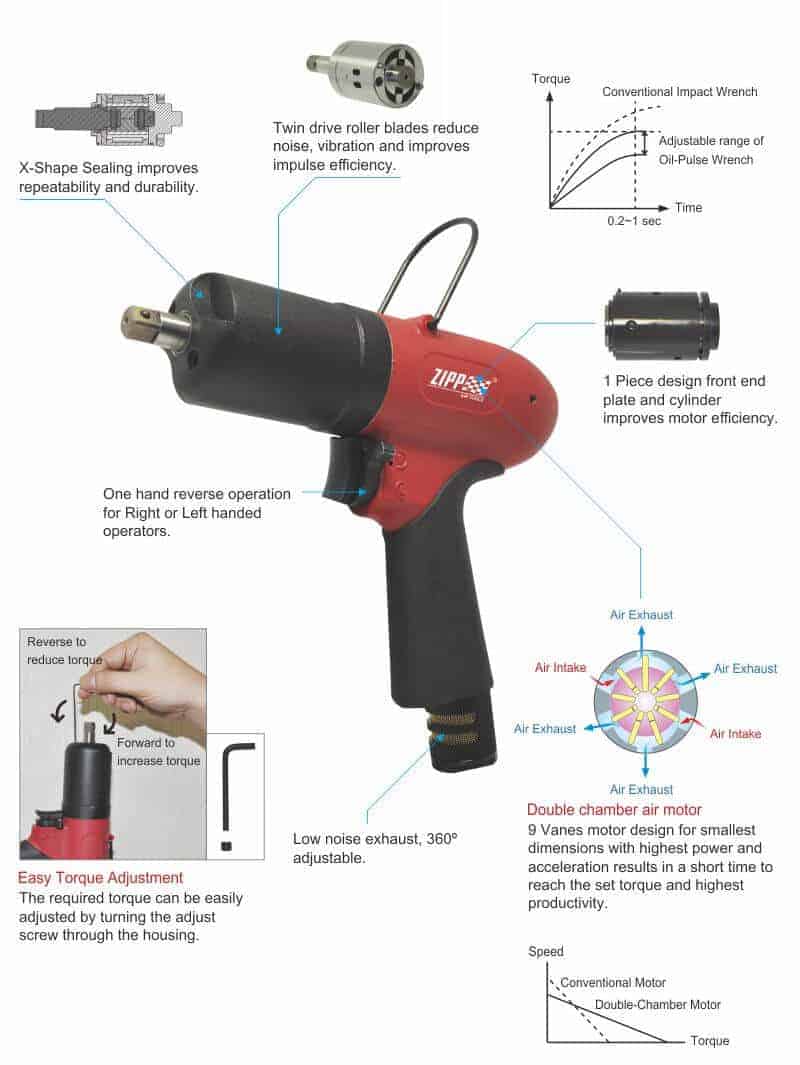

• X-Shape Sealing improves repeatability and durability.
• Twin drive roller blades reduce noise, vibration and improves impulse efficiency.
• 1 Piece design front end plate and cylinder improves motor efficiency.
• Double chamber air motor
  9 Vanes motor design for smallest dimensions with highest power and acceleration results in a short time to reach the set torque and highest The required torque can be easily productivity.
• One hand reverse operation for Right or Left handed operators.
• Low noise exhaust, 360º adjustable.
• Easy Torque Adjustment
  The required torque can be easily adjusted by turning the adjust screw through the housing.

Specification:

• Hex Drive: 1/4″ HEX
• Bolt Capacity: M6~M8
• Measured on Hard Joint
  Min. Oil Pressure / 0.4MPa: 17(12.5) Nm(Lb-ft)
  Min. Oil Pressure / 0.5MPa: 20(14.8) Nm(Lb-ft)
  Min. Oil Pressure / 0.6MPa: 23(17) Nm(Lb-ft)
  Max. Oil Pressure / 0.4MPa: 24(17.7) Nm(Lb-ft)
  Max. Oil Pressure / 0.5MPa: 27(19.9) Nm(Lb-ft)
  Max. Oil Pressure / 0.6MPa: 30(22.1) Nm(Lb-ft)

• Free Speed: 6000 rpm
• Air Cons.: 0.43 m³/min
• Noise Level: 85 dB(A)
• Net Weight: 0.94 kg
• Air Inlet Size: NPT 1/4″

• Recommended Gauge Air Pressure: 60~90psi(4kg/cm²~6kg/cm² )(0.4Mpa~0.6Mpa)

• Air Hose Size: 10mm x 6.5mm (for 042~062 model ), 12mm x 8mm (for 072 model)

• Above DATA Are All Measured At 4kg/cm²~6kg/cm² Gauge Air Pressure
