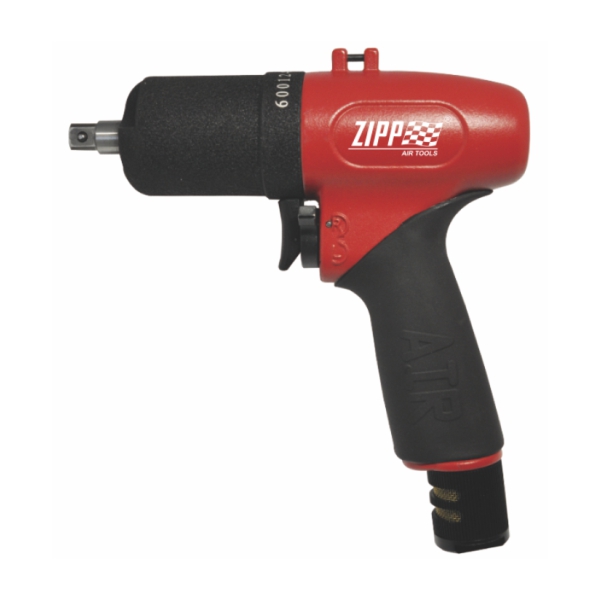

PN063 Pulse Wrench – Pistol Type, Non-Shut-Off Type

PN063 Pulse Wrench – Pistol Type, Non-Shut-Off Type

The PN063 Pulse Wrench – Pistol Type, Non-Shut-Off Type is a robust, high-performing fastening tool designed for industrial applications requiring efficiency, power, and precision. With its ergonomic pistol-grip design and pulse technology, this wrench delivers smooth torque output with minimal reaction forces. It is ideal for applications that demand repetitive fastening or use in medium to heavy-duty assembly tasks.

Key Features

1. Non-Shut-Off Mechanism
   Allows continuous operation for tasks requiring manual control over the fastening process, giving the operator complete flexibility and control.
2. Ergonomic Pistol-Grip Design
   Designed for comfort and ease of use, the pistol grip ensures optimal handling and reduces operator fatigue, even during extended use.
3. Pulse Technology
   Produces consistent and smooth torque with reduced kickback, enhancing operator safety and accuracy while minimizing joint stress.
4. Durable and Compact Construction
   Built with industrial-grade materials, the wrench withstands harsh conditions while maintaining a lightweight and compact design for ease of use.
5. Quiet and Low Vibration Operation
   Engineered to operate with reduced noise and vibration, promoting a safer and more comfortable working environment.
6. Adjustable Torque Settings
   Enables precise torque adjustments for various fastening requirements, improving efficiency and versatility in diverse applications.

Advantages

• Enhanced Control: The non-shut-off mechanism allows operators to control the tightening process more precisely.
• Operator Comfort: Pistol-grip design and reduced reaction forces minimize fatigue, even in demanding or repetitive tasks.
• Reliability: High-quality materials and precision engineering ensure consistent, long-lasting performance.
• Flexibility: Adjustable torque settings and non-shut-off functionality make this wrench suitable for various applications.
• Environment-Friendly Operation: Low noise and vibration levels improve workplace conditions.

Applications

• Automotive Manufacturing: Ideal for assembling chassis components, body frames, and other critical parts requiring controlled torque.
• Aerospace Assembly: Ensures smooth and precise fastening of structural components and sensitive parts.
• Industrial Machinery: Perfect for assembling heavy-duty equipment and mechanical systems.
• General Manufacturing & Maintenance: Versatile tool for assembly lines, maintenance tasks, and repairs in diverse industries.

Why Choose the PN063 Pulse Wrench?

The PN063 Pulse Wrench — Pistol Type, Non-Shut-Off Type combines power, precision, and ergonomics to meet the demands of industrial fastening. Its pulse technology reduces reaction forces, providing smooth and efficient operation, while the ergonomic pistol grip ensures operator comfort. Whether for assembly, maintenance, or repair, this tool delivers reliable, high-quality performance across various applications.

• X-shape sealing improves repeatability and durability.
• Twin-drive roller blades reduce noise and vibration and improve impulse efficiency.
• 1 Piece design front end plate and cylinder improves motor efficiency.
• Double chamber air motor
  9 Vanes motor design for the most diminutive dimensions with the highest power and acceleration results in a short time to reach the set torque and highest. The required torque can be efficiently productive.
• One-hand reverse operation for Right or left-handed operators.
• Low noise exhaust, 360º adjustable.
• Easy Torque Adjustment
  The required torque can be easily adjusted by turning the adjust screw through the housing.

Specification:

• Hex Drive: 3/8″ SD
• Bolt Capacity: M8 ~ M10
• Measured on Hard Joint
  Min. Oil Pressure / 0.4 MPa: 20 (14.8) Nm (Lb-ft)
  Min. Oil Pressure / 0.5 MPa: 23 (17) Nm (Lb-ft)
  Min. Oil Pressure / 0.6 MPa: 26 (19.2) Nm (Lb-ft)
  Max. Oil Pressure / 0.4 MPa: 28 (20.7) Nm (Lb-ft)
  Max. Oil Pressure / 0.5 MPa: 31 (22.9) Nm (Lb-ft)
  Max. Oil Pressure / 0.6 MPa: 34 (25.1) Nm (Lb-ft)

• Free Speed: 5800 rpm
• Air Cons.: 0.43 m³/min
• Noise Level: 85 dB(A)
• Net Weight: 0.94 kg
• Air Inlet Size: NPT 1/4″

• Recommended Gauge Air Pressure: 60 ~ 90psi (4kg/cm²~6kg/cm²) (0.4MPa ~ 0.6MPa)

• Air Hose Size: 10mm x 6.5mm (For 043~063 models), 12mm x 8mm (For 073 ~ 094 models)

• The above data are all measured at 4kg/cm² ~ 6kg/cm² Gauge Air Pressure
