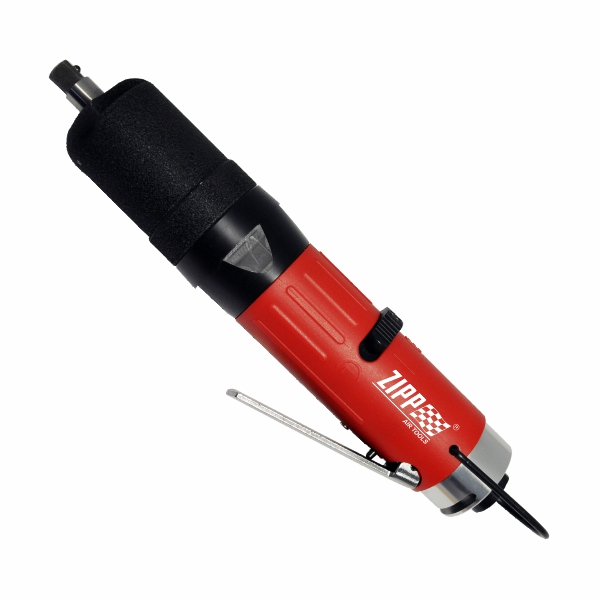

SN063 Pulse Wrench – Inline, Non-Shut-Off Type
The SN063 Pulse Wrench – Inline Type is a high-precision fastening tool designed to deliver consistent torque and optimal performance for industrial assembly applications. Its inline configuration offers ergonomic handling and enhanced accuracy, making it ideal for repetitive fastening tasks where precision is critical. With advanced pulse technology, this wrench minimizes reaction force, reduces operator fatigue, and ensures superior joint integrity, making it a reliable choice for aerospace, automotive, and electronic manufacturing industries.
Key Features
- Pulse Technology
- Provides smooth and controlled torque application, reducing reaction forces.
- It is ideal for maintaining joint integrity without over-torqueing.
- Inline Design
- The straight configuration ensures ease of alignment during operation.
- Compact and lightweight for improved maneuverability in tight spaces.
- Consistent Torque Output
- Delivers precise and repeatable torque for critical fastening tasks.
- Eliminates the need for rework or calibration after repeated use.
- Ergonomic Handling
- Designed for operator comfort with reduced vibration and noise.
- Ensures fatigue-free operation during extended work shifts.
- Durable Construction
- Built with high-quality materials to withstand rigorous industrial use.
- Low-maintenance design for enhanced productivity.
Applications
- Aerospace Assembly
- Perfect for assembling delicate components with precise torque requirements.
- Ensures secure fastening in critical areas without damaging sensitive parts.
- Automotive Manufacturing
- Ideal for fastening bolts and screws in engine components and chassis.
- Supports high-speed production lines with consistent results.
- Electronics Industry
- Suitable for assembling circuit boards, casings, and other small components.
- Provides accurate torque control to prevent overtightening.
- General Industrial Assembly
- Reliable for tasks requiring repetitive fastening of bolts and screws.
- Ensures uniform clamping force across multiple applications.
Advantages
- Precision Fastening: Ensures accurate torque delivery for critical joints.
- Low Reaction Force: The pulse mechanism minimizes the operator’s hand and wrist strain.
- Compact Inline Design: Streamlined shape improves accessibility in confined areas.
- Reduced Noise and Vibration: Enhances operator comfort and safety.
- Long-Lasting Performance: Durable construction ensures longevity in high-use environments.
Why Choose the SN063 Pulse Wrench – Inline Type?
The SN063 Pulse Wrench – Inline Type is a dependable solution for professionals requiring precision, speed, and reliability in their fastening applications. Its advanced pulse technology, ergonomic design, and consistent torque output make it an essential tool for industries prioritizing efficiency and joint integrity. Whether in high-speed production lines or precision assembly environments, the SN063 offers unmatched performance and ease of use.
- X-shape sealing improves repeatability and durability.
- Twin-drive roller blades reduce noise and vibration and improve impulse efficiency.
- 1 Piece design front end plate and cylinder improves motor efficiency.
- Double chamber air motor
9 Vanes motor design for the most diminutive dimensions with the highest power and acceleration results in a short time to reach the set torque and highest. The required torque can be efficiently productive. - One-hand reverse operation for Right or left-handed operators.
- Low noise exhaust, 360º adjustable.
- Easy Torque Adjustment
The required torque can be easily adjusted by turning the adjust screw through the housing.
Specification:
- Hex Drive: 3/8″ SD
- Bolt Capacity: M8 ~ M10
- Measured on Hard Joint
Min. Oil Pressure / 0.4 MPa: 20 (14.8) Nm (Lb-ft)
Min. Oil Pressure / 0.5 MPa: 23 (17) Nm (Lb-ft)
Min. Oil Pressure / 0.6 MPa: 26 (19.2) Nm (Lb-ft)
Max. Oil Pressure / 0.4 MPa: 28 (20.7) Nm (Lb-ft)
Max. Oil Pressure / 0.5 MPa: 31 (22.9) Nm (Lb-ft)
Max. Oil Pressure / 0.6 MPa: 34 (25.1) Nm (Lb-ft)
- Free Speed: 6000 rpm
- Air Cons.: 0.4 m3/min
- Noise Level: 85 dB(A)
- Net Weight: 0.88 kg
- Air Inlet Size: NPT 1/4″
- Recommended gauge air pressure: 60 ~ 90psi (4kg/cm² ~ 6kg/cm²) (0.4Mpa ~ 0.6Mpa)
- Air Hose Size: 10mm x 6.5mm (For 043 ~ 063 model), (For 073 ~ 084 model)
- Above DATA are all Measured at 4kg/cm² ~ 6kg/cm² Gauge Air Pressure
| Model | Square Drive |
Bolt Capacity mm |
Measured on Hard Joint / Nm(Lb-ft) | Free Speed rpm |
Air Cons. m³/min |
Noise Level dB(A) |
Net Weight kg |
|||||
| Min. Oil Pressure | Max. Oil Pressure | |||||||||||
| 0.4MPa | 0.5MPa | 0.6MPa | 0.4MPa | 0.5MPa | 0.6MPa | |||||||
| SS043 | 3/8″SD | M4~M6 | 5(3.7) | 6(4.4) | 7(5.2) | 10(7.4) | 11(8.1) | 12(8.9) | 4500 | 0.4 | 80 | 0.87 |
| SS053 | 3/8″SD | M6~M8 | 10(7.4) | 11(8.1) | 12(8.9) | 20(14.8) | 20(14.8) | 23(17) | 6000 | 0.4 | 85 | 0.85 |
| SS063 | 3/8″SD | M6~M8 | 11(8.1) | 12(8.9) | 13(9.6) | 20(14.8) | 22(16.2) | 25(18.4) | 6000 | 0.4 | 85 | 0.88 |
| SS073 | 3/8″SD | M8~M10 | 20(14.8) | 20(14.8) | 23(17) | 36(26.6) | 39(28.8) | 42(31) | 6000 | 0.45 | 88 | 1.29 |
| SS084 | 1/2″SD | M10~M12 | 6000 | 0.45 | 88 | 1.3 | ||||||
| SN043 | 3/8″SD | M6~M8 | 9(6.6) | 11(8.1) | 13(9.6) | 13(9.6) | 15(11.1) | 17(12.5) | 5600 | 0.4 | 80 | 0.87 |
| SN053 | 3/8″SD | M6~M8 | 15(11.1) | 18(13.3) | 21(15.5) | 19(14) | 22(16.2) | 25(18.4) | 6000 | 0.4 | 85 | 0.85 |
| SN063 | 3/8″SD | M8~M10 | 20(14.8) | 23(17) | 26(19.2) | 28(20.7) | 31(22.9) | 34(25.1) | 6000 | 0.4 | 85 | 0.88 |
| SN073 | 3/8″SD | M8~M10 | 28(20.7) | 31(22.9) | 34(25.1) | 42(31) | 45(33.2) | 48(35.4) | 6000 | 0.45 | 88 | 1.29 |
| SN084 | 1/2″SD | M10~M12 | 35(25.8) | 38(28) | 41(30.2) | 51(37.6) | 54(39.8) | 57(42) | 6000 | 0.45 | 88 | 1.3 |
