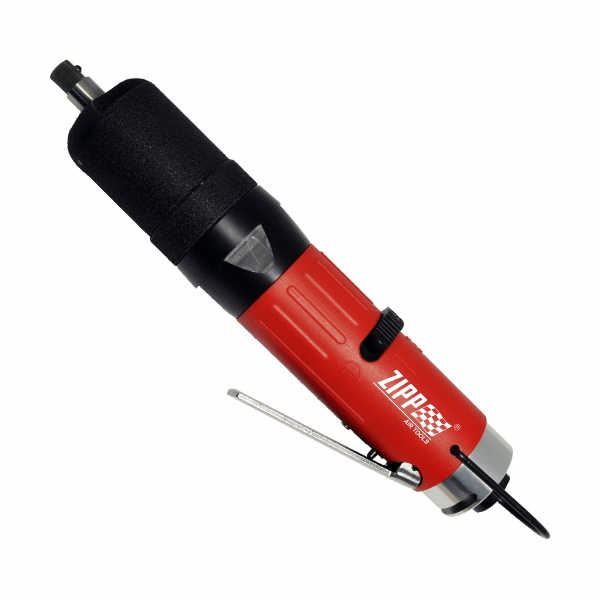

SN073 Pulse Wrench – Inline Type, Non-Shut-Off Type

SN073 pulse Wrench – Inline Type, Non-Shut-Off Type

The SN073 Pulse Wrench – Inline Type, Non-Shut-Off Type is a high-performance tool engineered for precision fastening in industrial environments. Designed with an inline configuration and a non-shut-off mechanism, this tool delivers consistent torque with operator control, making it ideal for various assembly applications. Its pulse technology ensures smooth operation, reducing reaction forces and enhancing user safety and comfort.

Key Features

1. Non-Shut-Off Mechanism
   • Offers manual control over the stopping point of the fastening operation.
   • Suitable for applications requiring operator discretion for torque adjustments.
2. Pulse Technology
   • Reduces reaction forces, ensuring minimal strain on the user.
   • It prevents over-torqueing and protects fasteners and components from damage.
3. Inline Configuration
   • Straight design for efficient handling and alignment during operation.
   • Perfect for working in tight or confined spaces.
4. Durable and Lightweight Construction
   • Made with high-quality materials for long-lasting performance in tough environments.
   • Lightweight design reduces operator fatigue during prolonged use.
5. Ergonomic Design
   • Low noise and vibration levels enhance user comfort.
   • Well-balanced structure for ease of use and productivity.

Applications

• Automotive Industry
  • It is ideal for assembling engine components, suspension systems, and body panels.
  • Ensures precise torque control for critical fasteners.
• Aerospace Assembly
  • Suitable for precision fastening of lightweight and sensitive materials.
  • Reliable performance in assembly lines requiring operator-controlled torque.
• Heavy Machinery Manufacturing
  • Efficient for securing large bolts and fasteners.
  • Reduces wear and tear on components during repetitive tasks.
• General Assembly Lines
  • A versatile tool for various fastening tasks requiring manual torque control.

Advantages

• Operator Control: The non-shut-off mechanism allows flexibility for complex or varied tasks.
• Enhanced Safety: Pulse technology minimizes reaction forces, ensuring smoother operation.
• Compact Design: Inline configuration and lightweight build suit tight spaces.
• Precision and Durability: Consistent torque delivery with robust construction for long-term reliability.
• Ergonomic Operation: Designed for comfort during extended use with minimal fatigue.

Why Choose the SN073 Pulse Wrench – Inline Type, Non-Shut-Off Type?

The SN073 Pulse Wrench is tailored for industry professionals who demand precise and flexible fastening solutions. Its operator-controlled non-shut-off design accommodates a variety of applications, from automotive to aerospace. Pulse technology and ergonomic design ensure safety, efficiency, and reliability, making it a valuable tool for demanding assembly tasks.

• X-shape sealing improves repeatability and durability.
• Twin-drive roller blades reduce noise and vibration and improve impulse efficiency.
• The one-piece design of the front end plate and cylinder improves motor efficiency.
• Double chamber air motor
  9 Vanes motor design for the most diminutive dimensions with the highest power and acceleration results in a short time to reach the set torque and highest. The required torque can be efficiently productive.
• One-hand reverse operation for Right or left-handed operators.
• Low noise exhaust, 360º adjustable.
• Easy Torque Adjustment
  The required torque can be easily adjusted by turning the adjust screw through the housing.

Specification:

• Hex Drive: 3/8″ SD
• Bolt Capacity: M8 ~ M10
• Measured on Hard Joint
  Min. Oil Pressure / 0.4 MPa: 28 (20.7) Nm (Lb-ft)
  Min. Oil Pressure / 0.5 MPa: 31 (22.9) Nm (Lb-ft)
  Min. Oil Pressure / 0.6 MPa: 34 (25.1) Nm (Lb-ft)
  Max. Oil Pressure / 0.4 MPa: 42 (31) Nm (Lb-ft)
  Max. Oil Pressure / 0.5 MPa: 45 (33.2) Nm (Lb-ft)
  Max. Oil Pressure / 0.6 MPa: 48 (35.4) Nm (Lb-ft)

• Free Speed: 6000 rpm
• Air Cons.: 0.45 m³/min
• Noise Level: 88 dB(A)
• Net Weight: 1.29 kg
• Air Inlet Size: NPT 1/4″

• Recommended Gauge Air Pressure: 60 ~ 90psi (4kg/cm² ~ 6kg/cm²) (0.4MPa ~ 0.6MPa)
• Air Hose Size: 10mm x 6.5mm (For 043 ~ 063 models), (For 073 ~ 084 models)
• The above data are all measured at 4kg/cm² ~ 6kg/cm² Gauge Air Pressure
