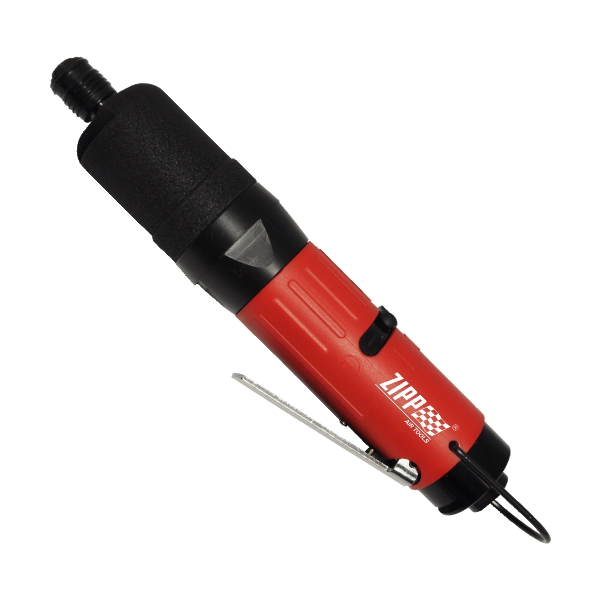

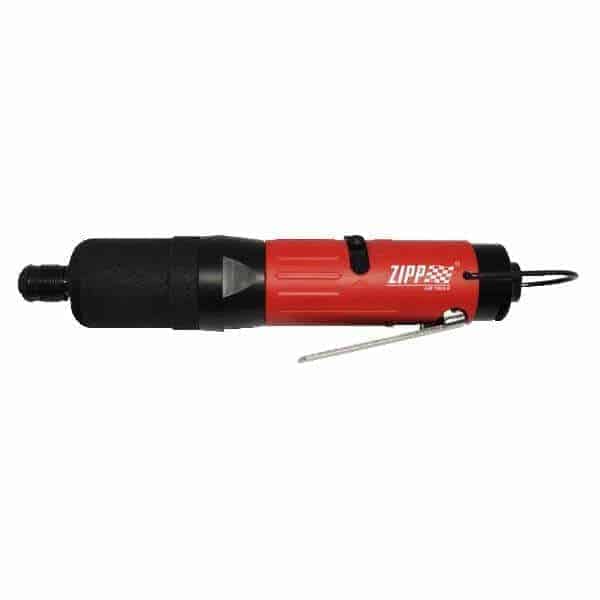

SS052 Pulse Screwdriver – Inline Type, Auto Shut-Off Type

SS052 Pulse Screwdriver – Inline Type, Auto Shut-Off Type

The SS052 Pulse Screwdriver combines precision fastening technology with an automatic shut-off feature, ensuring accurate torque application in demanding industrial settings. This inline-type screwdriver is engineered for operator ease and efficiency, making it an excellent choice for assembly lines where speed, accuracy, and reliability are essential.

Key Features:

1. Auto Shut-Off Mechanism
   • Automatically stops when the preset torque is reached, preventing over-tightening.
   • Ensures consistent torque delivery for high-quality fastening results.
2. Pulse Technology
   • Delivers smooth, consistent torque with minimal reaction force.
   • Reduces noise and vibration, improving operator comfort during extended use.
3. Ergonomic Inline Design
   • Straight configuration for precise control in confined spaces.
   • Lightweight design minimizes operator fatigue in high-volume operations.
4. Low Noise and Vibration
   • Advanced pulse mechanism reduces operational noise and vibration, ensuring a more comfortable working environment.
5. Robust Construction
   • Manufactured with high-grade materials to endure rigorous industrial use.

Specifications:

• Torque Range: Engineered for medium to high-torque applications with adjustable settings.
• Shut-Off System: Automatic for consistent fastening results.
• Weight: Compact and lightweight for prolonged usability.
• Noise Level: Designed for low-noise operation to comply with workplace safety standards.
• Air Consumption: Optimized for efficiency to minimize energy costs.

Applications:

1. Automotive Industry
   • Perfect for fastening components where precision torque control is crucial.
2. Electronics Manufacturing
   • It is ideal for delicate assemblies requiring consistent torque application.
3. Appliance Assembly
   • Supports accurate fastening in high-speed production environments.
4. General Manufacturing
   • A versatile tool for various industrial fastening tasks.

Benefits of the SS052 Pulse Screwdriver:

• Automatic shut-off ensures consistent quality and prevents fastener damage.
• Ergonomic design improves handling and reduces operator strain.
• Low noise and vibration levels enhance workplace safety and comfort.
• Durable build ensures long service life in challenging environments.

The SS052 Pulse Screwdriver offers unmatched precision and efficiency, making it a valuable addition to any production line. Its advanced features and robust performance give operators the confidence always to achieve perfect fastening results.

• X-shape sealing improves repeatability and durability.
• Twin-drive roller blades reduce noise and vibration and improve impulse efficiency.
• 1 Piece design front end plate and cylinder improves motor efficiency.
• Double chamber air motor
  9 Vanes motor design for the most diminutive dimensions with the highest power and acceleration results in a short time to reach the set torque and highest. The required torque can be efficiently productive.
• One-hand reverse operation for Right or left-handed operators.
• Low noise exhaust, 360º adjustable.
• Easy Torque Adjustment
  The required torque can be easily adjusted by turning the adjust screw through the housing.

Specification:

• Hex Drive: 1/4″ HEX
• Bolt Capacity: M5 ~ M8
• Measured on Hard Joint
  Min. Oil Pressure / 0.4 MPa: 7 (5.2) Nm (Lb-ft)
  Min. Oil Pressure / 0.5 MPa: 8 (5.9) Nm (Lb-ft)
  Min. Oil Pressure / 0.6 MPa: 9 (6.6) Nm (Lb-ft)
  Max. Oil Pressure / 0.4 MPa:17 (12.5) Nm (Lb-ft)
  Max. Oil Pressure / 0.5 MPa: 17 (12.5) Nm (Lb-ft)
  Max. Oil Pressure / 0.6 MPa: 19 (14) Nm (Lb-ft)

• Free Speed: 6000 rpm
• Air Cons.: 0.4 m³/min
• Noise Level: 85 dB(A)
• Net Weight: 0.85 kg
• Air Inlet Size: NPT 1/4″

• Recommended Gauge Air Pressure: 60 ~ 90psi (4kg/cm² ~ 6kg/cm²) (0.4Mpa ~ 0.6Mpa)

• Air Hose Size: 10mm x 6.5mm (for 042 ~ 062 model), (for 072 model)

• Above DATA Are All Measured At 4kg/cm² ~ 6kg/cm² Gauge Air Pressure
