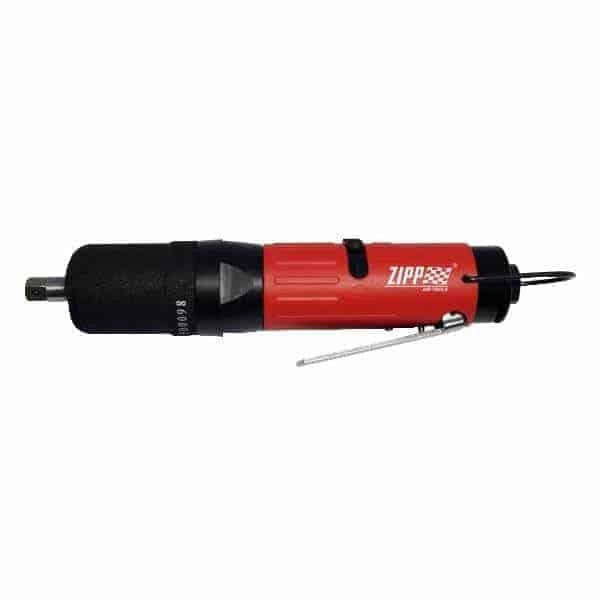

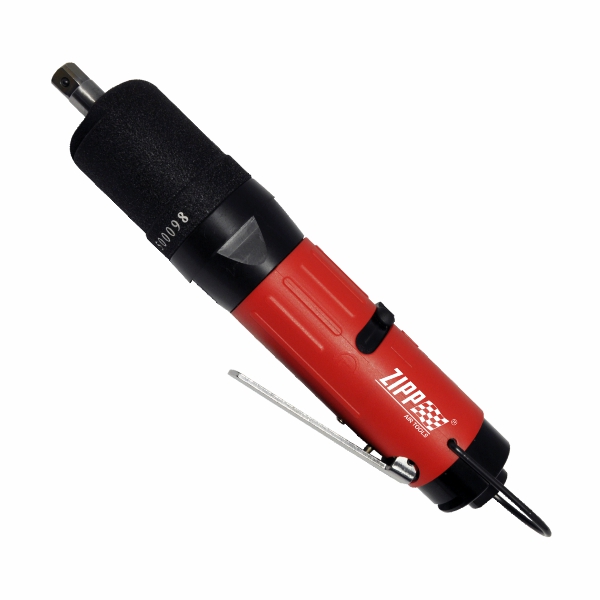

SS063 Pulse Wrench – Inline Type, Auto Shut-Off Type

SS063 Pulse Wrench – Inline Type, Auto Shut-Off Type

The SS063 Pulse Wrench – Inline Type, Auto Shut-Off Type is a high-precision, ergonomically designed fastening tool engineered for industrial applications that require consistent torque control. Featuring advanced pulse technology and an integrated auto shut-off mechanism, this wrench ensures accuracy, efficiency, and user safety in demanding environments. Its compact and lightweight inline configuration makes it ideal for confined spaces and repetitive assembly tasks.

Key Features

1. Auto Shut-Off Mechanism
   It automatically stops once the pre-set torque level is reached, ensuring precise fastening and protecting components from overtightening or stripping.
2. Compact Inline Design
   The streamlined, inline configuration offers easy handling and exceptional control, making it well-suited for tight spaces or awkward positions.
3. Pulse Technology for Reduced Reaction Forces
   Generates smooth and consistent torque with minimal kickback, reducing operator fatigue and increasing comfort during extended use.
4. Durable Construction
   Manufactured from high-strength, industrial-grade materials for superior durability and long-lasting performance in harsh working environments.
5. Low Noise and Vibration Output
   Operates with reduced noise and vibration levels, contributing to a safer and more comfortable working environment for operators.
6. Adjustable Torque Settings
   Enables precise torque customization to suit various fastening applications, enhancing versatility and adaptability across industries.

Advantages

• Accuracy & Consistency: The auto shut-off feature ensures uniform torque application, improving product quality.
• Operator Comfort: Reduced reaction forces and ergonomic design minimize fatigue and discomfort during prolonged use.
• Reliability: Durable components ensure the wrench delivers consistent performance over its lifespan, even in demanding environments.
• Versatility: Adjustable torque and compact design suit various tasks across multiple industries.

Applications

• Automotive Industry: Assembly of critical components such as engines, transmissions, and suspension systems.
• Aerospace Manufacturing: Precision fastening for aircraft structures and components requiring exact torque control.
• Electronics Assembly: Securing delicate components with controlled torque to avoid damage.
• General Manufacturing: Ideal for repetitive fastening tasks on production lines, maintenance operations, and repair applications.

The SS063 Pulse Wrench — Inline Type, Auto Shut-Off Type delivers precision, reliability, and operator safety, making it indispensable for industries that demand high standards of quality and efficiency. Its compact, lightweight design and advanced features ensure smooth performance and consistent results in even the most challenging applications.

• X-shape sealing improves repeatability and durability.
• Twin-drive roller blades reduce noise and vibration and improve impulse efficiency.
• 1 Piece design front end plate and cylinder improves motor efficiency.
• Double chamber air motor
  9 Vanes motor design for the most diminutive dimensions with the highest power and acceleration results in a short time to reach the set torque and highest. The required torque can be efficiently productive.
• One-hand reverse operation for Right or left-handed operators.
• Low noise exhaust, 360º adjustable.
• Easy Torque Adjustment
  The required torque can be easily adjusted by turning the adjust screw through the housing.

Specification:

• Hex Drive: 3/8″ SD
• Bolt Capacity: M6 ~ M8
• Measured on Hard Joint
  Min. Oil Pressure / 0.4 MPa: 11 (8.1) Nm (Lb-ft)
  Min. Oil Pressure / 0.5 MPa: 12 (8.9) Nm (Lb-ft)
  Min. Oil Pressure / 0.6 MPa: 13 (9.6) Nm (Lb-ft)
  Max. Oil Pressure / 0.4 MPa: 20 (14.8) Nm (Lb-ft)
  Max. Oil Pressure / 0.5 MPa: 22 (16.2) Nm (Lb-ft)
  Max. Oil Pressure / 0.6 MPa: 25 (18.4) Nm (Lb-ft)

• Free Speed: 6000 rpm
• Air Cons.: 0.4 m³/min
• Noise Level: 85 dB(A)
• Net Weight: 0.88 kg
• Air Inlet Size: NPT 1/4″

• Recommended Gauge Air Pressure: 60 ~ 90psi (4kg/cm² ~ 6kg/cm²) (0.4MPa ~ 0.6MPa)
• Air Hose Size: 10mm x 6.5mm (For 043~063 models), (For 073 ~ 084 models)
• The above data are all measured at 4kg/cm² ~ 6kg/cm² Gauge Air Pressure
