(Also known as Wireless Rotary Torque Sensor / Non-Contact Torque Transmitter)
Wireless Rotary Torque Transducer is a high-precision torque-sensing device engineered for real-time measurement of dynamic torque on rotating tools, machinery, and fastening equipment. It uses advanced strain-gauge technology and a robust signal-processing system to deliver accurate, stable torque data even under high-speed or impact conditions. The wireless transmission design eliminates the need for cables, allowing easier installation, reduced maintenance, and complete freedom of movement for rotating applications such as impact wrenches, pulse tools, assembly machines, and robotic systems. Its durable housing and shock-resistant structure ensure reliable performance in harsh industrial environments, including vibration, heavy loads, and continuous operation. Lightweight construction and balanced design help maintain natural tool handling while providing dependable measurement accuracy. The Wireless Rotary Torque Transducer is ideal for smart manufacturing, automotive assembly, machinery production, and quality inspection, where real-time torque monitoring, traceability, improved process control, and enhanced productivity are critical for achieving consistent, reliable fastening results.
Working Principle
Strain Measurement:A strain gauge bridge is bonded to the rotating shaft or torque-sensing element.As torque is applied, the shaft twists slightly, changing the electrical resistance of the strain gauges.
Signal Conditioning:The signal is amplified and converted into a digital torque signal by onboard electronics mounted on the rotating element.
Wireless Data Transmission:The conditioned torque signal is transmitted wirelessly to a stationary receiver (via RF 2.4G link or BT Bluetooth), eliminating the need for slip rings or wires.
Data Output:The receiver outputs standard analog or digital signals to external data systems, controllers, or MES networks.
Key Features
Fully Wireless Operation:Contactless power and data transmission — no wear-prone slip rings or brushes.
High Accuracy:Typical measurement accuracy of ±1% of full scale.
High-Speed Capability:Supports rotational speeds up to 10,000 rpm.
Anti-Vibration Design:This design is resistant to shock and vibration, making it ideal for Clutch, impact, and pulse-type pneumatic tools.
Compact & Lightweight:Easy integration into tool spindles, torque testers, or test benches.
Data Logging & Communication:Real-time torque, angle, and temperature data can be logged or sent to controllers via Wi-Fi, RF, or Bluetooth.
Applications
Smart Torque-Control Systems (e.g., ZIPPTORK TCA/TCB/TCC controllers)
Pneumatic and Electric Power Tools (impact, pulse, clutch-type)
Dynamometers and Test Benches
Automotive and Aerospace Assembly
Rotating Machinery Torque Monitoring
Calibration of Torque Tools and Bolting Systems
Advantages
Enables real-time torque verification in fast-rotating systems.
This technology converts conventional pneumatic tools into smart, data-driven devices.
Improves process traceability, quality control, and predictive maintenance.
Ideal for IIoT / Industry 4.0 integration, bridging OT → IT → MES systems.
Wireless torque transducer working diagram
TTEH / TTAH Series Wireless Rotary Torque Transducer (Impact Socket Output)

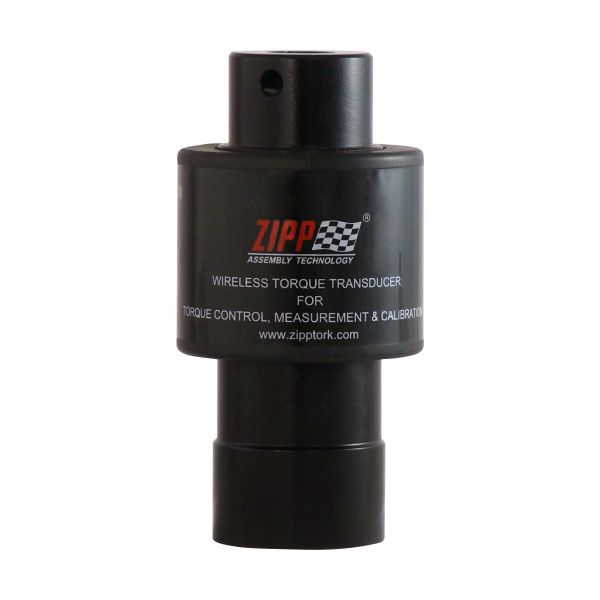

TTAH Series Wireless Rotary Torque Transducer – Socket output with Angle detection
The TTAH Series Wireless Rotary Torque Transducer with Angle Detection is an innovative tool that simultaneously provides highly accurate torque and angle measurements. This transducer is ideal for applications that require precise control and monitoring of torque and rotational angle, making it a versatile solution for the automotive, aerospace, manufacturing, and research industries.
TTES / TTAS Series Wireless Rotary Torque Transducer (Square Drive)

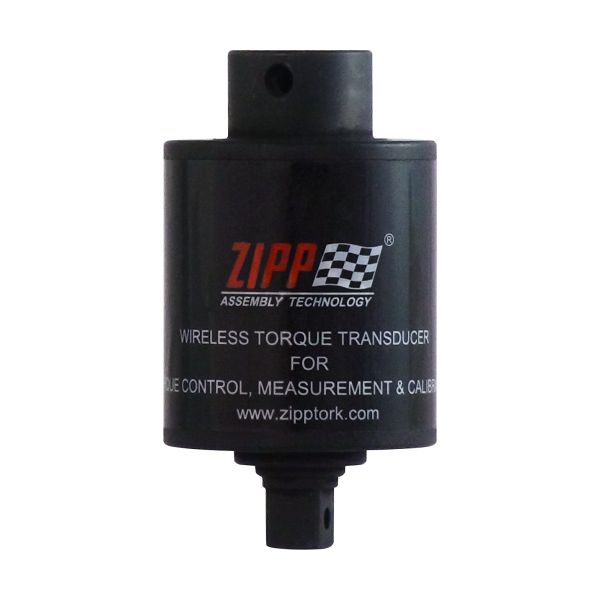

TTAS Series Wireless Rotary Torque Transducer (Angle detection)
The TTAS Series Wireless Rotary Torque Transducer with Angle Detection is an innovative tool that simultaneously provides highly accurate torque and angle measurements. This transducer is ideal for applications that require precise control and monitoring of torque and rotational angle, making it a versatile solution for the automotive, aerospace, manufacturing, and research industries.

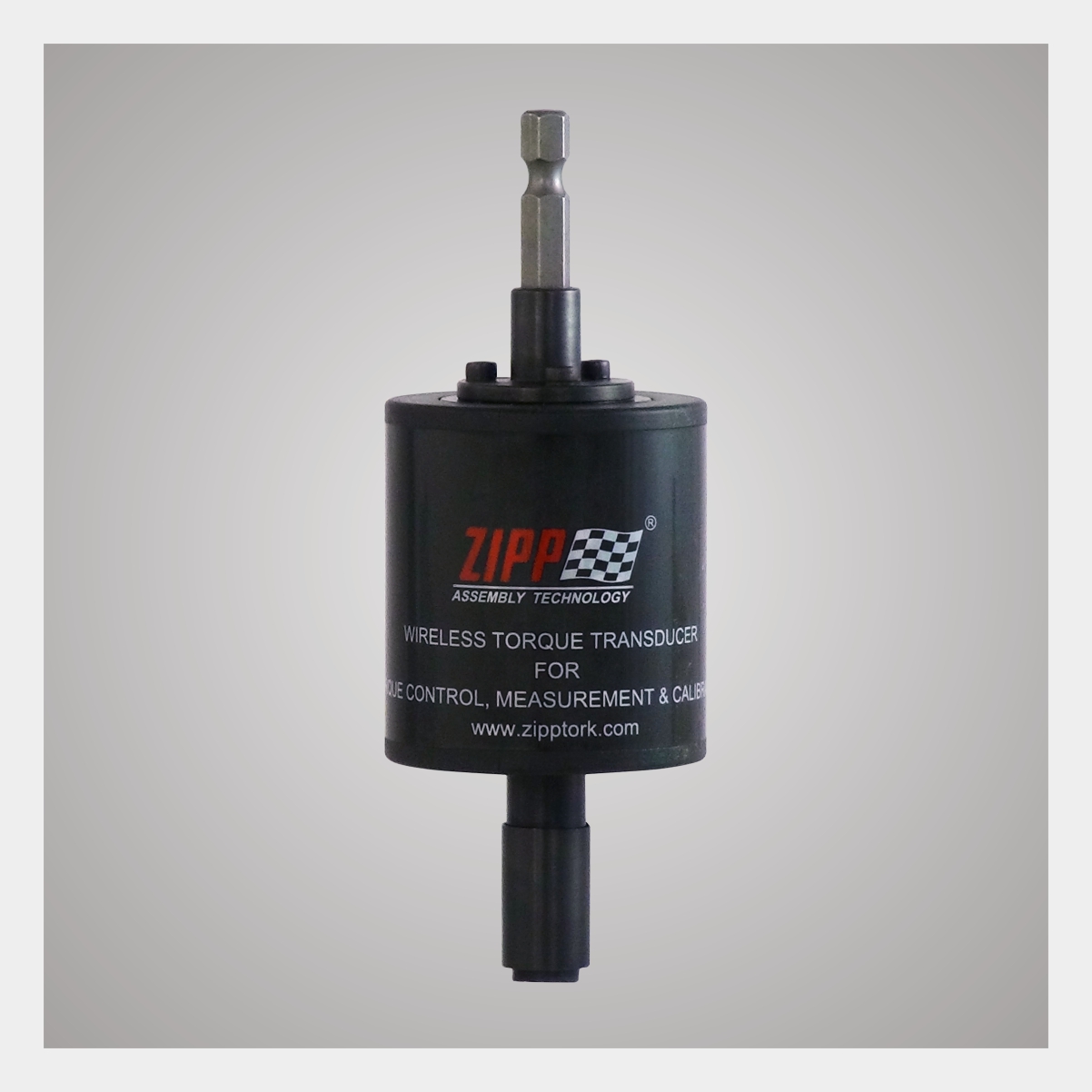

TTEB Series Wireless Rotary Torque Transducer (Screw Bits Holder)

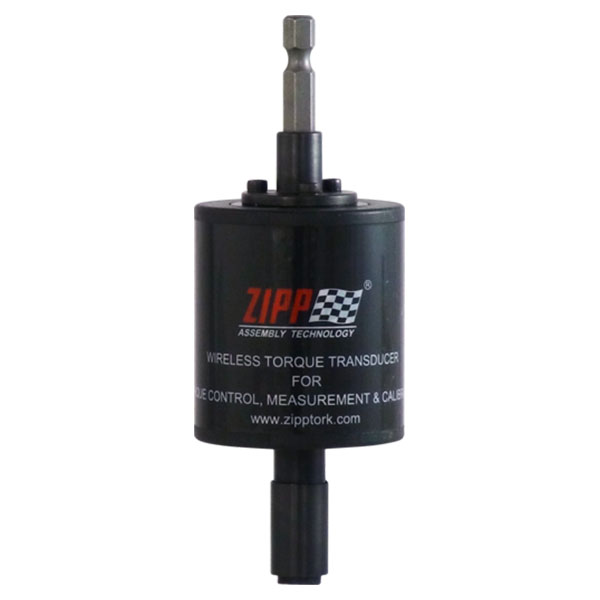

TTEB Series Wireless Rotary Torque Sensor – Bit Holder output
The TTEB Series Wireless Rotary Torque Sensor with Bit Holder Output is an advanced tool for precise torque measurement in applications requiring a bit holder interface. This transducer is ideal for use in industries where accuracy, reliability, and ease of data collection are crucial, such as electronics assembly, automotive manufacturing, and industrial maintenance. The TTEB Series features wireless data transmission, providing real-time feedback and enhancing operational efficiency.

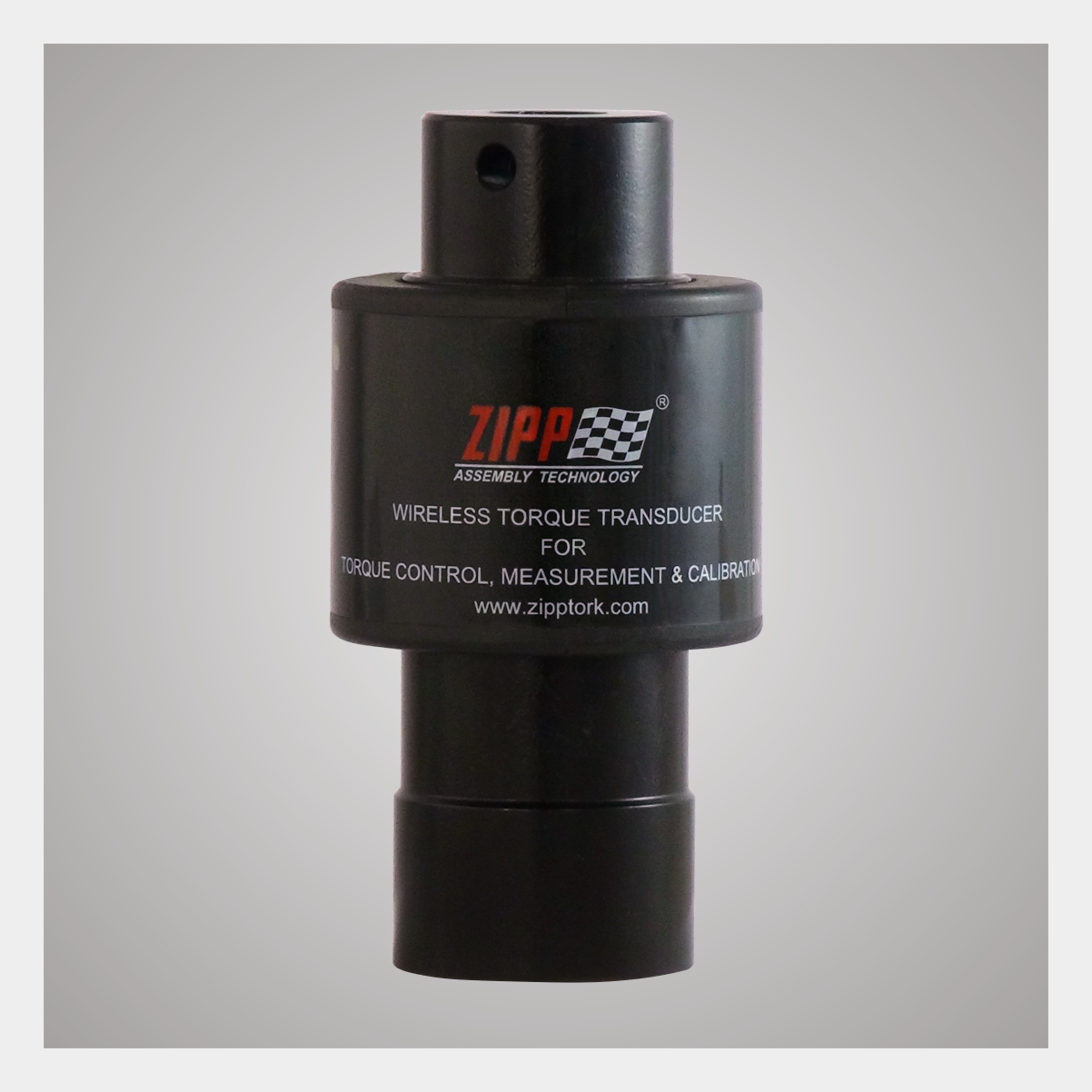

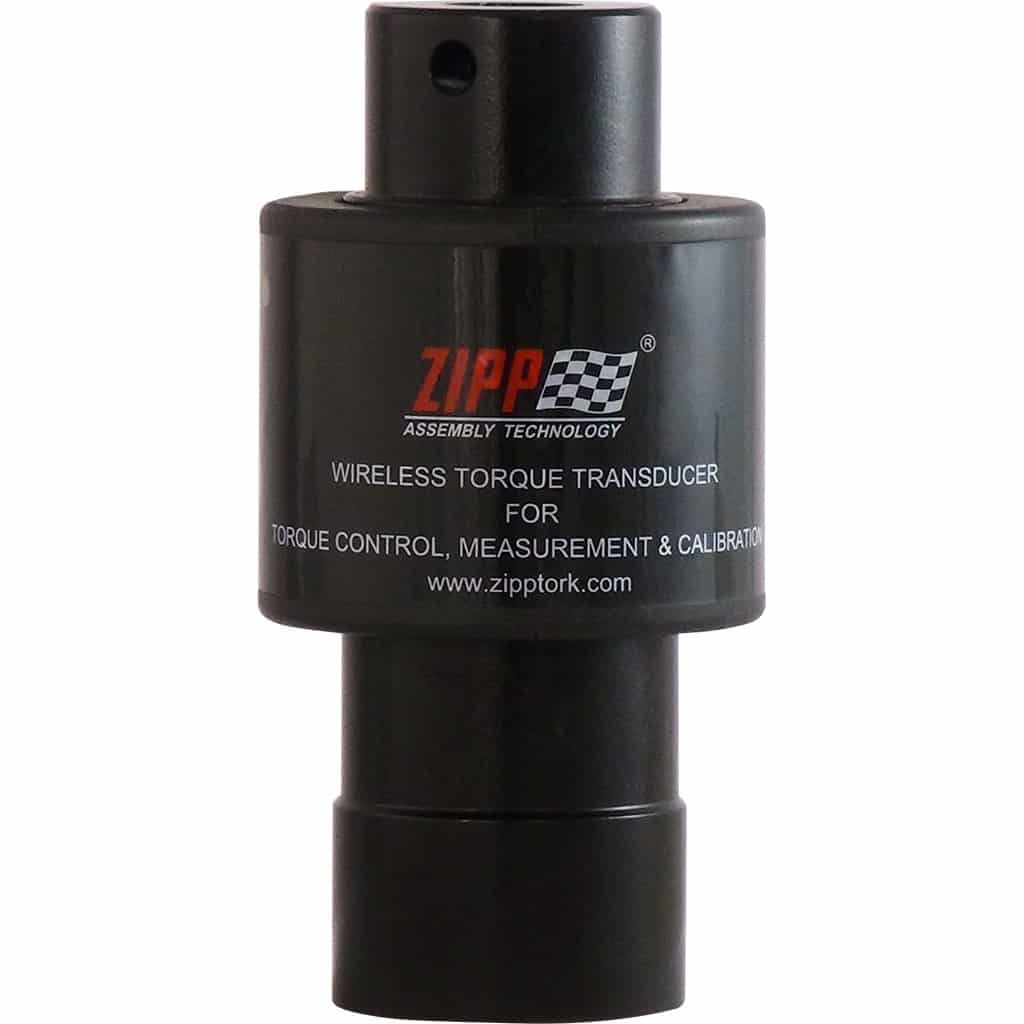

TTEH / TTAH Series Wireless Rotary Torque Transducer (Impact Socket Output)
The TTEH Series Shock & Impact Proof Wireless Rotary Torque Transducer is a cutting-edge tool that provides accurate and reliable torque measurements in demanding environments. Engineered to withstand shock, impact, and harsh operating conditions, this transducer is ideal for applications where precision and durability are paramount.

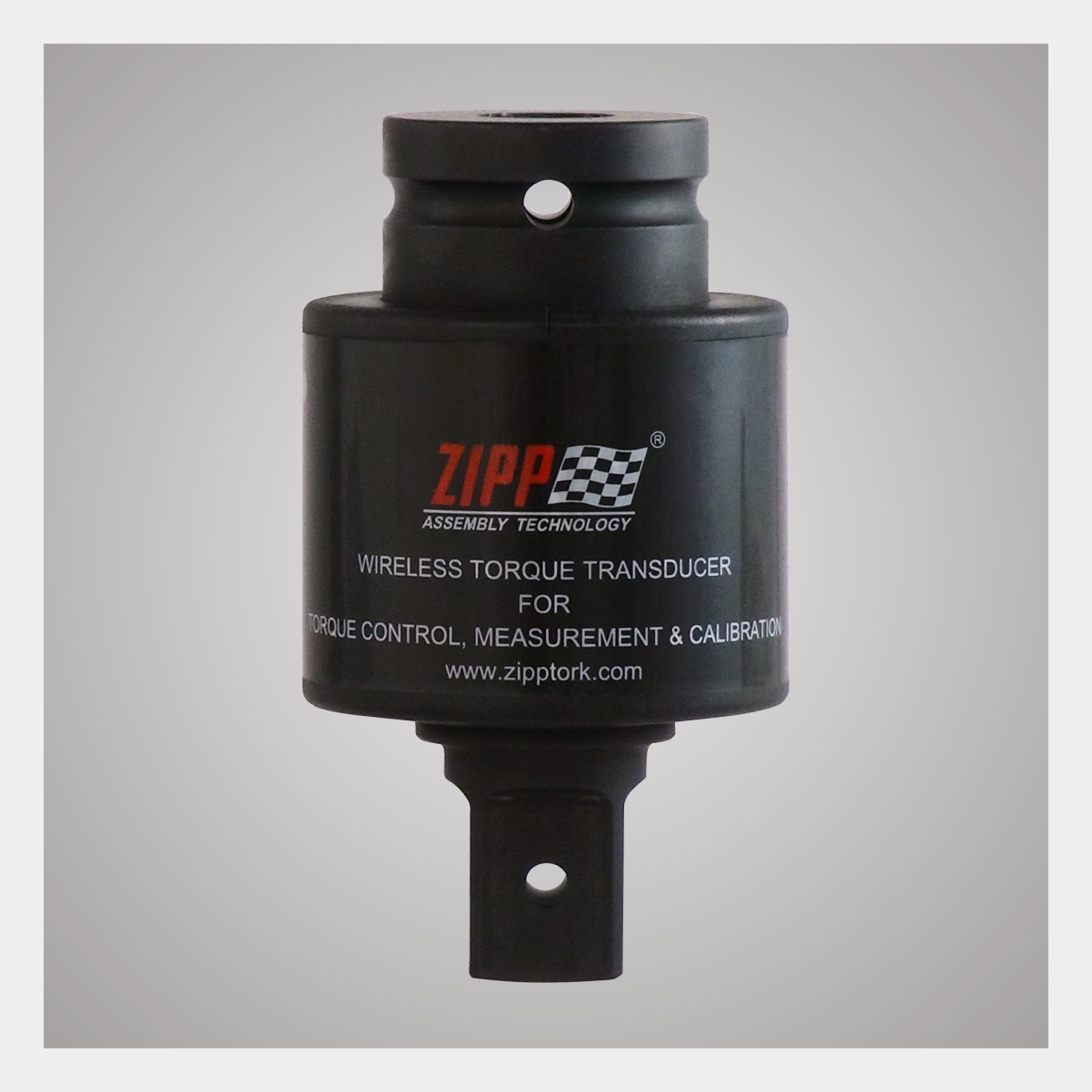

TTES / TTAS Series Wireless Rotary Torque Transducer (Square Drive)
The TTES Series Shock and Impact-Proof Wireless Rotary Torque Transducer is a cutting-edge tool that delivers accurate, reliable torque measurements in demanding environments. Engineered to withstand shock, impact, and harsh operating conditions, this transducer is ideal for applications where precision and durability are paramount.
