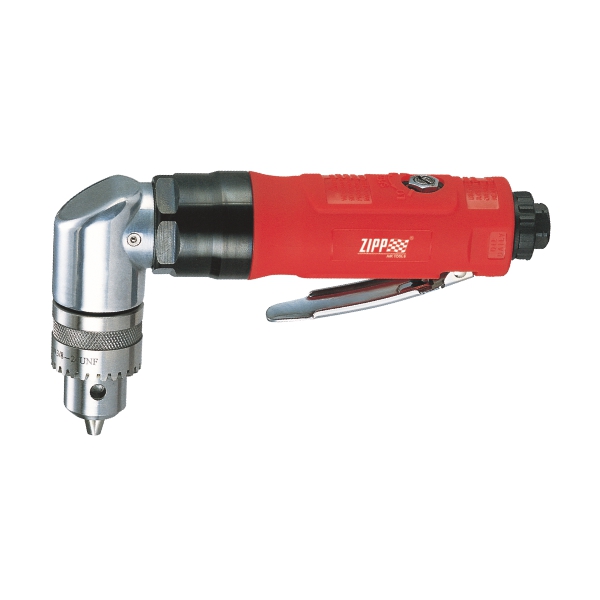

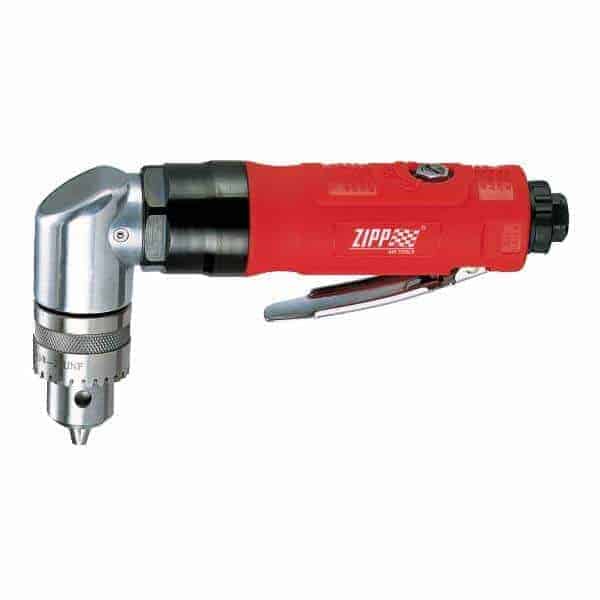

ZAD-336 – 3/8 inch 90º Angle Air Drill
The ZAD-336 3/8 inch 90º Angle Air Drill is a compact, right-angle pneumatic drill engineered for tight-space drilling and fastening applications. With its low-profile 90-degree head, this tool provides access to confined areas that standard inline or pistol-grip drills cannot reach. Designed for industrial, automotive, and aerospace environments, it combines power, precision, and maneuverability for professional use.
Key Features
-
3/8 inch Chuck Capacity – Compatible with a wide range of drill bits for versatile tasks.
-
90º Angle Head – Provides access to hard-to-reach and narrow work areas.
-
Compact & Lightweight – Ideal for overhead, vertical, or restricted-space drilling.
-
High-Speed Pneumatic Motor – Ensures smooth and consistent drilling performance.
-
Ergonomic Design – Reduces operator fatigue during continuous operation.
-
Durable Construction – Built to withstand demanding industrial environments.
Advantages & Benefits
-
Space-Saving Design – Perfect for drilling in corners, edges, and confined spaces.
-
Operator Comfort – Low vibration and lightweight structure improve handling.
-
Consistent Output – Delivers reliable torque and smooth performance.
-
Industrial Durability – Designed for heavy-duty, long-term use in industrial settings, such as assembly lines and workshops.
-
Versatility – Suitable for drilling on metals, wood, composites, and plastics.
Applications
-
Automotive Repair & Maintenance – Ideal for chassis, body panels, and engine bay work.
-
Aerospace Assembly – Perfect for confined drilling operations in aircraft structures.
-
Metal Fabrication & Light Manufacturing – Ensures precise drilling in tight workspaces.
-
Woodworking & Carpentry – Ideal for cabinetry and intricate work in confined spaces.
-
General Industrial Maintenance – A reliable tool for daily MRO operations.
Why Choose the ZAD-336?
The ZAD-336 3/8 inch 90º Angle Air Drill is a specialized solution for precision drilling in confined areas. With its 90-degree head, lightweight design, and industrial-grade performance, it is a go-to tool for professionals who require accuracy and maneuverability without compromising power.
- The Angle Air Drill is ideal for drilling applications in restricted areas.
- The powerful air motor provides high power output and stall torque resistance.
Specification:
- Chuck Size: 3/8(10) inch(mm)
- Spindle Thread: 3/8″-24
- Net Weight: 2(0.9) lbs(kgs)
- Length: 7.6(195) in.(mm)
- Free Speed: 1800 rpm
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Avg. Air Cons.: 3.7 cfm
| Model | Chuck Size inch(mm) |
Spindle Thread inch |
Net Weight lbs(kgs) |
Length inch(mm) |
rpm | Air Inlet Size inch-NPT/PT |
Minch Hose Size inch(mm) |
Avg. Air Cons. cfm |
| ZAD-3004P | 3/8(10) | – | 1.5(0.7) | 7.2(185) | 22000 | 1/4 | 3/8(10) | 4.1 |
| ZAD-3004PC | 3/8(10) | – | 1.5(0.7) | 7.2(185) | 22000 | 1/4 | 3/8(10) | 4.1 |
| ZAD-336 | 3/8(10) | 3/8″-24 | 2(0.9) | 7.6(195) | 1800 | 1/4 | 3/8(10) | 3.7 |
| ZAD-356 | 3/8(10) | 3/8″-24 | 1.8(0.8) | 8.8(225) | 2600 | 1/4 | 3/8(10) | 3.7 |
| ZAD-356P | 3/8(10) | 3/8″-24 | 1.8(0.8) | 8.8(225) | 2600 | 1/4 | 3/8(10) | 3.7 |
| ZAD-376 | 3/8(10) | 3/8″-24 | 1.8(0.8) | 8.8(225) | 3600 | 1/4 | 3/8(10) | 3.7 |
| ZAD-376P | 3/8(10) | 3/8″-24 | 1.8(0.8) | 8.8(225) | 3600 | 1/4 | 3/8(10) | 3.7 |
