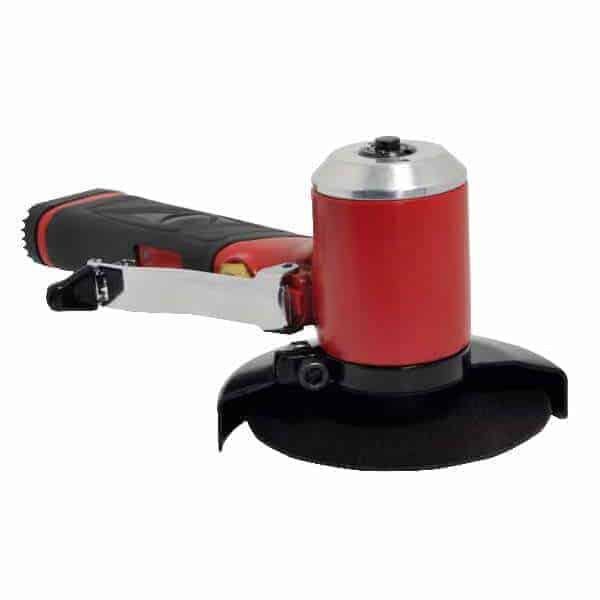

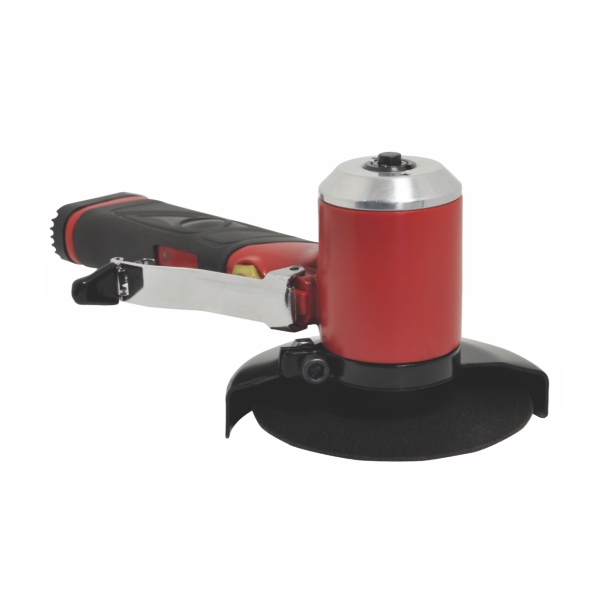

ZAG-387 – 4-Inch Air Cut-Off Tool
The ZAG-387 is a professional-grade pneumatic cut-off tool designed for precise and efficient cutting of sheet metal and industrial components. With a robust motor and anti-vibration design, it delivers consistent performance in demanding fabrication, automotive, and maintenance applications.
Key Features
-
4-Inch Cutting Wheel – Ideal for thicker materials and longer cuts with clean edge quality.
-
Low Vibration Design – Enhances operator control and comfort while reducing fatigue.
-
Ergonomic Handle – Rubberized grip ensures comfortable handling and precise control.
-
Lock-Pin Spindle – Enables fast and safe wheel changes.
Technical Specifications
| Specification | Details |
|---|---|
| Free Speed | 14,000 RPM |
| Motor Power | ~0.8 HP |
| Air Inlet Size | ¼″ NPT/PT |
| Air Consumption | 4.5 CFM |
| Operating Pressure | ~6.3 bar (90 PSI) |
| Net Weight | ~0.93 kg (approx. 2 lbs) |
| Dimensions (L × W × H) | ~240 × 105 × 125 mm |
Advantages & Benefits
-
Efficient Cutting Power – The 4” pad size and robust motor deliver smooth, clean cuts through tough materials.
-
Comfortable Use – Low vibration and ergonomic design improve user experience and control.
-
Fast Maintenance – The lock-pin spindle enables swift wheel swaps for uninterrupted workflow.
-
Precision Tooling – Designed for accurate material removal and detailed work in industrial or automotive environments.
Applications
-
Metal Fabrication – Trim and shape steel plates, channel strips, or metal sheet panels.
-
Automotive Repair – Ideal for exhaust components, panel cutting, and bodywork detailing.
-
Industrial Maintenance – Suited for removing fasteners, tubing, rivets, and other metal parts.
Why Choose the ZAG-387?
If you need a strong, reliable, and ergonomic pneumatic cutter for detailed metalwork in tight or fast-paced environments, the ZAG-387 is a top-tier choice. Its balance of power, precision, and operator comfort makes it a trusted tool for professionals.
Features
- Low Vibration & Ergonomic handle design.
- Easy access to changing discs.
- High-output motor
- Lock pin design for easy access when changing discs
- Rubber grip handle
- Low noise level
Specification:
- Free Speed: 14000 rpm
- Capacity Size: 3″ PAD
- Horse Power: 0.8 HP
- Air Inlet Size: 1/4 inch-NPT/PT
- Air Pressure: 6.3 kg/cm2
- Avg. Air Cons: 4.5 cfm
- Net Weight: 0.93 kg
- Overall Length: 240x105x125 mm
| Model | Free Speed rpm |
Capacity Size PAD |
Horse Power HP |
Air Inlet | Air Pressure kg/cm2 |
Air Cons. cfm |
Weight kg |
Overall Length mm |
| ZAG-386 | 18000 | 3″ | 0.82 | 1/4 | 6.3 | 4 | 0.83 | 225x115x105 |
| ZAG-387 | 14000 | 4″ | 0.8 | 1/4 | 6.3 | 4.5 | 0.93 | 240x105x125 |
