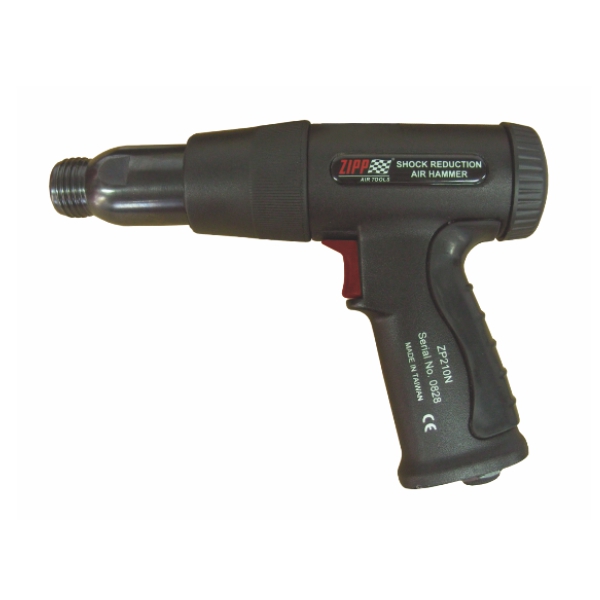

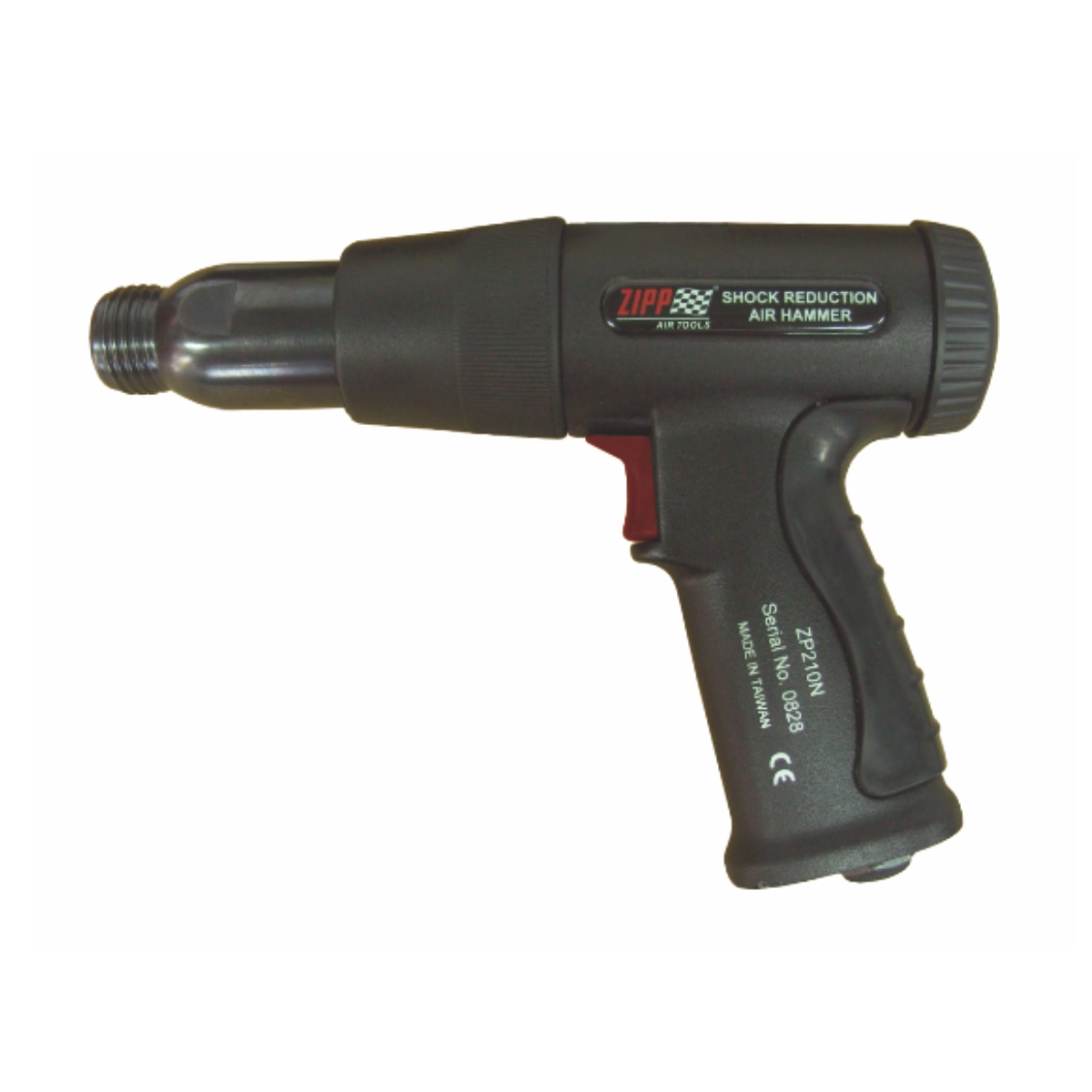

ZAH-393H Shock Reduced Air Hammer – HEX
The ZAH-393H Shock Reduced Air Hammer is a professional-grade pneumatic tool designed for heavy-duty hammering, cutting, and chipping applications. Featuring an advanced shock-reduction system, it minimizes vibration transfer to the operator, reducing fatigue and the risk of long-term injury. Built with rugged materials and precision engineering, the ZAH-393H combines power, comfort, and durability, making it ideal for demanding industrial and automotive tasks.
Key Features
Shock-Reduction Technology
Significantly lowers vibration levels, improving operator comfort and workplace safety.
Powerful Impact Performance
Delivers strong, consistent blows for effective material removal and cutting.
Ergonomic Handle Design
Provides a secure and comfortable grip for better control during prolonged use.
Durable Construction
Made with heavy-duty materials to withstand industrial environments and extend tool life.
Consistent Air-Powered Operation
Ensures smooth and reliable performance during continuous operation.
Versatile Tool Compatibility
Accepts a wide range of chisels and accessories for different applications.
Benefits
-
Operator Comfort: Shock-reduction design reduces fatigue and protects against Hand-Arm Vibration Syndrome (HAVS).
-
High Productivity: Strong impact force ensures efficient cutting, chipping, and hammering.
-
Durable and Reliable: Rugged construction guarantees long service life under daily heavy use.
-
Versatility: Compatible with multiple chisel types for different tasks.
-
Improved Safety: Reduced vibration and ergonomic grip enhance safe operation.
Applications
-
Automotive Repair: Remove exhaust pipes, body panels, or seized fasteners.
-
Construction & Renovation: Break concrete, brick, or masonry in demolition tasks.
-
Metal Fabrication: Cut sheet metal, rivets, and bolts with ease.
-
Industrial Maintenance: Remove corrosion, coatings, or stuck components from machinery.
-
General Workshop Use: A multipurpose air hammer for repair and fabrication tasks.
Why Choose the ZAH-393H Shock Reduced Air Hammer?
The ZAH-393H is engineered for professionals who need power, versatility, and safety in a single tool. Its shock-reduction system makes it safer and more comfortable for extended use, while its heavy-duty build ensures durability under constant industrial workloads. Whether in automotive repair, construction, or fabrication, the ZAH-393H delivers reliable impact power, reduced vibration, and long-lasting performance, making it the go-to choice for demanding hammering applications.
Features
- Designed with the following patents to ensure the best shock reduction and operator’s comfort.
1) Portable pneumatic tool assembled with module units.
2) Suspension vibration-reducing means for portable pneumatic tools. - Alloy steel-made impact parts are heat-treated for durability.
- Quick Change Retainer for simple accessory changes.
- Ergonomic handle with a rubber-made exhaust muffler for added operator comfort.
- An optional patented universal swivel air inlet joint for the best maneuverability of the tool.

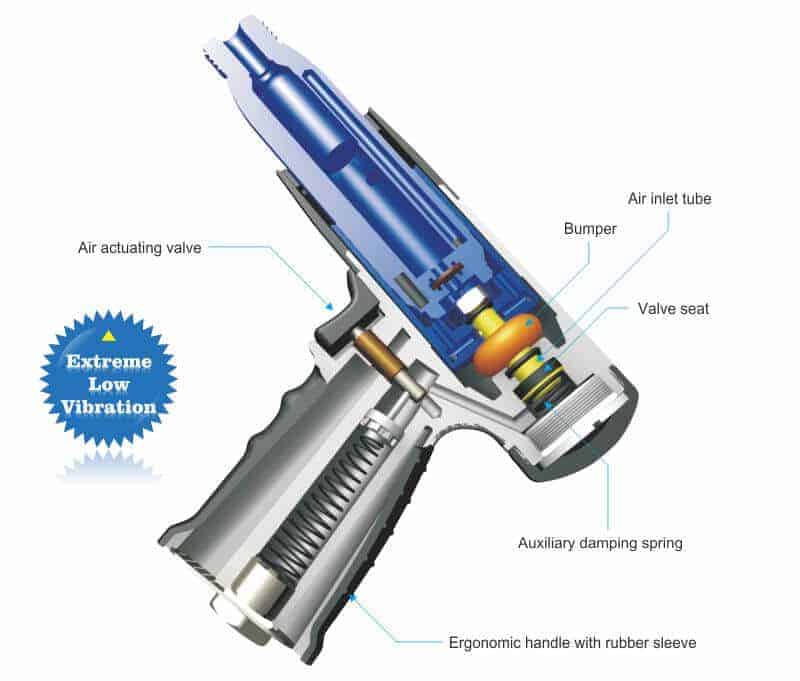

- Bumper
- Air inlet tube
- Valve seat
- Air actuating valve
- Auxiliary damping spring
- Ergonomic handle with rubber sleeve
Specification:
- Chisel Shank Opening: 0.410(10.4) inch(mm)
- Bore Diameter: 3/4(19) inch(mm)
- Stroke Length: 2-5/8(66) inch(mm)
- Blows Per Minute: 3000 bpm
- Avg. Air Cons.: 4.95(140) cfm(l/min)
- Net Weight: 4(1.8) lbs(kgs)
- Air Inlet Size: 1/4 PT/NPT
- Operating Air Pressure: 90(6.2) PSI(bar)
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 10 m/s2
ZAH-393HK
Accessories
- Shock Reduced Air Hammer X 1
- 192913 Retainer Spring
- CH641RL 7″ Single End Cutter X 1
CH645RL 7″ Cut Off Chisel X 1
CH649RL 7″ Rivet Cutter Chisel X 1
CH672RL 7″ Special Panel Cutter X 1
CH627RL 7″ Shear Chisel X 1
| Model | Chisel Shank Opening inch(mm) |
Bore Diameter inch(mm) |
Stroke Length inch(mm) |
Blow Per Minch bpm |
Avg. Air Cons cfm(l/min) |
Net Weight lbs(kgs) |
Minch Hose Size inch(mm) |
Vibration m/s² |
| ZAH-392 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-392H | 0.410(10.4) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-393 | 0.401(10.2) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-393H | 0.410(10.4) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |

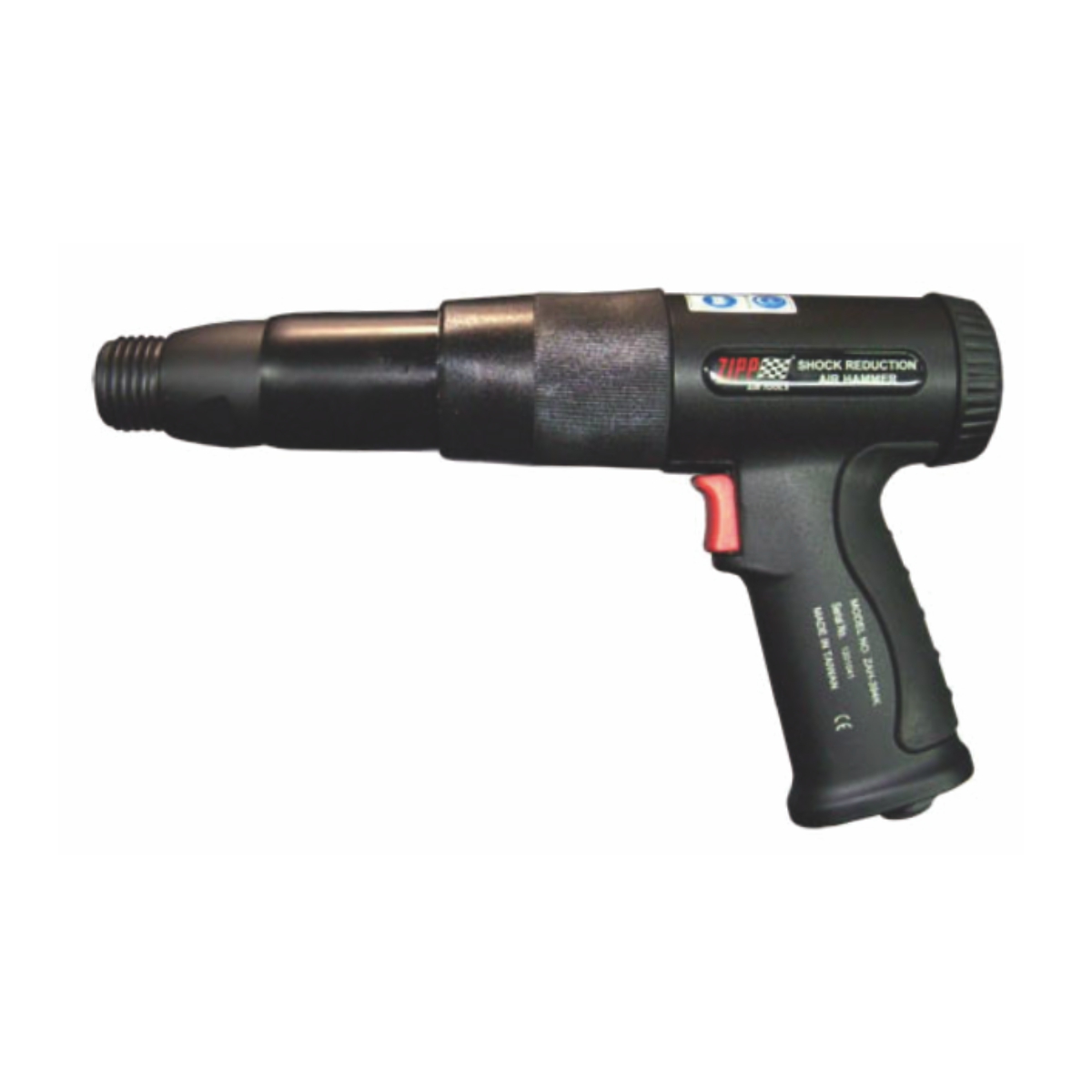

| ZAH-394 | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-394H | 0.410(10.4) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-592 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |

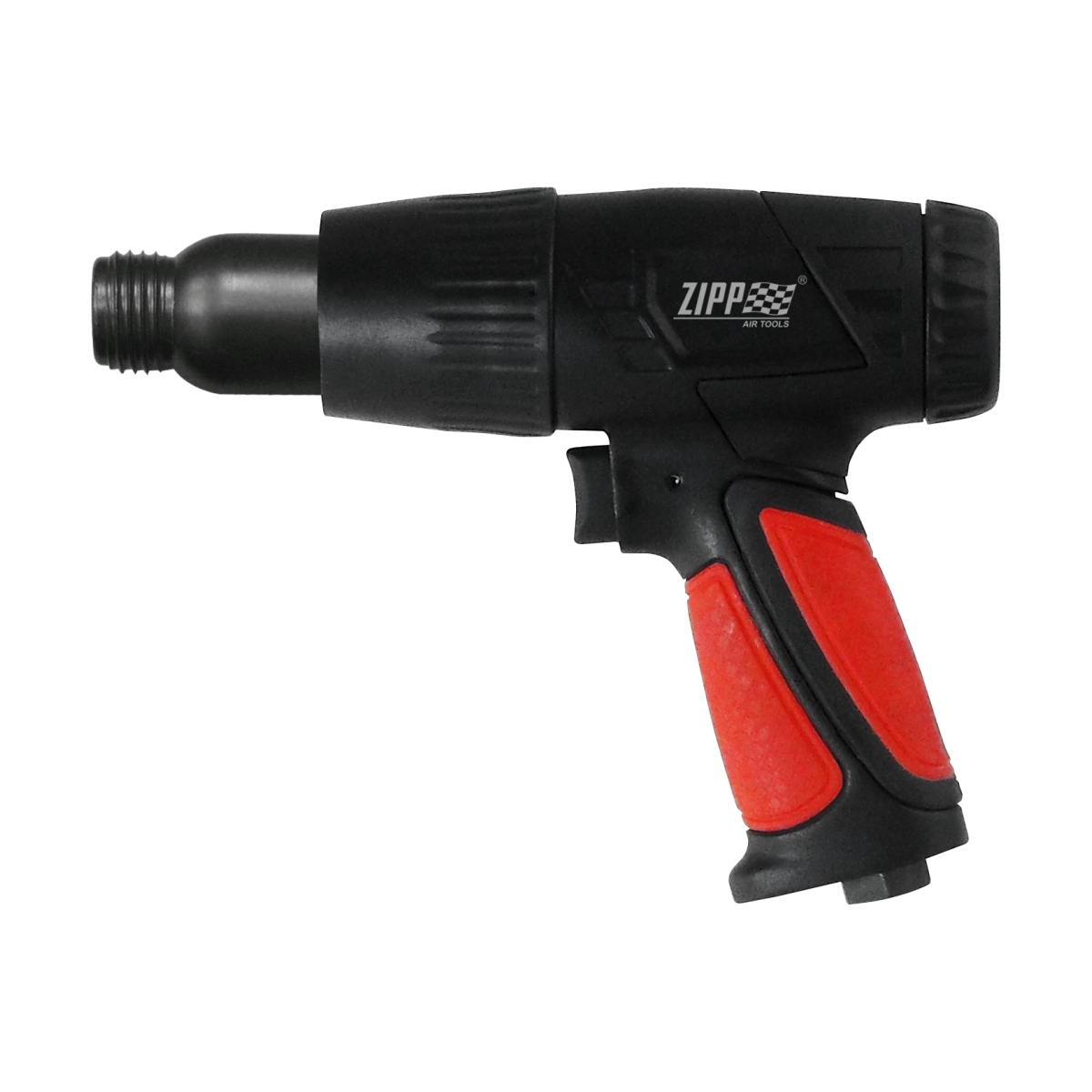

| ZAH-592H | 0.410(10.4) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |

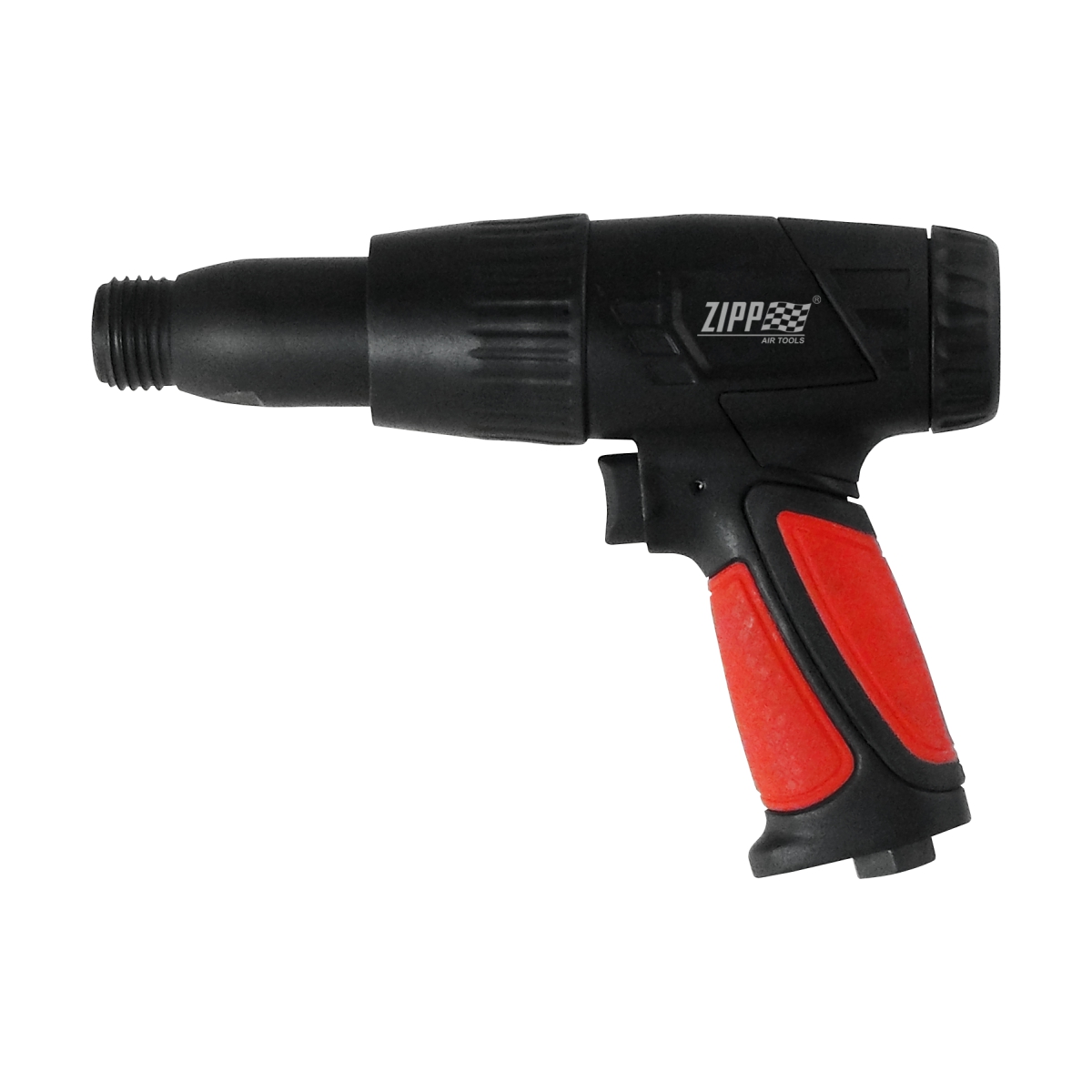

| ZAH-593 | 0.401(10.2) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-593H | 0.410(10.4) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-594 | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |

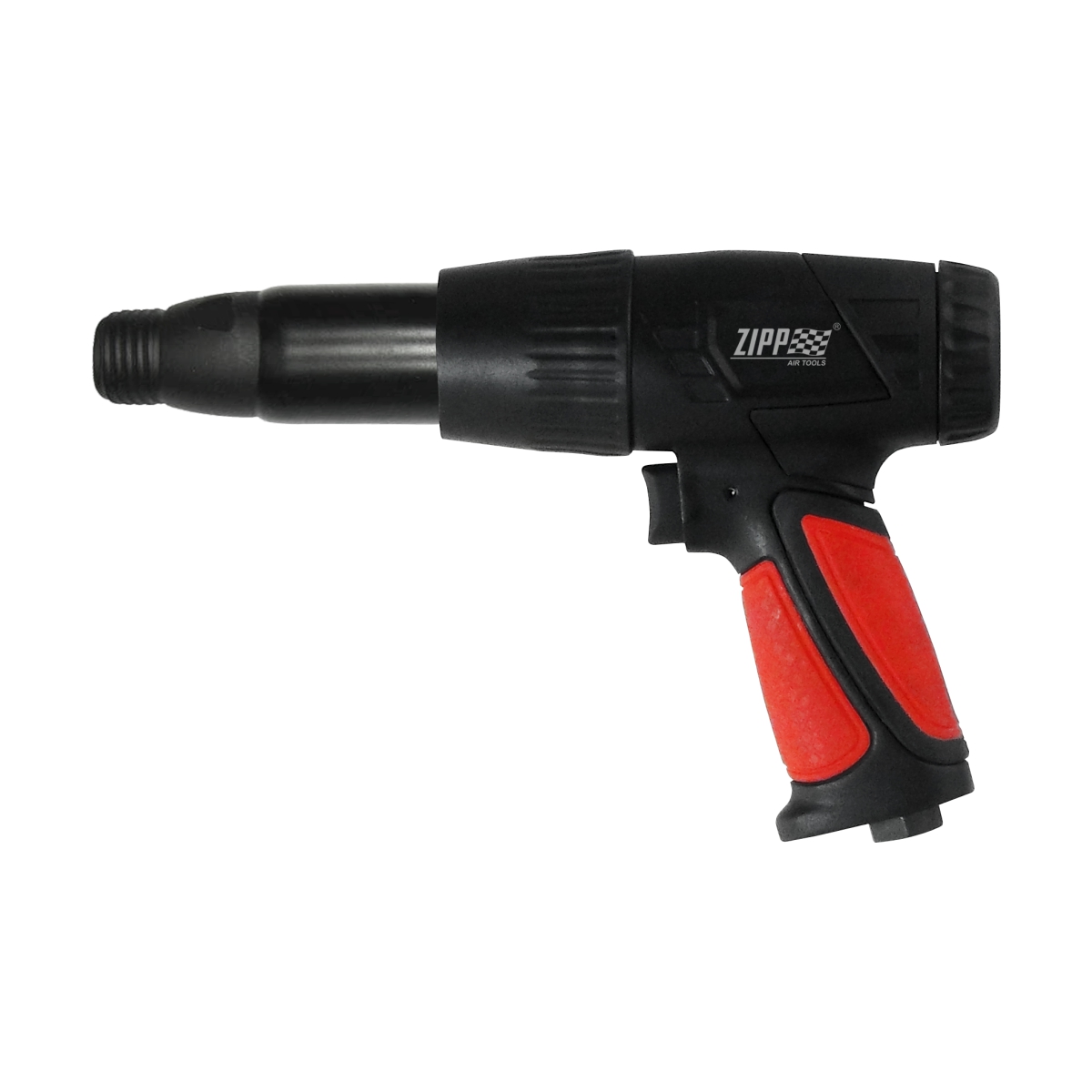

| ZAH-594H | 0.410(10.4) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZNS-392 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZCH-394B | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 6(170) | 4.6(2.1) | 3/8(10) | 5.3 |
*(H)-Chisel Shank Opening 0.410″(10.4mm) *Operating Air Pressure: 90psi/6.2bar. *Air Inlet Size: 1/4″ PT/NPT
