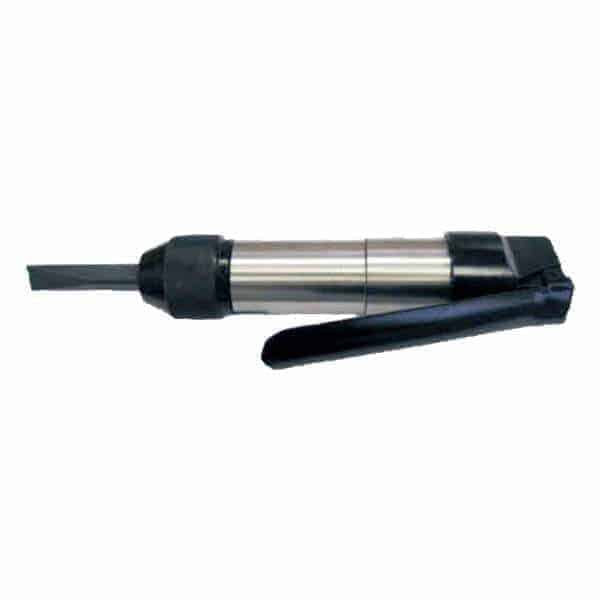

ZAS-132 – Air Flux Chipper
The ZAS-132 Air Flux Chipper is a specialized pneumatic chipping tool designed for precision removal of welding flux, paint splatter, scale, and other surface contaminants. It combines controlled striking force with compact ergonomics, making it an indispensable asset in fabrication, auto bodywork, maintenance, and restoration applications.
Key Specifications
-
Bore Diameter (Piston): 18 × 14 mm
-
Stroke Length: 15/16 in (24 mm)
-
Blows per Minute (bpm): 2,800
-
Average Air Consumption: 2.12 cfm (60 L/min)
-
Net Weight: 2.0 lbs (0.9 kg)
-
Minimum Hose Size: 3/8 in (10 mm)
-
Air Inlet Size: 1/4 in NPT/PT
Advantages & Benefits
-
Efficient Surface Cleaning: Ideal for removing weld splatter, paint, rust scale, and adhesives with precision.
-
Controlled Impact: The 24 mm stroke and 2,800 bpm strike rate provide a firm yet gentle cleaning action, minimizing damage to substrates.
-
Compact & Comfortable: Weighing just 2 lbs with a slim profile, it’s perfect for prolonged use and reaching confined areas.
-
Air-Efficient: Low air consumption ensures compatibility with standard pneumatic setups, enhancing productivity and reducing downtime.
-
Robust Construction: Designed for longevity in demanding industrial environments, withstanding heavy use.
Applications
-
Welding & Fabrication: Clean weld beads, remove slag, and prep surfaces before finishing.
-
Automotive & Body Shops: Remove paint overspray and weld residue without harming delicate panels.
-
General Maintenance: Efficiently strip coatings and scale from machinery, pipes, and metal surfaces.
-
Construction & Repair: Prepare edges and cut sections for adhesion or surface finishing.
Why Choose the ZAS-132?
For professionals seeking a dependable, ergonomic chipping tool that delivers both precision and power, the ZAS-132 Air Flux Chipper is an excellent choice. Its balanced performance, low vibration, and low air requirement make it highly effective for controlled surface removal in tight or sensitive work areas.
Specification:
- Bore Diameter: 18×14 mm
- Stroke Length: 15/16(24) inch(mm)
- Blows Per Min.: 2800 bpm
- Avg. Air Cons.: 2.12(60) cfm(l/min)
- Net Weight: 2.0(0.9) lbs(kgs)
- Min. Hose Size: 3/8(10) inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT
| Model | Bore Diameter inch(mm) |
Piston Diameter inch(mm) |
Stroke Length inch(mm) |
Blows Per Min. bpm |
Avg. Air Cons. cfm(l/min) |
Net Weight lbs(kgs) |
Min. Hose Size inch(mm) |
Air Inlet Size inch-NPT/PT |
| ZAS132 | (18×14) | ─ | 15/16(24) | 2800 | 2.12(60) | 2.0(0.9) | 3/8(10) | 1/4 |
| ZCF-2 | ─ | 0.87(22) | 0.87(22) | 4000 | 8.8(250) | 2.56(1.16) | 3/8(10) | 1/4 |
| ZP232 | 1/2(12.7) | ─ | 1/4(6.3) | 4800 | 2.8(80) | 1.59(0.72) | 3/8(10) | 1/4 |
Specification(air pressure at 90psi, 6.2bar, 6.3kg/cm²)
