ZAT Pneumatic Torque Wrench

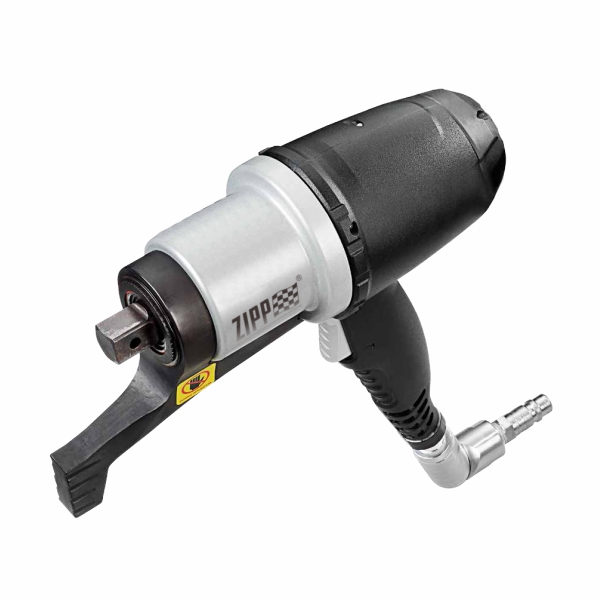

Cyclone Magnum Pneumatic Torque Wrench
The future of pneumatic torquing is here. The Cyclone Magnum features an optional digital torque readout, purpose built motor, industry-leading gear durability and numerous ergonomic features. The Cyclone Magnum is the new leader in torque accuracy ( /-5%), durability and comfort.
- Removable Drive — Hex Insertsn
Accessories available as an added option - Reaction Bar
Custom options available upon request - Robust Gear Box Design
To minimize gear tooth stress and maximize durability - High Precision Air Motor
Performance tested on a dynamometer to verify optimum speed, power and torque - Digital Display Screen
Available as an added option for quick torque and pressure readings(ZATXXXDR-CMPLT) - Toggle Trigger Feature
For quick forward/reverse direction control - Thru-Handle Exhaust
To safely direct exhaust away from user - Multi-Axis Hose Swivel
For added ease of use and to prevent hose kinking
- A1 – Length with Digital Torque Readout
- A – Length without Digital Torque Readout
Start torquing efficiently today!
Reduce your project downtime!
US PATENT NO. D638,682S
CANADIAN PATENT NO. 139501
EUROPEAN REGISTERED DESIGN NO. 001834300-0001
REGISTERED DESIGN NO. 001834300-0002
CHINA AND TAIWAN PATENT PENDING
Model | Square Drive Size inch | Torque Range ft-lbs(Nm) | Dimension A1 inch(mm) | Dimension A inch(mm) | Dimension B inch(mm) | Ring Diameter inch(mm) | Net Weight lbs(kgs) |
ZAT400CMPLT | 3/4 | 44-400(60-540) | 9.85(250.3) | 9.7(247.2) | 5.4(136.3) | 2.25(57.2) | 10.2(4.6) |
ZAT400DR-CMPLT | 3/4 | 44-400(60-540) | 9.85(250.3) | 9.7(247.2) | 5.4(136.3) | 2.25(57.2) | 10.2(4.6) |
ZAT800CMPLT | 3/4 | 88-800(120-1100) | 9.85(250.1) | 9.7(247.1) | 5.1(129.8) | 2.97(75.3) | 11.9(5.4) |
ZAT800DR-CMPLT | 3/4 | 88-800(120-1100) | 9.85(250.1) | 9.7(247.1) | 5.1(129.8) | 2.97(75.3) | 11.9(5.4) |
ZAT1800CMPLT | 1 | 200-1800(275-2450) | 12.12(307.9) | 11.7(297.5) | 7.5(191.3) | 3.42(86.9) | 17.7(8) |
ZAT1800DR-CMPLT | 1 | 200-1800(275-2450) | 12.12(307.9) | 11.7(297.5) | 7.5(191.3) | 3.42(86.9) | 17.7(8) |
ZAT3000CMPLT | 1 | 333-3000(450-4070) | 13(330) | 12.8(326.9) | 8.6(220.2) | 3.8(96.5) | 22.8(10.3) |
ZAT3000DR-CMPLT | 1 | 333-3000(450-4070) | 13(330) | 12.8(326.9) | 8.6(220.2) | 3.8(96.5) | 22.8(10.3) |
Removable Drives for Low-Cost Maintenance (Note: Use of hex drives may require special reaction bars.) | |||||||||
Hex Size | 5/8″ | 3/4″ | 7/8″ | 1″ | 1-1/4″ | 14 mm | 17 mm | 19 mm | 22 mm |
ZAT400 | ZAT400-HX1 | ZAT400-HX2 | ZAT400-HX7 | ZAT400-HX8 | ZAT400-HX9 | ||||
ZAT800 | ZAT800-HX1 | ZAT800-HX1 | ZAT800-HX7 | ZAT800-HX8 | ZAT800-HX9 | ||||
ZAT1800 | ZAT1800-HX2 | ZAT1800-HX3 | ZAT1800-HX4 | ZAT1800-HX8 | ZAT1800-HX9 | ZAT1800-HX10 | |||
ZAT3000 | ZAT3000-HX2 | ZAT3000-HX3 | ZAT3000-HX4 | ZAT3000-HX5 | ZAT3000-HX9 | ZAT3000-HX10 |
