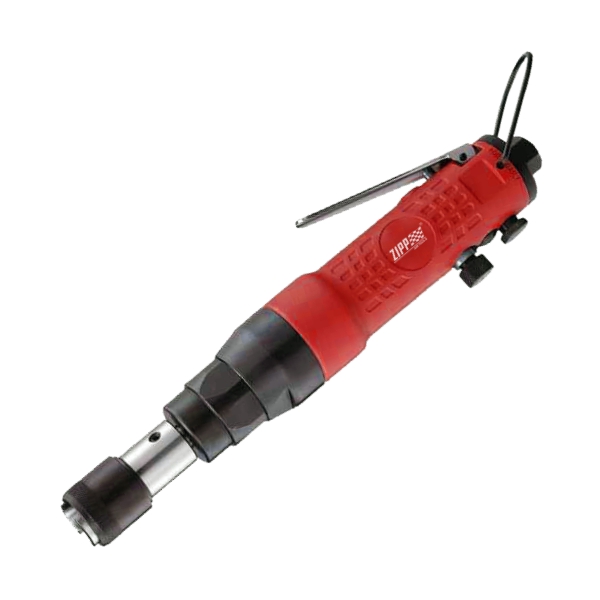

ZAT23AK Air Tapping Tool
ZAT23AK Air Tapping Tool: Precision and Efficiency in Pneumatic Tapping
The ZAT23AK Air Tapping Tool is a high-performance pneumatic tool designed for precise and efficient tapping operations across various industrial applications. Engineered to deliver consistent results, this tool is ideal for professionals who require accuracy and speed when creating threaded holes in materials like metal, plastic, and more.
Key Features and Benefits
- Robust Pneumatic Operation: The ZAT23AK utilizes compressed air to drive the tapping process, providing a steady and powerful output that ensures consistent thread formation. Its pneumatic operation eliminates the need for manual force, reducing operator fatigue and increasing productivity.
- High Precision Tapping: Designed for precision, the ZAT23AK delivers accurate and cleanly cut threads, making it ideal for applications where thread quality is critical. The tool can handle various thread sizes and types, ensuring versatility in different tapping tasks.
- Adjustable Speed Control: The tool features adjustable speed control, allowing users to tailor the tapping speed to the specific material and thread size. This flexibility ensures optimal performance and reduces the risk of damage to the tool and the workpiece.
- Ergonomic Design: The ZAT23AK is designed with user comfort in mind. It features an ergonomic handle that provides a secure and comfortable grip. The lightweight construction and balanced design reduce strain during prolonged use, allowing for precise control and ease of operation.
- Durable Construction: Built to withstand the demands of industrial environments, the ZAT23AK is constructed from high-quality materials that ensure long-lasting durability. Its robust design ensures reliable performance, even in heavy-duty applications.
- Quick-Change Chuck System: The tool is equipped with a quick-change chuck system, allowing for fast and easy tool changes without additional tools. This feature enhances efficiency by minimizing downtime during operations.
- Versatile Applications: The ZAT23AK is suitable for a wide range of tapping tasks, including automotive repair, machinery maintenance, metalworking, and other industrial applications. Its versatility makes it a valuable addition to any professional workshop or manufacturing facility.
Applications
The ZAT23AK Air Tapping Tool is ideal for various industrial and professional applications, including:
- Automotive Repair: Perfect for creating threaded holes in metal components during vehicle maintenance and repair. Its precision ensures that threads are accurately cut, reducing the risk of cross-threading and other issues.
- Metalworking: Suitable for tapping operations in metal fabrication, ensuring clean and precise threads in metal parts and assemblies.
- Machinery Maintenance: Ideal for creating or repairing threaded holes in machinery, ensuring that components are securely fastened and properly aligned.
- General Industrial Use: Versatile enough to be used in various industrial settings where precision tapping is required, including manufacturing, assembly, and repair operations.
Why Choose the ZAT23AK Air Tapping Tool?
The ZAT23AK Air Tapping Tool offers power, precision, and durability, making it an essential tool for professionals requiring high-quality thread tapping. Its pneumatic operation, adjustable speed control, and ergonomic design provide the performance and comfort needed for efficient and accurate tapping, while its durable construction ensures long-term reliability. Whether you’re working in automotive repair, metalworking, or industrial maintenance, the ZAT23AK delivers the precision and efficiency you need to achieve excellent results.
 | Rear exhaust |
Please specify by tapping the tool code & chuck standard while ordering.
| Air Tapping Tool Order Code Reference | |||
| Model | ZAT22AK | ZAT19AK | ZAT23AK |
| Size | Order Code | ||
| M2 | ZAT19AK-2 | ||
| M3 | ZAT22AK-3 | ZAT19AK-3 | ZAT23AK-3 |
| M4 | ZAT22AK-4 | ZAT19AK-4 | ZAT23AK-4 |
| M5 | ZAT22AK-5 | ZAT19AK-5 | ZAT23AK-5 |
| M6 | ZAT22AK-6 | ZAT19AK-6 | ZAT23AK-6 |
| M8 | ZAT22AK-8 | ZAT19AK-8 | ZAT23AK-8 |
| M10 | ZAT22AK-10 | ZAT23AK-10 | |
| M12 | ZAT22AK-12 | ZAT23AK-12 | |
| NOTICE: When different sizes or standard chucks are needed, please refer to the chuck standards and size list and note them on the purchase order. Otherwise, the chuck will be JIS. | |||
| Chuck standards and size list | ||||||||||||
| FOR TAP | JIS | ISO | DIN 371 | DIN 376 | ||||||||
| Thread | Ød | ■ | Order Code | Ød | ■ | Order Code | Ød | ■ | Order Code | Ød | ■ | Order Code |
| M2 | 3 | 2.5 | TCJISM2 | |||||||||
| M3 | 4 | 3.2 | TCJISM3 | 3.15 | 2.5 | TCISOM3 | 3.5 | 2.7 | TCDIN371M3 | 2.2 | – | TCDIN376M3 |
| M4 | 5 | 4 | TCJISM4 | 4 | 3.15 | TCISOM4 | 4.5 | 3.4 | TCDIN371M4 | 2.8 | 2.1 | TCDIN376M4 |
| M5 | 5.5 | 4.5 | TCJISM5 | 5 | 4 | TCISOM5 | 6 | 4.9 | TCDIN371M5 | 3.5 | 2.7 | TCDIN376M5 |
| M6 | 6 | 4.5 | TCJISM6 | 6.3 | 5 | TCISOM6 | 6 | 4.9 | TCDIN371M6 | 4.5 | 3.4 | TCDIN376M6 |
| M8 | 6.2 | 5 | TCJISM8 | 8 | 6.3 | TCISOM8 | 8 | 6.2 | TCDIN371M8 | 6 | 4.9 | TCDIN376M8 |
| M10 | 7 | 5.5 | TCJISM10 | 10 | 8 | TCISOM10 | 10 | 8 | TCDIN371M10 | 7 | 5.5 | TCDIN376M10 |
| M12 | 8.5 | 6.5 | TCJISM12 | 9 | 7.1 | TCISOM12 | 9 | / | TCDIN376M12 | |||
| FOR TAP | ANSI | |||||||||||
| Thread | Ød | ■ | Order Code | |||||||||
| 1/2″ | 9.322 | 6.985 | TCANSIW1/2 | |||||||||
Specification:
- Tapping Capacity Aluminum: 3-12 mm
- Tapping Capacity Iron: 3-10 mm
- Free Speed: 100 rpm
- Air Consumption: 226(8) l/min(cfm)
- Overall Length: 12.2(310) inch(mm)
- Air Inlet: 1/4 P.T
- Net Weight: 4.1(1.86) lb(kg)
- Sound Level: 87 dB(A)
| Model | Tapping Capacity | Free Speed rpm | Air Consumption l/min(cfm) | Overall Length inch(mm) | Air Inlet P.T | Net Weight lbs(kgs) | Sound Level dB(A) | |
| Aluminum mm | Iron mm | |||||||
| ZAT22AK | 3-12 | 3-8 | 150 | 184(6.5) | 10.04(255) | 1/4 | 3.81(1.73) | 82 |
| ZAT19AK | 2-8 | 2-4 | 350 | 226(8) | 11.42(290) | 1/4 | 3.7(1.68) | 87 |
| ZAT23AK | 3-12 | 3-10 | 100 | 226(8) | 12.2(310) | 1/4 | 4.1(1.86) | 87 |
Specification(air pressure at 90psi, 6.2bar, 6.3kg/cm²)
