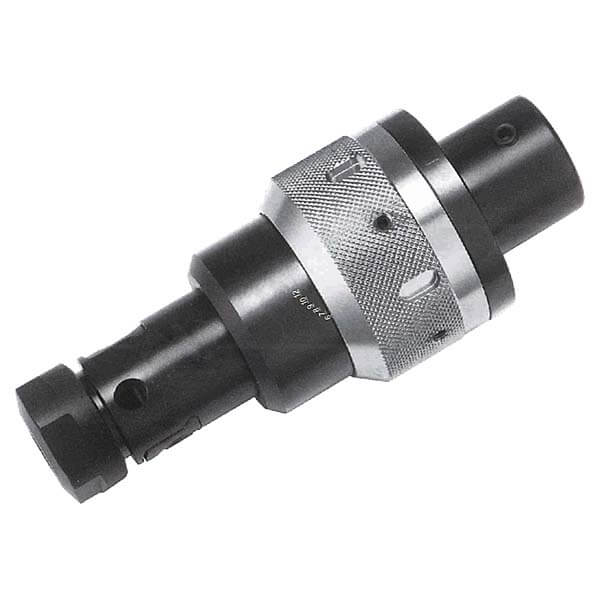

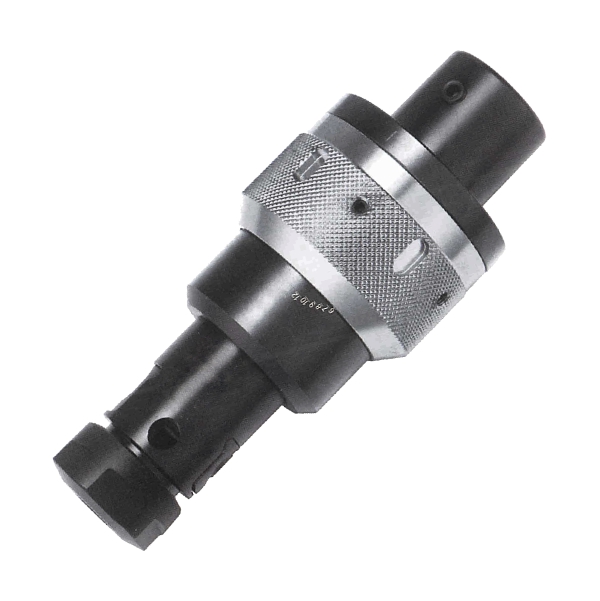

ZATC-B16C Adjustable Tapping Chuck
The ZATC-B16C Adjustable Tapping Chuck is a versatile, high-precision tool designed to enhance tapping operations on stationary drilling machines and CNC equipment. Ideal for industrial applications where thread cutting requires accuracy and efficiency, this tapping chuck offers adjustable torque control to prevent thread damage and ensure smooth operation. Whether used in machining, manufacturing, or metalworking, the ZATC-B16C is built to improve productivity by reducing tap breakage and maintaining alignment throughout the process.
Key Features and Benefits
1. Adjustable Torque Control
- Customizable torque settings minimize the risk of tap breakage by disengaging when torque exceeds preset levels.
- Protects delicate threads and ensures clean, accurate tapping in hard and soft materials.
2. Automatic Alignment and Centering
- The chuck automatically centers the tap, ensuring precise alignment and reducing the risk of misthreading or cross-threading.
- It is ideal for applications that require multiple threaded holes with consistent depth and pitch.
3. Quick-Change Design for Enhanced Productivity
- Features a quick-release mechanism that allows for rapid tap replacement, reducing downtime on the production line.
- Accommodates a wide range of tap sizes, increasing flexibility across different tasks.
4. Anti-Vibration and Smooth Operation
- Built-in damping mechanisms reduce vibration during tapping, improving tool life and operator comfort.
- Ensures smooth, chatter-free performance, even at higher speeds.
5. Durable and Corrosion-Resistant Construction
- It is manufactured with high-grade steel and coated to resist wear and corrosion, extending the lifespan of the chuck.
- Withstands intensive use in demanding industrial environments.
Applications
The ZATC-B16C Adjustable Tapping Chuck is suitable for a wide range of industries and applications, including:
- Metalworking and Machining: Creating internal threads in metal components with precision.
- Aerospace and Automotive Manufacturing: Tapping threaded holes for fasteners and fittings.
- Electronics Assembly: Precise threading in delicate materials without damaging components.
- General Industrial Use: Suitable for various materials, from steel and aluminum to plastics.
Why Choose the ZATC-B16C Adjustable Tapping Chuck?
The ZATC-B16C provides a perfect balance between precision, flexibility, and durability. With adjustable torque settings and quick-change functionality, this tapping chuck ensures consistent, high-quality results while minimizing tool damage and downtime. Whether you’re tapping fine threads in high-precision components or need reliable performance in high-volume production, the ZATC-B16C Adjustable Tapping Chuck is an essential tool for achieving optimal productivity.
| Patented | |
 | JIS, ISO, DIN371, DIS376, ANSI all standards Chuck and sizes can be used |
Specification:
- Tapping Size: 3-12 mm
- Overall Length: 4.72(120) inch(mm)
- Net Weight: 1.9(0.86) lbs(kgs)
SPECIFICATION (air pressure at 90psi, 6.2bar, 6.3kg/cm²)
| Model | Tapping Size mm | Overall Length inch(mm) | Net Weight lbs(kgs) |
| ZPTC-DT6 | 3~8 | 4.72(120) | 1.32(0.6) |
| ZPTC-B12A | 3~8 | 4.72(120) | 1.32(0.6) |
| ZATC-B12B | 3~12 | 4.72(120) | 1.9(0.86) |
| ZATC-B16C | 3~12 | 4.72(120) | 1.9(0.86) |
