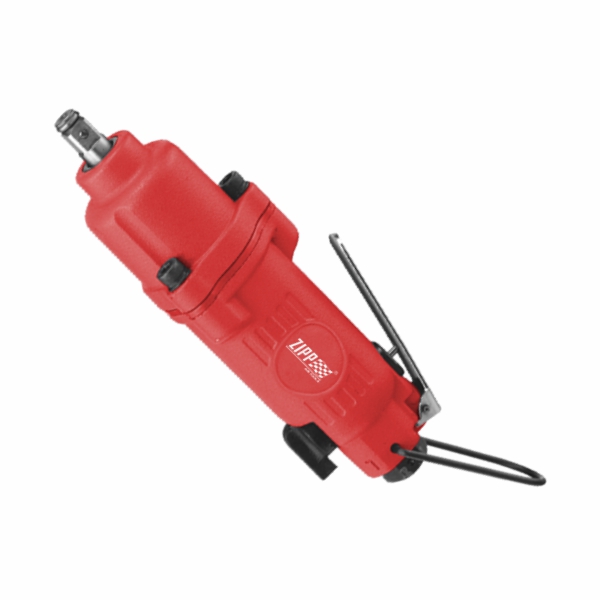

ZAW-410B 3/8-Inch Air Wrench – Professional Two Hammer Pneumatic Impact Wrench with Side Exhaust
The ZAW-410B 3/8-inch air wrench delivers professional-grade performance in a lightweight, compact form, making it ideal for technicians who need consistent torque, durability, and maneuverability. Built with a two hammer impact mechanism, this pneumatic wrench provides strong, balanced impacts for smooth operation and long-lasting reliability — perfect for automotive repair, machinery maintenance, and general assembly work.
Compact Power for Everyday Use
With its 3/8-inch drive size, the ZAW-410B is designed for medium-duty applications, offering enough torque to remove stubborn fasteners without overwhelming delicate parts. The two hammer system ensures even torque delivery, reduces vibration, and protects the tool’s internal components.
Durable and Workshop-Ready
Manufactured with a high-strength alloy housing and heat-treated internal parts, this impact wrench is engineered to withstand daily use in demanding environments. It’s a dependable choice for both professional workshops and industrial assembly lines.
Side Exhaust for Cleaner Operation
The side exhaust system channels air away from the work surface, helping to keep dust and debris under control while preventing air from blowing directly toward the operator. This makes the ZAW-410B safer and cleaner to use, especially in sensitive or confined areas.
Practical Work Examples:
-
Automotive Repairs: Loosening brake caliper bolts, engine mounts, and drivetrain fasteners.
-
Motorcycle and Light Vehicle Service: Removing axle nuts, handlebar bolts, and suspension fasteners.
-
Industrial Assembly: Securing bolts on machinery frames, conveyor systems, and equipment housings.
-
Maintenance Work: Servicing pumps, compressors, and small generators.
-
Confined Space Access: Working inside engine compartments, behind panels, and within machine enclosures.
Technical Specifications:
-
Drive Size: 3/8 inch
-
Impact Mechanism: Two Hammer
-
Exhaust Type: Side exhaust
-
Construction: High-strength alloy housing with heat-treated internals
-
Application Range: Medium-duty fastening for automotive, industrial, and equipment repair
Key Benefits:
-
Two hammer mechanism for smooth, consistent torque
-
Balanced power-to-weight ratio for comfortable extended use
-
Durable construction for long-term reliability
-
Side exhaust for safer and cleaner operation
-
Compact design for better access in tight spaces
Specification:
- Bolt Size Capacity: M10
- Working Torque: 59(80)ft-lb(Nm)
- MAX. Torque: 148(200)ft-lb(Nm)
- Free Speed: 8300rpm
- Air Consumption: 212(7.5)l/min(cfm)
- Overall Length: 7.48(190)inch(mm)
- Air Inlet: 1/4P.T
- Net Weight: 2.16(0.98)lb(kg)
- Sound Level: 94db(A)
| Model | Bolt Size Capacity |
Working Torque ft-lb(Nm) |
MAX. Torque ft-lb(Nm) |
Free Speed rpm |
Air Consumption l/min(cfm) |
Overall Length inch(mm) |
Air Inlet P.T |
Net Weight lbs(kgs) |
Sound Level db(A) |
| ZAW-412B2 | M8 | 20(27) | 26(35) | 11000 | 127(4.5) | 7.01(178) | 1/4 | 1.5(0.68) | 89 |
| ZAW-412B3 | M8 | 20(27) | 26(35) | 11000 | 127(4.5) | 7.01(178) | 1/4 | 1.5(0.68) | 89 |
| ZAW-417B | M10 | 59(80) | 148(200) | 8000 | 212(7.5) | 8.86(225) | 1/4 | 2.36(1.07) | 90 |
| ZAW-910B1 | M10 | 59(80) | 96(130) | 8000 | 184(6.5) | 9.06(230) | 1/4 | 2.65(1.2) | 80 |
| ZAW-410B | M10 | 59(80) | 148(200) | 8300 | 212(7.5) | 7.48(190) | 1/4 | 2.16(0.98) | 94 |
| ZAW-421B3 | M10~M12 | 66(90) | 177(240) | 8000 | 283(10) | 7.48(190) | 1/4 | 2.34(1.06) | 97 |
| ZAW-211B | M12~M14 | 118(160) | 207(280) | 5500 | 240(8.5) | 10.24(260) | 1/4 | 3.75(1.7) | 85 |
| ZAW-241B | M16~M18 | 236(320) | 369(500) | 4400 | 283(10) | 13(330) | 1/4 | 7.5(3.4) | 95 |
Recommended Gauge Air Pressure: 60~90psi
