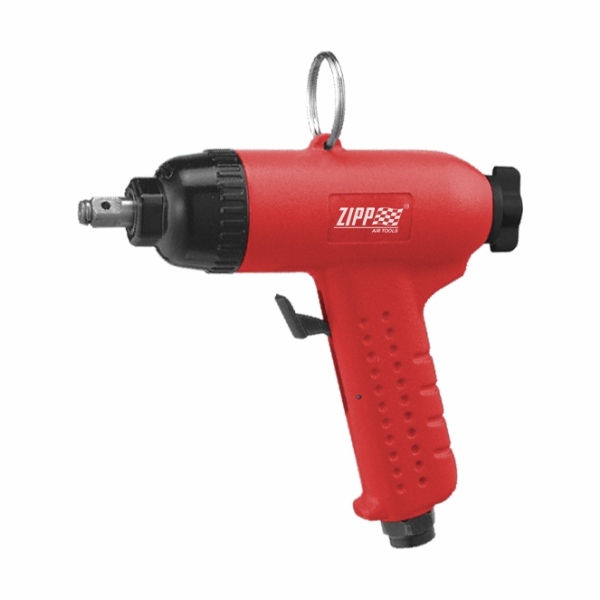

ZAW-417SL1 3/8 inch Air Wrench – Two Hammer Type, Side Exhaust
The ZAW-417SL1 Air Wrench is expertly engineered for high-performance fastening and loosening applications, combining power, efficiency, and operator comfort. Built with a two-hammer impact mechanism, it delivers rapid torque output, making it ideal for demanding tasks. The side exhaust system enhances safety by directing exhaust air away from the operator, while its ergonomic design ensures ease of use during extended operations.
Key Features:
- Two-Hammer Impact Mechanism
- Offers consistent and powerful torque with minimized vibration.
- Ensures high efficiency for repetitive heavy-duty fastening tasks.
- Side Exhaust Configuration
- Directs air exhaust away from the user and workpiece.
- Maintains a clean and safe working environment.
- Ergonomic Design
- Compact, lightweight construction reduces operator fatigue.
- Provides a comfortable grip for enhanced handling and precision.
- Heavy-Duty Durability
- Constructed with robust materials to withstand harsh industrial conditions.
- Ensures reliable performance over an extended lifespan.
- Adjustable Power Settings
- Allows users to tailor torque output for specific applications.
Technical Specifications:
- Drive Size: 3/8 inch
- Mechanism Type: Two-hammer impact system for superior performance.
- Exhaust Type: Side exhaust for safe and efficient air displacement.
- Weight: Lightweight for improved maneuverability.
- Noise Level: Low-noise operation suitable for industrial environments.
- Air Inlet Size: Compatible with standard pneumatic systems.
Applications:
- Automotive Services
- Perfect for tire changes, engine work, and general maintenance tasks.
- Industrial Assembly
- It is ideal for fast and accurate fastening in assembly lines.
- Heavy Equipment Maintenance
- Handles bolts, nuts, and other fasteners in machinery repair and assembly.
- Construction Projects
- Supports rugged use for on-site construction and installation tasks.
Advantages of the ZAW-417SL1 Air Wrench:
- High Efficiency: The two-hammer mechanism delivers quick and consistent torque.
- Enhanced Safety: Side exhaust ensures air and debris are directed away from the user.
- Durable Design: Built for reliability under demanding conditions.
- Comfortable Operation: Ergonomic and lightweight for extended use without discomfort.
- Versatile Applications: Adjustable settings and compact size for use in various tasks.
Why Choose the ZAW-417SL1 Air Wrench?
The ZAW-417SL1 is a powerful and versatile tool for professionals across industries. Its two-hammer mechanism ensures dependable torque output, while its side exhaust design prioritizes safety and cleanliness. Whether in automotive workshops, industrial facilities, or construction sites, this air wrench combines reliability, durability, and user comfort for exceptional performance.
Specification:
- Bolt Size Capacity: M10
- Working Torque: 59(80)ft-lb(Nm)
- MAX. Torque: 148(200)ft-lb(Nm)
- Free Speed: 8000rpm
- Air Consumption: 226(8)l/min(cfm)
- Overall Length: 7.2(183)inch(mm)
- Air Inlet: 1/4P.T
- Net Weight: 2.65(1.2)lb(kg)
- Sound Level: 94dB(A)
| Model | Bolt Size Capacity |
Working Torque ft-lb(Nm) |
MAX. Torque ft-lb(Nm) |
Free Speed rpm |
Air Consumption l/min(cfm) |
Overall Length inch(mm) |
Air Inlet P.T |
Net Weight lbs(kgs) |
Sound Level dB(A) |
| ZAW-412LB2 | M8 | 20(27) | 26(35) | 13000 | 198(7) | 5.71(145) | 1/4 | 1.98(0.9) | 88 |
| ZAW-412LB3 | M8 | 20(27) | 26(35) | 13000 | 198(7) | 5.71(145) | 1/4 | 1.98(0.9) | 88 |
| ZAW-514LB2 | M8 | 20(27) | 22(30) | 11500 | 170(6) | 6.1(155) | 1/4 | 1.98(0.9) | 87 |
| ZAW-514LB3 | M8 | 20(27) | 22(30) | 11500 | 170(6) | 6.1(155) | 1/4 | 1.98(0.9) | 87 |
| ZAW-417SL1 | M10 | 59(80) | 148(200) | 8000 | 226(8) | 7.2(183) | 1/4 | 2.65(1.2) | 94 |
| ZAW-410LB | M10 | 59(80) | 148(200) | 7700 | 198(7) | 7.28(185) | 1/4 | 2.87(1.3) | 89 |
| ZAW-517LB | M12 | 74(100) | 140(190) | 8000 | 283(10) | 6.3(160) | 1/4 | 2.65(1.2) | 87 |
| ZAW-421LB3 | M12 | 81(110) | 177(240) | 8000 | 283(10) | 7.28(185) | 1/4 | 2.89(1.34) | 93 |
Recommended Gauge Air Pressure: 60~90psi
