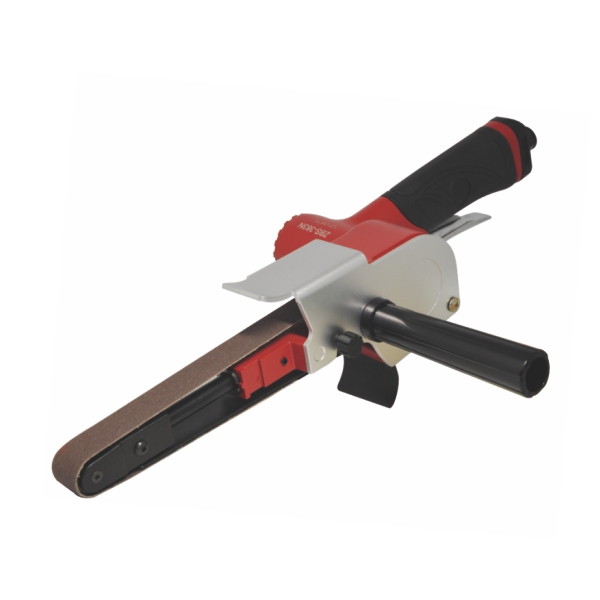

ZBS-383N2 Air Belt Sander
- Size of Belt : 8X475 mm
- Low Vibration & Ergonomic handle design
- Easy changing sand belt
- 360º degree sanding direction
- Safety click design
- High output motor
- 360º rotation
- Safety cover
- Low noise level
- Long trigger design for operator’s comfort
- Side handle
Specification:
- Wheel Material: STEEL WHEEL
- Size of Belt: 20X520 mm
- Free Speed: 17000 rpm
- Overall Length: 16.02(407) inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT
- Air Hose (I.D.): 3/8″
- Avg. Air Cons.: 4 cfm
- Net Weight: 0.99(2.18) kgs(lbs)
| Model | Wheel Material | Size of Belt mm | Free Speed rpm | Overall Length inch(mm) | Air Inlet Size inch-NPT/PT | Air Hose (I.D.) | Avg. Air Cons. cfm | Net Weight lbs(kgs) |
| ZBS-382A | RUBBER WHEEL | 10X330 | 17000 | 12.83(326) | 1/4 | 3/8″ | 4 | 1.94(0.88) |
| ZBS-382N | STEEL WHEEL | 10X330 | 17000 | 12.83(326) | 1/4 | 3/8″ | 4 | 1.94(0.88) |
| ZBS-382N1 | STEEL WHEEL | 6X457 | 17000 | 15.35(390) | 1/4 | 3/8″ | 4 | 2.86(1.3) |
| ZBS-382N2 | STEEL WHEEL | 20X520 | 17000 | 16.02(407) | 1/4 | 3/8″ | 4 | 2.18(0.99) |
| ZBS-382N3 | STEEL WHEEL | 13X457 | 17000 | 15.35(390) | 1/4 | 3/8″ | 4 | 2.07(0.94) |
| ZBS-382N4 | STEEL WHEEL | 13X610 | 17000 | 17.72(450) | 1/4 | 3/8″ | 4 | 2.18(0.99) |
| ZBS-382N5 | STEEL WHEEL | 13X330 | 17000 | 12.83(326) | 1/4 | 3/8″ | 4 | 1.98(0.9) |
| ZBS-382N6 | STEEL WHEEL | 15X475 | 17000 | 15.35(390) | 1/4 | 3/8″ | 4 | 1.98(0.9) |
| ZBS-382N7 | STEEL WHEEL | 8X475 | 17000 | 15.35(390) | 1/4 | 3/8″ | 4 | 2.86(1.3) |
| ZBS-383 | RUBBER WHEEL | 20X520 | 17000 | 16.02(407) | 1/4 | 3/8″ | 4 | 2.93(1.33) |
| ZBS-383A | RUBBER WHEEL | 20X520 | 17000 | 16.02(407) | 1/4 | 3/8″ | 4 | 2.93(1.33) |
| ZBS-383N | STEEL WHEEL | 20X520 | 17000 | 16.02(407) | 1/4 | 3/8″ | 4 | 2.93(1.33) |
| ZBS-383A1 | RUBBER WHEEL | 20X520 | 17000 | 16.02(407) | 1/4 | 3/8″ | 4 | 2.93(1.33) |
| ZBS-383A2 | RUBBER WHEEL | 20X520 | 17000 | 16.02(407) | 1/4 | 3/8″ | 4 | 2.93(1.33) |
| ZBS-383N1 | STEEL WHEEL | 20X330 | 17000 | 12.8(325) | 1/4 | 3/8″ | 4 | 1.98(0.9) |
| ZBS-383N2 | STEEL WHEEL | 20X520 | 17000 | 16.02(407) | 1/4 | 3/8″ | 4 | 2.18(0.99) |
| ZBS-385A | RUBBER WHEEL | 30X540 | 13000 | 16.34(415) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
| ZBS-385A1 | RUBBER WHEEL | 20X520 | 13000 | 16.34(415) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
| ZBS-385N | STEEL WHEEL | 30X540 | 13000 | 16.34(415) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
| ZBS-385Z2A | RUBBER WHEEL | 20X520 | 13000 | 16.34(415) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
| ZBS-385Z2N | STEEL WHEEL | 20X520 | 13000 | 16.34(415) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
| ZBS-385Z3A | RUBBER WHEEL | 30X540 | 13000 | 16.34(415) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
| ZBS-385Z3N | STEEL WHEEL | 30X540 | 13000 | 16.34(415) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
