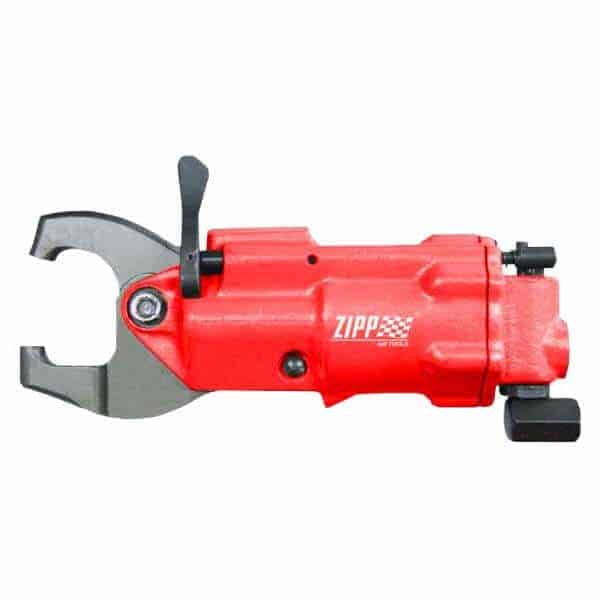

ZCR030A15 – Compression Rivet Squeezer (Single Cylinder)





The ZCR030A15 Compression Rivet Squeezer is a compact single-cylinder pneumatic riveting tool designed for precision riveting applications. With a 15 kN compression force, this model is ideal for light to medium-duty riveting tasks, delivering consistent, distortion-free results across a variety of materials. Engineered for aerospace, automotive, rail, and general manufacturing, the ZCR030A15 combines reliable performance with user-friendly operation, ensuring maximum productivity and operator comfort.





Key Features





• Single Cylinder Design – Compact and lightweight for easy handling.

• 15 kN Compression Force – Suitable for smaller rivet sizes and lighter materials.

• Precision Control – Ensures uniform rivet installation without material damage.

• Durable Construction – Designed for continuous industrial use.

• Operator-Friendly – Low vibration and ergonomic grip for reduced fatigue.

• Consistent Force Output – Reliable performance across repetitive cycles.



Advantages & Benefits





• Compact & Lightweight – Easy to maneuver in tight or confined spaces.

• Reliable Riveting – Provides consistent results with minimal rework.

• High Productivity – Simple pneumatic actuation speeds up assembly processes.

• Operator Comfort – Reduces hand strain during extended use.

• Cost-Effective Solution – An efficient tool for small- to medium-sized rivet tasks.





Applications





• Aerospace Assembly & MRO – Ideal for smaller airframe rivets and precision repairs.

• Automotive Manufacturing – Body panel riveting and component fastening.

• Rail & Shipbuilding – Suitable for lighter structural assembly tasks.

• Metal Fabrication – Perfect for riveting sheet metal and alloy parts.

• General Industrial Use – Supports a wide range of light-to-medium duty riveting applications.





Why Choose the ZCR030A15?





The ZCR030A15 Single Cylinder Compression Rivet Squeezer is the go-to tool for applications requiring accuracy, control, and portability. With its 15 kN compression force, it is ideally suited for smaller rivets and light-to-medium duty tasks, making it an excellent solution for industries demanding precision without the bulk of larger riveting tools.

Alligator Yoke Riveter





Features





• For squeezing a large variety of sizes and types of rivets.
• Intense squeeze action is easily controlled to provide uniformity and accuracy of work.
• Ideally used for dimpling, punching, and pressing.
• Extra powerful, portable tandem cylinder also available with double the compressive force for large riveting capacity.





Specification:





• Rivet Capacity Diameter: 1/8(3.17) Alum
• Rivet Capacity Diameter: 3/32(2.36) Steel
• Standard Yoke Dimensions: 1-1/2(38.1) Reach
• Max Force: 3000(13.35) lb(KN)
• Set Holder: 5/8(15.9) Max Travel
• Set Holder: 0.05(1.3) Stroke at Max Power
• Overall Length: 9-3/16(230) inch(mm)
• Weight: 3.75(1.7) lbs(kgs)

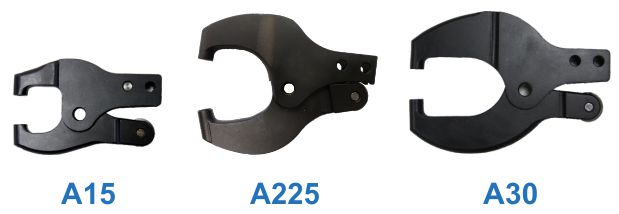

Model	Reach inch(mm)	Gap inch(mm)	Closed Height inch(mm)
A15	1.5(38.1)	0.89(22.6)	0.875(22.2)
A225	2.25(57.2)	0.89(22.6)	0.875(22.2)
A30	3(76.2)	0.89(22.6)	0.875(22.2)







Model	Rivet Capacity Diameter		Standard Yoke Dimensions Reach	Max Force lb(kN)	Set Holder		Overall Length inch(mm)	Weight With Yoke lbs(kgs)
	Alum	Steel			Max Travel	Stroke at Max Power
ZCR030A15	1/8(3.2)	3/32(2.4)	1-1/2(38.1)	3000(13.35)	5/8(15.9)	0.05(1.3)	9-3/16(230)	3.75(1.7)
ZCR030A225	3/32(2.4)	1/16(1.6)	2-1/4(57.1)	2200(9.79)	7/8(22.2)	0.094(2.4)	10-1/4(260)	4.25(1.9)
ZCR030A30	3/32(2.4)	1/16(1.6)	3(76.2)	1800(8)	1-1/4(31.8)	0.05(1.3)	10-3/4(270)	4.5(2.1)
ZCR060A15	3/16(4.8)	5/32(4)	1-1/2(38.1)	6000(26.7)	5/8(15.9)	0.05(1.3)	11-3/16(280)	4.75(2.2)
ZCR060A225	5/32(4.0)	1/8(3.2)	2-1/4(57.1)	4300(19.1)	7/8(22.2)	0.094(2.4)	12-29/32(328)	5.25(2.4)
ZCR060A30	1/8(3.2)	3/32(2.4)	3(76.2)	3400(15.1)	1-1/4(31.8)	0.05(1.3)	13-1/2(340)	5.5(2.5)
