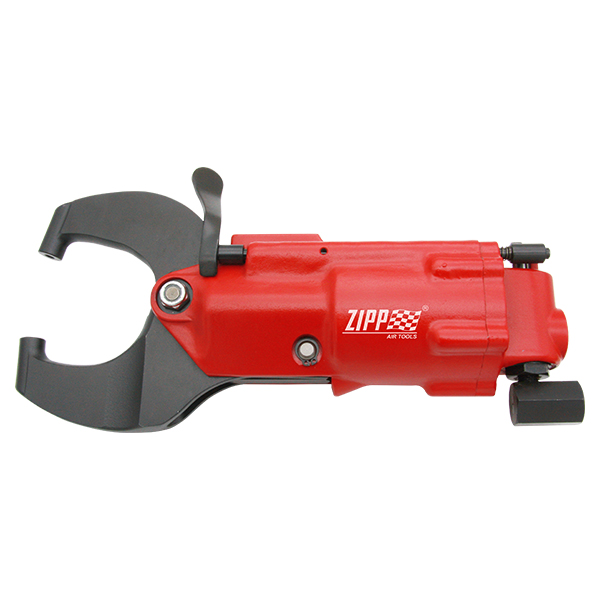

ZCR030A225 Compression Rivet Squeezer – Single Cylinder
The ZCR030A225 Compression Rivet Squeezer is a robust, high-performance tool engineered for precision riveting applications. It is designed with a single-cylinder mechanism and offers powerful compression force, making it suitable for professional use in aerospace, automotive, and manufacturing industries. This tool ensures consistent and reliable performance when installing rivets in various materials and assemblies.
Key Features
- Single-Cylinder Compression Design
- Provides efficient and consistent force for securing rivets in one smooth operation.
- It is ideal for tasks requiring precise and uniform rivet installation.
- Compact and Lightweight Construction
- Designed for ease of handling and maneuverability, even in tight or hard-to-reach areas.
- A lightweight yet durable body reduces operator fatigue during extended use.
- High Compression Force
- Delivers up to 2,200 lbs (approx. 9.79 Kn) of squeezing force, ensuring secure and reliable rivet installation in various materials, including aluminum, steel, and composites.
- Adjustable Yoke
- The adjustable yoke accommodates various rivet lengths and sizes, providing versatility for different applications.
- Enables quick setup and changeovers to maintain productivity.
- Ergonomic Design
- Features a comfortable grip and intuitive operation, minimizing strain and improving control.
- It is ideal for both bench-top and on-site applications.
- Durable Build Quality
- Constructed from high-strength materials to ensure long-lasting performance and resistance to wear and tear in demanding environments.
- It requires minimal maintenance and reduces downtime and operational costs.
Applications
- Aerospace: Securing high-precision rivets in airframes, panels, and structural components.
- Automotive: Riveting body panels, interior components, and structural assemblies.
- Manufacturing: Fabricating and assembling metal and composite parts in industrial settings.
- Repair and Maintenance: Performing riveting tasks in repair shops, workshops, and on-site locations.
Why Choose the ZCR030A225?
- Consistency: Ensures even and reliable rivet compression for quality results.
- Versatility: Compatible with various rivet sizes and materials, making it suitable for diverse applications.
- Efficiency: Streamlines riveting operations, reducing time and effort compared to manual tools.
- Durability: Engineered for long-term performance, even in rigorous industrial environments.
The ZCR030A225 Compression Rivet Squeezer – Single Cylinder is a trusted solution for professionals seeking precision, efficiency, and reliability in riveting tasks. Whether you’re assembling components for aircraft, vehicles, or industrial equipment, this tool is built to meet your demands and exceed your expectations.
“Alligator” Yoke Riveters
Features
- It is used for squeezing various sizes and types of rivets.
- Decisive squeeze action is easily controlled to provide uniformity and accuracy of work.
- Ideally, it is used for dimpling, punching, and pressing.
- An extra powerful, portable tandem cylinder with double the compressive force for a large riveting capacity is also available.
Specification:
- Rivet Capacity Diameter: 3/32(2.4) Alum
- Rivet Capacity Diameter: 1/16(1.6) Steel
- Standard Yoke Dimensions: 2-1/4(57.1) Reach
- Max Force: 2200(9.79) lb(KN)
- Set Holder: 7/8(11.1) Max Travel
- Set Holder: 0.094(2.4) Stroke at Max Power
- Overall Length: 10-1/4(260) inch(mm)
- Weight: 4.25(1.9) lbs(kgs)
Model | Reach inch(mm) | Gap inch(mm) | Closed Height inch(mm) |
A15 | 1.5(38.1) | 0.89(22.6) | 0.875(22.2) |
A225 | 2.25(57.2) | 0.89(22.6) | 0.875(22.2) |
A30 | 3(76.2) | 0.89(22.6) | 0.875(22.2) |
Model | Rivet Capacity Diameter | Standard Yoke Dimensions Reach | Max Force lb(kN) | Set Holder | Overall Length inch(mm) | Weight With Yoke lbs(kgs) | ||
Alum | Steel | Max Travel | Stroke at Max Power | |||||
ZCR030A15 | 1/8(3.2) | 3/32(2.4) | 1-1/2(38.1) | 3000(13.35) | 5/8(15.9) | 0.05(1.3) | 9-3/16(230) | 3.75(1.7) |
ZCR030A225 | 3/32(2.4) | 1/16(1.6) | 2-1/4(57.1) | 2200(9.79) | 7/8(22.2) | 0.094(2.4) | 10-1/4(260) | 4.25(1.9) |
ZCR030A30 | 3/32(2.4) | 1/16(1.6) | 3(76.2) | 1800(8) | 1-1/4(31.8) | 0.05(1.3) | 10-3/4(270) | 4.5(2.1) |
ZCR060A15 | 3/16(4.8) | 5/32(4) | 1-1/2(38.1) | 6000(26.7) | 5/8(15.9) | 0.05(1.3) | 11-3/16(280) | 4.75(2.2) |
ZCR060A225 | 5/32(4.0) | 1/8(3.2) | 2-1/4(57.1) | 4300(19.1) | 7/8(22.2) | 0.094(2.4) | 12-29/32(328) | 5.25(2.4) |
ZCR060A30 | 1/8(3.2) | 3/32(2.4) | 3(76.2) | 3400(15.1) | 1-1/4(31.8) | 0.05(1.3) | 13-1/2(340) | 5.5(2.5) |
