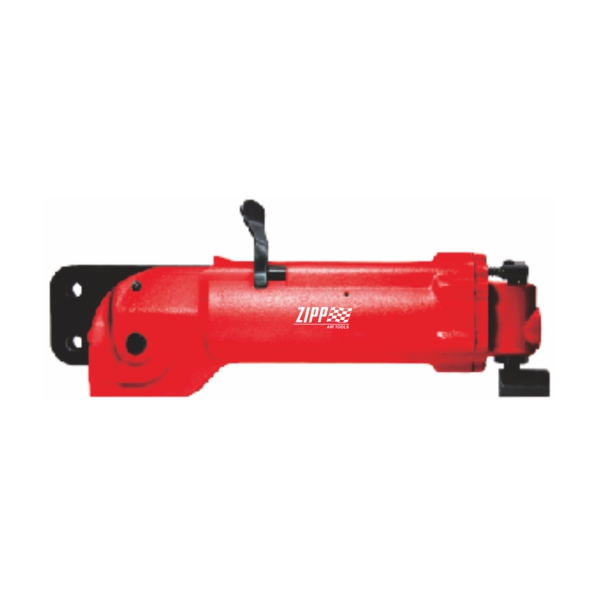

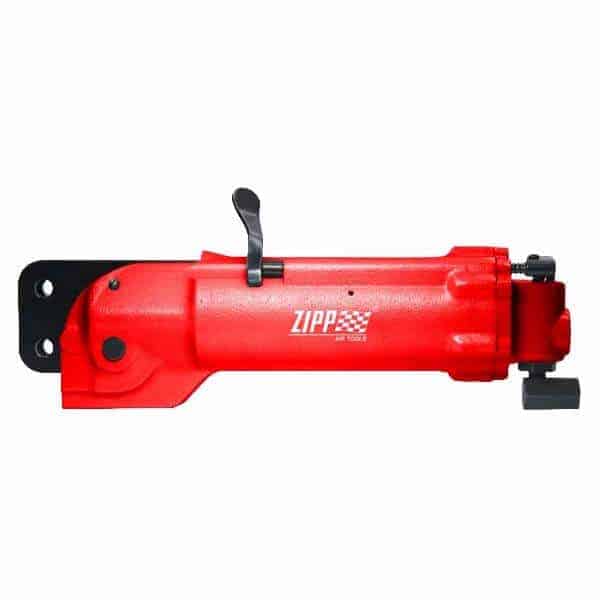

ZCR060 – Compression Rivet Squeezer





The ZCR060 Compression Rivet Squeezer is a high-powered pneumatic riveting tool designed to deliver exceptional squeezing force and precision. Built with a tandem cylinder system, it provides superior power for installing larger and tougher rivets, making it ideal for aerospace, shipbuilding, automotive, and heavy equipment applications. With its combination of strength, durability, and ergonomic design, the ZCR060 ensures consistent results in high-demand industrial environments.





Key Features





• Tandem Cylinder Design – Provides maximum squeezing power and consistent force.

• High Compression Force – Ideal for installing medium- to large rivets in demanding applications.

• Precision Riveting – Ensures uniform rivet installation without damaging materials.

• Heavy-Duty Construction – Built for long service life under continuous use.

• Operator-Friendly Design – Balanced, ergonomic, and low-vibration for comfort.

• Consistent Output – Maintains stable performance across repetitive cycles.





Advantages & Benefits





• Extreme Riveting Power – Designed for demanding structural applications requiring maximum force.

• Reliable & Durable – High-quality construction ensures long-term dependability.

• Time-Saving Performance – Quick, efficient operation boosts productivity.

• Enhanced Precision – Produces accurate rivet installations with minimal rework.

• Operator Comfort – Ergonomic design minimizes strain during extended use.

• Versatile Use – Handles a wide range of rivet sizes and materials.





Applications





• Aerospace Industry – Structural riveting for aircraft manufacturing and maintenance.

• Shipbuilding & Rail – Heavy-duty riveting in large-scale structural assemblies.

• Automotive Manufacturing – Strong fastening for chassis and body structures.

• Heavy Equipment Production – Perfect for high-strength assemblies.

• Defense & Industrial Fabrication – Ensures precision and reliability in critical applications.





Why Choose the ZCR060?





The ZCR060 Compression Rivet Squeezer is the ultimate solution for demanding riveting operations. With its robust tandem cylinder design, it delivers superior force and accuracy, ensuring high-quality results every time. Whether for aerospace, automotive, or industrial manufacturing, the ZCR060 is designed to withstand demanding conditions and deliver exceptional performance.

C Yoke Riveter





Features





• Specially designed for airplane construction to ensure fast, economical riveting where a two-man operation is impractical.
• Features an intense, steady, silent squeeze action, which is easily controlled for a large variety of rivets.
• Ideal for dimpling, punching, stamping, and pressing. Widely used for truck, bu,s and automotive applications.
• Extra powerful, portable tandem cylinder also available with double the compressive force for larger riveting capacity.





Specification:





• Rivet Capacity Diameter: 3/16(4.75) Alum
• Rivet Capacity Diameter: 5/32(3.96) Steel
• Standard Yoke Dimensions: 1-1/2(38.1) Reach
• Standard Yoke Dimensions: 11/16(17.45) Gap
• Max Force: 6000(26.7) lb(KN)
• Set Holder: 9/16(14.27) Max Travel
• Set Holder: 0.05(1.3) Stroke at Max Power
• Overall Length: 14(355.6) inch(mm)
• Weight: 5.4(2.49) lbs(kgs)





CP214 Compatible Yoke





Applications









Model	Reach inch(mm)	Gap inch(mm)	A inch(mm)	B inch(mm)
C030C15	1.5(38.1)	1.33(33.8)	2.98(75.6)	3.38(86)
C030C30	3(76.2)	1.33(33.8)	4.43(112.6)	3.29(83.6)
C030C40	4(101.6)	1.33(33.8)	5.89(149.5)	3.76(95.4)
C030L25	2.5(63.5)	1.33(33.8)	3.66(93)	3.98(101)







Model	Rivet Capacity Diameter		Standard Yoke Dimensions		Max Force lb(kN)	Set Holder		Overall Length inch(mm)	Weight With Yoke lbs(kgs)
	Alum	Steel	Reach	Gap		Max Travel	Stroke at Max Power
ZCR030	1/8(3.2)	3/32(2.4)	1-1/2(38.1)	11/16(17.45)	3000(13.35)	9/16(14.27)	0.05(1.3)	10-1/4 (260.35)	4.5(2.04)
ZCR060	3/16(4.8)	5/32(4)	1-1/2(38.1)	11/16(17.45)	6000(26.7)	9/16(14.27)	0.05(1.3)	14(355.6)	5.4(2.49)
