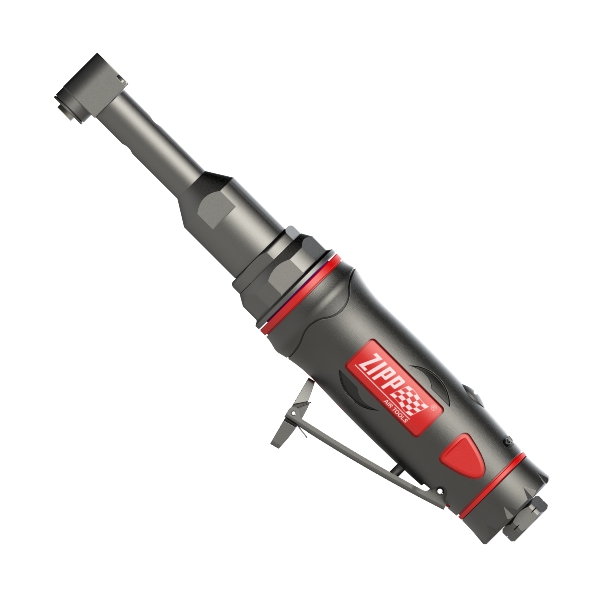

ZD2333 90˚ Industrial Angle Drill – Threaded type
The ZD2333 90° Industrial Angle Drill – Threaded Type is an expertly designed tool to excel in precision drilling tasks in confined and hard-to-reach areas. This drill is specifically crafted for demanding industrial applications, featuring a 90° angled head and a threaded type mechanism for secure bit attachment. Its robust build, ergonomic features, and consistent performance make it a trusted choice for aerospace, automotive, and manufacturing professionals.
Key Features
- 90° Angled Head Design
- Perfect for drilling in tight spaces where straight drills cannot fit.
- Provides optimal control and accessibility for angled applications.
- Threaded Bit Attachment
- The threaded type mechanism ensures a firm, secure fit for compatible bits.
- Prevents loosening during high-torque operations, ensuring precision.
- Durable Construction
- Manufactured using industrial-grade materials for longevity.
- Designed to endure heavy-duty usage in challenging environments.
- Ergonomic Handling
- A lightweight and well-balanced design minimizes user fatigue.
- A comfortable grip enhances control, even during extended operation.
- Quiet and Smooth Performance
- Low noise and vibration levels for a superior user experience.
- Ensures better accuracy and operator comfort.
- High-Powered Motor
- Delivers consistent torque for efficient drilling in tough materials.
- Suitable for repetitive and precision-critical industrial tasks.
Applications
- Aerospace Industry
- It is essential for drilling angled holes in composite materials and alloys.
- Perfect for precision assembly in confined areas.
- Automotive Repairs and Assembly
- It is ideal for accessing tight engine compartments or chassis components.
- Supports high-accuracy tasks in repair and production lines.
- Industrial Maintenance
- Effective for fabricating and repairing machinery with hard-to-reach components.
- Versatile for use with metals, plastics, and other durable materials.
- Construction and Fabrication
- Helpful in creating precise holes in structural or assembly tasks.
- Handles demanding applications on a variety of materials.
Advantages
- Compact Angled Design: The 90° head provides superior access in restricted workspaces.
- Secure Threaded Bit System: Ensures reliable and steady operation during high-torque tasks.
- Industrial-Grade Durability: Built to last in demanding conditions, offering excellent return on investment.
- Ergonomic and Efficient: Reduces strain during extended use while maintaining precise control.
- Quiet and Reliable: Operates smoothly with minimal noise and vibration for operator comfort.
Why Choose the ZD2333?
The ZD2333 90° Industrial Angle Drill—Threaded Type offers unmatched reliability and precision for professionals requiring a durable and high-performance angled drill. Its secure threaded bit system and ergonomic design make it ideal for repetitive industrial tasks and challenging angled drilling jobs. Trusted across industries, the ZD2333 ensures exceptional results in any setting, making it an indispensable tool for industrial specialists.
Specification:
- Spindle Thread: 1/4″-28
- Free Speed: 3600 rpm
- Net Weight: 1.9(0.86) lbs(kgs)
- Overall Length: 259 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two Gear Mechanism |
| Model | Spindle Thread inch |
Chuck/Collet Capacity inch(mm) |
Free Speed rpm |
Net Weight lbs(kgs) |
Overall Length mm |
Avg. Air Cons cfm(l/min) |
Sound Pressure dB(A) |
Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |
 |
 |
 |
| ZD90T Thread type Spindle Thread: 1/4″-28 |
ZD90TL Thread type Spindle Thread: 1/4″-28 |
ZD45T Thread type Spindle Thread: 1/4″-28 |
ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |
 |
 |
 |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |
 |
 |
 |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
