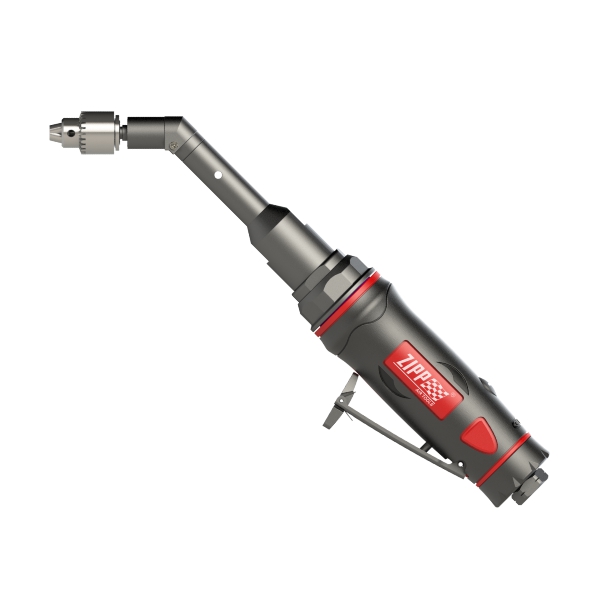

ZD2334 45˚ Industrial Angle Drill – Chuck Type
The ZD2334 45˚ Industrial Angle Drill is a high-performance drilling tool designed for industrial, automotive, and construction applications where standard drills cannot access tight or angled spaces. Its 45-degree angled head allows precise drilling in corners, confined areas, or complex assemblies. Featuring a chuck-type mechanism, the ZD2334 provides secure and versatile bit holding, accommodating a variety of drill bit sizes for different applications. Built with industrial-grade materials and an ergonomic design, this angle drill ensures reliable performance and comfortable handling during prolonged use.
Key Features
-
45° Angle Design – Allows drilling in tight spaces and at challenging angles.
-
Chuck-Type Mechanism – Supports multiple drill bit sizes for versatile operation.
-
Industrial-Grade Construction – Durable components ensure long-lasting reliability.
-
Ergonomic & Balanced Design – Reduces operator fatigue and improves maneuverability.
-
High Torque Output – Efficiently drills wood, metal, and composite materials.
-
Precision Drilling – Ensures accurate and consistent hole placement.
Benefits
-
Access Confined Areas – Ideal for corners, machinery, and assemblies where space is limited.
-
Versatile Bit Compatibility – Chuck-type design accommodates various drill bit sizes.
-
Durable & Reliable – Industrial-grade build guarantees long-term performance.
-
Operator Comfort – Lightweight and ergonomic for extended use.
-
Accurate Drilling – Maintains precision even in angled or hard-to-reach spots.
Applications
-
Industrial Assembly & Maintenance – Drilling in equipment, machinery, and structural components.
-
Automotive Repair – Perfect for bodywork, engine components, and confined spaces.
-
Construction & Fabrication – Drilling in structural frames, metal sheets, and tight corners.
-
Electrical & Plumbing Work – Routing conduits and pipes in restricted areas.
-
DIY & Professional Projects – Reliable drilling for angled or difficult-to-reach areas.
Why Choose the ZD2334 45˚ Industrial Angle Drill – Chuck Type?
The ZD2334 is engineered for professionals who need precision, accessibility, and durability in a compact drilling tool. Its 45-degree angled head, chuck-type mechanism, and ergonomic design make it ideal for industrial, automotive, and construction applications requiring tight-space access and accurate drilling. With long-lasting performance and comfortable handling, the ZD2334 ensures efficient, precise, and reliable results in challenging environments.
Specification:
- Chuck Capacity: 1/8(3) inch(mm)
- Free Speed: 3600 rpm
- Net Weight: 1.9(0.86) lbs(kgs)
- Overall Length: 274 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two-Gear Mechanism |
| Model | Spindle Thread inch |
Chuck/Collet Capacity inch(mm) |
Free Speed rpm |
Net Weight lbs(kgs) |
Overall Length mm |
Avg. Air Cons cfm(l/min) |
Sound Pressure dB(A) |
Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |
 |
 |
 |
| ZD90T Thread type Spindle Thread: 1/4″-28 |
ZD90TL Thread type Spindle Thread: 1/4″-28 |
ZD45T Thread type Spindle Thread: 1/4″-28 |
ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |
 |
 |
 |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |
 |
 |
 |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
