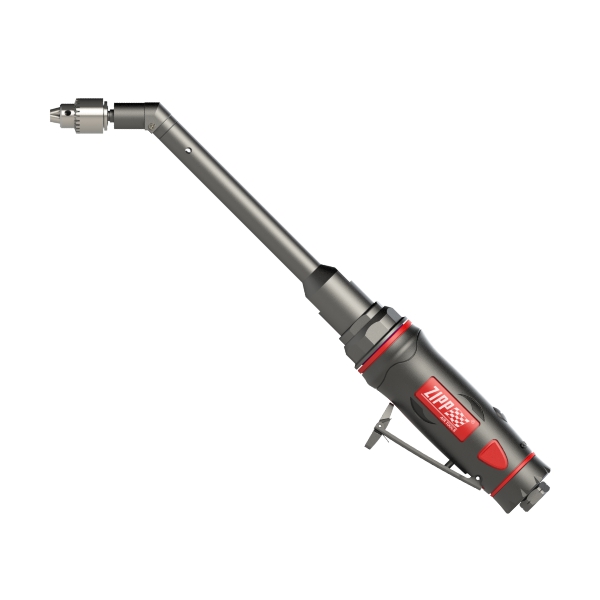

ZD2334L 45˚ Industrial Extended Angle Drill – Chuck type
The ZD2334L 45° Industrial Extended Angle Drill is a versatile, high-performance tool for precise and efficient drilling in angled and confined spaces. With a 45° extended angled head and a chuck-type mechanism, this drill is ideal for industrial applications requiring reliable operation and adaptability. Its ergonomic design and robust construction make it a preferred choice for automotive, aerospace, and heavy equipment professionals.
Key Features
- 45° Extended Angled Head
- Designed for enhanced access to tight and awkward areas.
- Ideal for applications requiring precision angled drilling.
- Chuck-Type Mechanism
- Standard chuck accommodates a variety of drill bits for maximum versatility.
- Enables quick and easy bit replacement, saving time during tasks.
- Industrial-Grade Durability
- Made with premium materials to withstand heavy-duty applications.
- Engineered for consistent performance in demanding industrial environments.
- Ergonomic Design
- Lightweight and well-balanced to reduce operator fatigue.
- Optimized grip and design ensure comfort during prolonged use.
- Low Noise and Vibration
- Operates quietly and with minimal vibration, enhancing the user experience.
- Ensures smoother handling and improved drilling accuracy.
- High Torque Output
- Capable of drilling through rigid materials like metals, plastics, and composites.
- Delivers consistent power for repetitive tasks requiring precision.
Applications
- Automotive Industry
- Excellent for reaching angled or tight spaces in-vehicle components.
- Perfect for installing or removing fasteners in hard-to-access areas.
- Aerospace Engineering
- Essential for precision drilling in lightweight but durable materials.
- It is suited for assembly tasks in confined and angled spaces.
- Heavy Machinery and Equipment
- It is ideal for maintenance and repair work in industrial settings.
- Handles a range of materials, including metal, wood, and composites.
- Fabrication and Assembly
- Useful for production lines requiring repetitive, high-accuracy drilling.
- Effective in creating angled holes for structural or assembly purposes.
Advantages
- Compact Angled Design: The 45° extended head enhances access and versatility for challenging tasks.
- Durable Build: Engineered for rugged industrial use, ensuring long-term reliability.
- User-Friendly Operation: Ergonomic design and chuck-type mechanism promote ease of use and adaptability.
- Efficient and Quiet: Low noise and vibration provide a comfortable working environment.
- Versatile Applications: Suitable for various materials and industries, expanding its functionality.
Why Choose the ZD2334L?
The ZD2334L 45° Industrial Angle Drill combines precision, power, and durability to meet the demands of industrial professionals. Its angled design and chuck-type adaptability make it indispensable for tasks requiring accuracy in restricted or angled spaces. Whether in automotive repairs, aerospace assembly, or general industrial maintenance, the ZD2334L delivers outstanding results quickly and efficiently.
Specification:
- Chuck Capacity: 1/8(3) inch(mm)
- Free Speed: 3600 rpm
- Net Weight: 2.2(1) lbs(kgs)
- Overall Length: 351 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
![]() |
Two Gear Mechanism |
Model | Spindle Thread inch | Chuck/Collet Capacity inch(mm) | Free Speed rpm | Net Weight lbs(kgs) | Overall Length mm | Avg. Air Cons cfm(l/min) | Sound Pressure dB(A) | Vibration Level m/s² |
ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
![]() | ![]() | ![]() | ![]() |
ZD90T Thread type Spindle Thread: 1/4″-28 | ZD90TL Thread type Spindle Thread: 1/4″-28 | ZD45T Thread type Spindle Thread: 1/4″-28 | ZD45TL Thread type Spindle Thread: 1/4″-28 |
![]() | ![]() | ![]() | ![]() |
ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
![]() | ![]() | ![]() | ![]() |
ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
