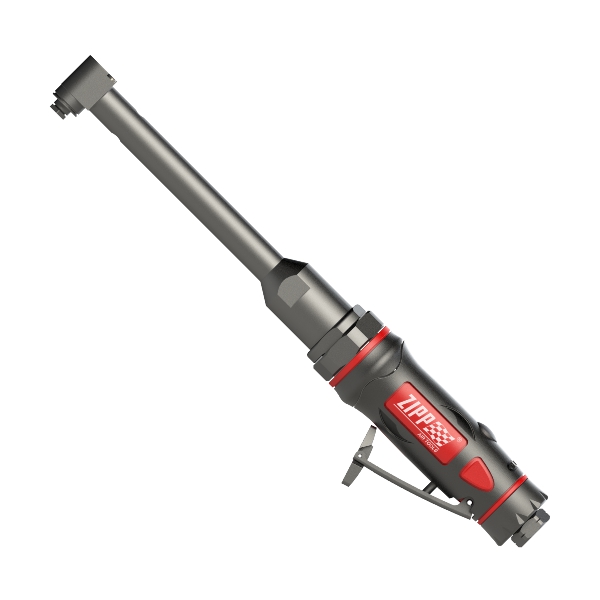

ZD2349L 90˚ Industrial Angle Drill – Collet Type
The ZD2349L 90˚ Industrial Angle Drill is a robust, high-precision tool designed to tackle the challenges of tight-space drilling in industrial applications. Featuring a 90-degree angled head, collet-type spindle, and extended body design (Long model), this drill is a go-to solution for professionals in aerospace, automotive, heavy equipment, and maintenance sectors.
Key Features:
🔹 90-Degree Angled Head for Right-Angle Drilling
- Perfect for working in restricted areas where straight drills cannot reach.
- Ideal for tasks such as structural assembly, maintenance, and repair.
🔹 Extended Body Design (L Model)
- The “L” variant offers an extended reach, making it easier to access deep or obstructed drilling points.
- Increases flexibility for complex assemblies.
🔹 Collet-Type Spindle for Precision and Versatility
- Securely holds drill bits and minimizes runout for accurate, clean holes.
- Compatible with various collet sizes to handle different bit types.
🔹 Heavy-Duty Industrial Motor
- Provides consistent power and torque for demanding applications.
- Suitable for continuous, high-volume drilling tasks in tough materials.
🔹 Compact and Ergonomic Form Factor
- Lightweight design reduces operator fatigue during prolonged use.
- Optimized for control, stability, and ease of handling.
🔹 Durable Construction
- Engineered with rugged components to ensure long-lasting performance in harsh environments.
- Built to withstand the rigors of industrial and production settings.
Applications:
✅ Aerospace structure assembly
✅ Automotive bodywork and repair
✅ Industrial equipment installation and maintenance
✅ Fabrication shops
✅ MRO (Maintenance, Repair, and Overhaul)
Why Choose the ZD2349L?
✅ Unmatched Access: The 90˚ angle head, combined with the extended body, allows drilling in areas that other drills can’t reach.
✅ Precision Focused: The collet spindle ensures accurate alignment and minimal wobble.
✅ Heavy-Duty Power: Built for tough jobs, from metalworking to structural assembly.
✅ Operator Comfort: Lightweight and ergonomic design promotes fatigue-free handling.
The ZD2349L 90˚ Industrial Angle Drill – Collet Type is the ideal solution for professionals demanding precision, power, and versatility in tight-space drilling tasks.
- 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each tool
Specification:
- Collet Capacity: 2.4~5.9 mm
- Free Speed: 4000 rpm
- Net Weight: 1.65(0.75) lbs(kgs)
- Overall Length: 308 mm
- Avg. Air Cons: 3(84) cfm(l/min)
- Sound Pressure: 81.5 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two-Gear Mechanism |
| Model | Spindle Thread inch |
Chuck/Collet Capacity inch(mm) |
Free Speed rpm |
Net Weight lbs(kgs) |
Overall Length mm |
Avg. Air Cons cfm(l/min) |
Sound Pressure dB(A) |
Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |
 |
 |
 |
| ZD90T Thread type Spindle Thread: 1/4″-28 |
ZD90TL Thread type Spindle Thread: 1/4″-28 |
ZD45T Thread type Spindle Thread: 1/4″-28 |
ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |
 |
 |
 |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |
 |
 |
 |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
