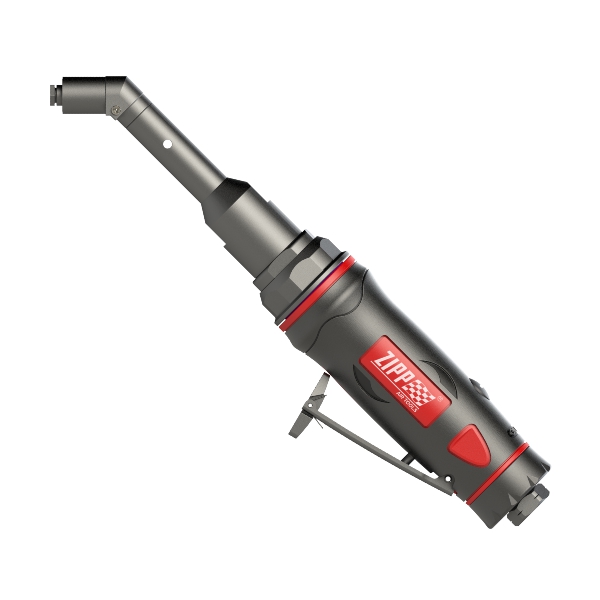

ZD2351 45˚ Industrial Angle Drill – Collet type
The ZD2351 45° Industrial Angle Drill is a professional-grade tool engineered for precision drilling in tight or angular spaces. With its 45° angled head and a reliable collet-type chuck, this drill offers unmatched accuracy and control, making it a top choice for demanding industrial applications. Its compact design and robust construction ensure consistent performance, even in the most challenging environments, such as the automotive, aerospace, manufacturing, and maintenance industries.
Key Features
- 45° Angled Head Design
- Allows easy access to moderately angled and confined spaces.
- It is ideal for applications where straight or 90° drills are impractical.
- Collet-Type Chuck
- It offers secure bit gripping for stable and accurate drilling.
- Compatible with a wide range of drill bit sizes for various tasks.
- Durable Industrial Build
- Engineered for heavy-duty use in professional environments.
- High-quality materials ensure resistance to wear and tear over time.
- Lightweight and Compact
- Slim, ergonomic design minimizes user fatigue during extended operations.
- A compact profile makes it easy to maneuver in tight and awkward spaces.
- Smooth Operation
- Low vibration and reduced noise enhance user comfort.
- Ensures stable performance for precision drilling.
- Reliable Power Output
- Provides consistent torque for tackling demanding drilling tasks with ease.
- Suitable for continuous use in high-pressure industrial settings.
Applications
- Automotive Repair and Assembly
- Perfect for accessing angled areas in engine compartments or chassis work.
- Enhances precision for drilling and fastening operations.
- Aerospace Manufacturing
- Enables precision drilling in airframe components and other intricate structures.
- Suitable for delicate and high-accuracy requirements.
- Industrial Manufacturing
- Designed for assembly lines and production tasks requiring angular drilling.
- Handles drilling in metal, composites, and other materials with ease.
- General Maintenance and Construction
- Versatile for drilling into various materials in tight spaces.
- Ideal for shipbuilding, construction, and repair projects.
Advantages
- Efficient Angled Design: The 45° head offers unique versatility, allowing you to reach spaces other drills cannot.
- Industrial Durability: Built to last, even in demanding and continuous-use environments.
- Operator Comfort: Lightweight and ergonomic for reduced fatigue during extended operations.
- Precision Engineering: The collet chuck provides a reliable bit grip and ensures high drilling accuracy.
- Versatile Applications: Suitable for various industries, including automotive, aerospace, and manufacturing.
Why Choose ZD2351?
The ZD2351 45° Industrial Angle Drill is the go-to tool for professionals who demand precision, durability, and versatility. Its compact, angled design, robust construction, and ergonomic features make it a dependable choice for tackling specialized drilling tasks in tight or angular spaces. Whether in high-precision aerospace work or rugged automotive repairs, this drill delivers superior performance in every application.
- 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each tool
Specification:
- Collet Capacity: 2.4~5.9mm
- Free Speed: 3600 rpm
- Net Weight: 1.9(0.86) lbs(kgs)
- Overall Length: 274 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two Gear Mechanism |
| Model | Spindle Thread inch |
Chuck/Collet Capacity inch(mm) |
Free Speed rpm |
Net Weight lbs(kgs) |
Overall Length mm |
Avg. Air Cons cfm(l/min) |
Sound Pressure dB(A) |
Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |
 |
 |
 |
| ZD90T Thread type Spindle Thread: 1/4″-28 |
ZD90TL Thread type Spindle Thread: 1/4″-28 |
ZD45T Thread type Spindle Thread: 1/4″-28 |
ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |
 |
 |
 |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |
 |
 |
 |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
