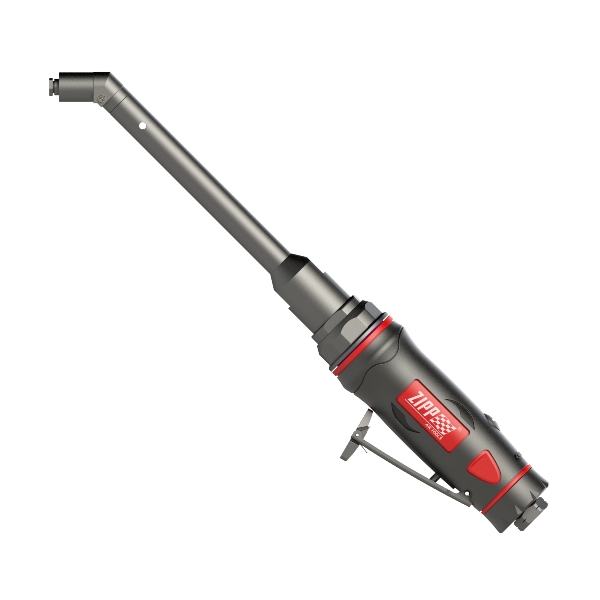

ZD2351L 45˚ Industrial Angle Drill – Collet type
The ZD2351L 45° Industrial Angle Drill is a specialized tool designed for precision drilling in areas that require a unique angular approach. Featuring a 45-degree angle head and collet-type chuck, it offers enhanced versatility for automotive, aerospace, manufacturing, and construction professionals. This industrial-grade drill is built to handle demanding applications and combines a compact design, durability, and ergonomic handling for optimal performance.
Key Features
- 45° Compact Angle Head
- Designed to provide access to moderately angled and confined spaces.
- It is ideal for tasks where traditional or 90° drills cannot operate efficiently.
- Collet-Type Chuck
- Ensures secure and precise gripping of drill bits.
- Compatible with various drill bit sizes, offering flexibility for different applications.
- Industrial-Grade Power
- Delivers high-performance torque for demanding drilling tasks.
- Ensures consistent power output for extended operations in heavy-duty environments.
- Lightweight and Ergonomic Build
- A slim, lightweight design minimizes operator fatigue during prolonged use.
- Ergonomic grip for improved control and comfort in challenging positions.
- Rugged Construction
- High-quality materials for durability and resistance to wear in industrial settings.
- It is built to withstand heavy and continuous use in challenging environments.
- Smooth and Reliable Operation
- Low vibration and noise levels enhance user experience and precision.
- Stable performance reduces operational errors and increases accuracy.
Applications
- Automotive
- Drilling angled components in tight spaces, such as engine bays and structural areas.
- It is ideal for precision assembly and repair work.
- Aerospace
- Perfect for angled drilling in intricate airframe components.
- Ensures precision in applications requiring meticulous accuracy.
- Manufacturing
- Effective in production lines and assembly tasks requiring angular drilling.
- Helpful in fabricating and repairing metal, composites, and other materials.
- Construction and Maintenance
- Suitable for various building materials and tasks in confined or awkward spaces.
- Ideal for angled drilling in shipbuilding, construction, or general repair.
Advantages of ZD2351L
- Unique 45° Angle Design: Provides access to moderately angled areas that straight or 90° drills cannot reach.
- Precision and Flexibility: The collet-type chuck ensures secure and accurate drilling for various bit sizes.
- Heavy-Duty Durability: Designed to withstand industrial-grade wear and tear, ensuring longevity.
- Ease of Use: Lightweight, ergonomic design reduces operator fatigue and improves handling.
Why Choose ZD2351L?
The ZD2351L 45° Industrial Angle Drill is a versatile and reliable solution for precision drilling in complex spaces. Its unique 45-degree head design, industrial durability, and ergonomic features make it the preferred choice for professionals seeking efficiency, accuracy, and reliability. Whether working in automotive repairs, aerospace engineering, or manufacturing, this tool delivers exceptional results in challenging environments.
- 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each tool
Specification:
- Collet Capacity: 2.4~5.9mm
- Free Speed: 3600 rpm
- Net Weight: 2.2(1) lbs(kgs)
- Overall Length: 351 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two Gear Mechanism |
| Model | Spindle Thread inch |
Chuck/Collet Capacity inch(mm) |
Free Speed rpm |
Net Weight lbs(kgs) |
Overall Length mm |
Avg. Air Cons cfm(l/min) |
Sound Pressure dB(A) |
Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |
 |
 |
 |
| ZD90T Thread type Spindle Thread: 1/4″-28 |
ZD90TL Thread type Spindle Thread: 1/4″-28 |
ZD45T Thread type Spindle Thread: 1/4″-28 |
ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |
 |
 |
 |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |
 |
 |
 |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
