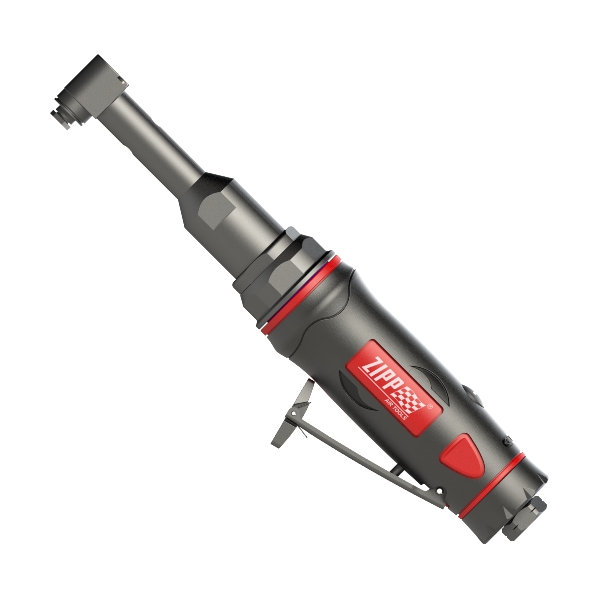

ZD2352 90˚ Industrial Angle Drill – Collet type
The ZD2352 90° Industrial Angle Drill is expertly crafted for precision drilling in tight, hard-to-reach spaces. Featuring a 90° angled head and a collet-type chuck, this tool offers unparalleled accuracy, stability, and ease of operation, making it a staple in industrial, automotive, and aerospace applications. Designed for durability and reliability, the ZD2352 performs consistently even in demanding environments, ensuring top-tier performance and user satisfaction.
Key Features
- 90° Angled Head Design
- It is ideal for accessing confined spaces where straight drills cannot reach.
- Enhances control and precision in angular drilling applications.
- Collet-Type Chuck
- It provides a secure grip for drill bits, minimizing bit slippage.
- Compatible with a range of bit sizes, offering versatility for various drilling tasks.
- Heavy-Duty Construction
- Built with high-grade materials to withstand industrial use.
- Ensures longevity and resistance to wear and tear under intensive workloads.
- Ergonomic and Lightweight
- The compact and lightweight design minimizes user fatigue.
- Ergonomic handle ensures comfort during extended operations.
- Low Vibration and Noise
- Smooth and quiet operation enhances operator comfort.
- It is ideal for precision work requiring steady control.
- Reliable Performance
- Delivers consistent torque and power output for demanding applications.
- Suitable for use on various materials, including metals, composites, and plastics.
Applications
- Automotive Industry
- Perfect for drilling in engine bays and other restricted areas.
- Used for precise and accurate fastening or hole-drilling tasks.
- Aerospace Manufacturing
- Essential for high-precision drilling in tight or intricate structural components.
- Supports delicate applications requiring steady, reliable performance.
- Industrial Fabrication and Assembly
- It is ideal for production lines and assembly tasks in tight, angular positions.
- Performs effectively on metal, wood, and composite materials.
- Maintenance and Repairs
- Versatile for various repair and construction tasks in challenging spaces.
- Perfect for shipbuilding, industrial machinery maintenance, and other tight-access scenarios.
Advantages
- Precision Angled Design: The 90° head allows access to tight corners and hard-to-reach areas, ensuring accurate drilling every time.
- Durability: Industrial-grade materials provide exceptional wear resistance, making them suitable for prolonged and heavy use.
- Ergonomic Handling: Lightweight and well-balanced for comfortable, fatigue-free operation during long sessions.
- Quiet and Smooth: Operates with minimal noise and vibration for enhanced user comfort and control.
- Versatility: Compatible with various drill bits, suitable for multiple industrial and professional applications.
Why Choose the ZD2352?
The ZD2352 90° Industrial Angle Drill is the ultimate tool for professionals who require precise, efficient, and reliable performance in tight spaces. Its angled design, robust construction, and ergonomic features make it the perfect choice for industries that demand high accuracy and consistent quality. Whether in automotive repair, aerospace manufacturing, or general industrial use, the ZD2352 ensures seamless performance and exceptional results in every task.
- 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each tool
Specification:
- Collet Capacity: 2.4~5.9mm
- Free Speed: 3600 rpm
- Net Weight: 1.9(0.86) lbs(kgs)
- Overall Length: 259 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two Gear Mechanism |
| Model | Spindle Thread inch | Chuck/Collet Capacity inch(mm) | Free Speed rpm | Net Weight lbs(kgs) | Overall Length mm | Avg. Air Cons cfm(l/min) | Sound Pressure dB(A) | Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |  |  |  |
| ZD90T Thread type Spindle Thread: 1/4″-28 | ZD90TL Thread type Spindle Thread: 1/4″-28 | ZD45T Thread type Spindle Thread: 1/4″-28 | ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |  |  |  |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |  |  |  |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
