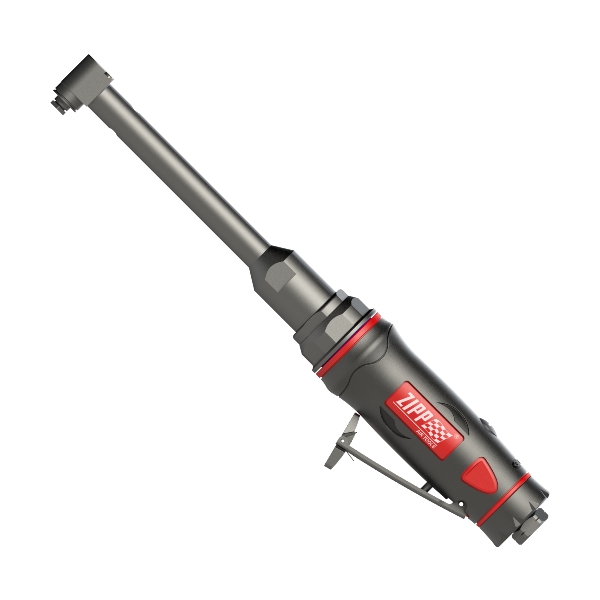

ZD2352L 90˚ Industrial Angle Drill – Collet type
The ZD2352L 90° Industrial Angle Drill is a robust and versatile tool designed for precision drilling in tight and hard-to-reach spaces. With its compact 90-degree angle head and collet-type chuck, this drill is the perfect solution for industrial and professional users needing reliable performance in confined working environments. Built for durability, efficiency, and ergonomic handling, it’s ideal for applications requiring precision and consistent results.
Key Features
- 90° Compact Angle Head
- Designed explicitly for accessing tight and restricted spaces.
- Perfect for drilling tasks in areas where standard drills cannot operate efficiently.
- Collet-Type Chuck
- Ensures secure bit gripping for enhanced accuracy and reduced bit slippage.
- Compatible with a wide range of drill bits, enabling versatile applications.
- Industrial-Grade Performance
- It is engineered for demanding environments, offering an excellent power-to-weight ratio.
- Delivers consistent performance even in extended drilling sessions.
- Lightweight and Ergonomic Design
- Slim and lightweight build for enhanced operator comfort and reduced fatigue.
- Ergonomically optimized grip ensures precise control and handling.
- Durable Construction
- It is built with high-quality materials to withstand harsh industrial conditions.
- Designed for longevity and reliable operation in heavy-duty tasks.
- Smooth and Quiet Operation
- Integrated features to minimize vibration and noise, improving user experience.
- Ideal for precision drilling in sensitive environments.
Applications
- Automotive Maintenance
- Drilling in hard-to-reach areas of engine compartments and structural components.
- It is ideal for assembly and repair tasks requiring precise, angled drilling.
- Aerospace Industry
- Perfect for tight, intricate spaces found in airframes and interior components.
- Ensures accuracy in precision drilling applications.
- Industrial Manufacturing
- Effective in drilling operations for fabrication, assembly, and repair of equipment.
- Suitable for use in tight spaces where standard tools fall short.
- Construction and Shipbuilding
- Versatile for a range of materials and spaces in construction or marine applications.
Advantages of ZD2352L
- Compact and Lightweight: Streamlined design makes it easy to operate in confined spaces for extended periods.
- Precise Bit Control: Collet-type chuck enhances accuracy for demanding drilling tasks.
- Rugged and Reliable: Industrial-grade durability ensures dependable performance.
- Improved Ergonomics: Designed with operator comfort to reduce strain during use.
The ZD2352L 90° Industrial Angle Drill – Collet Type is the go-to tool for professionals requiring unmatched precision and accessibility. Its compact design, robust performance, and user-friendly features make it indispensable in industries where accuracy and reliability are paramount.
- 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each tool
Specification:
- Collet Capacity: 2.4~5.9mm
- Free Speed: 3600 rpm
- Net Weight: 2.2(1) lbs(kgs)
- Overall Length: 327 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two Gear Mechanism |
| Model | Spindle Thread inch |
Chuck/Collet Capacity inch(mm) |
Free Speed rpm |
Net Weight lbs(kgs) |
Overall Length mm |
Avg. Air Cons cfm(l/min) |
Sound Pressure dB(A) |
Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |
 |
 |
 |
| ZD90T Thread type Spindle Thread: 1/4″-28 |
ZD90TL Thread type Spindle Thread: 1/4″-28 |
ZD45T Thread type Spindle Thread: 1/4″-28 |
ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |
 |
 |
 |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) |
ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |
 |
 |
 |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
