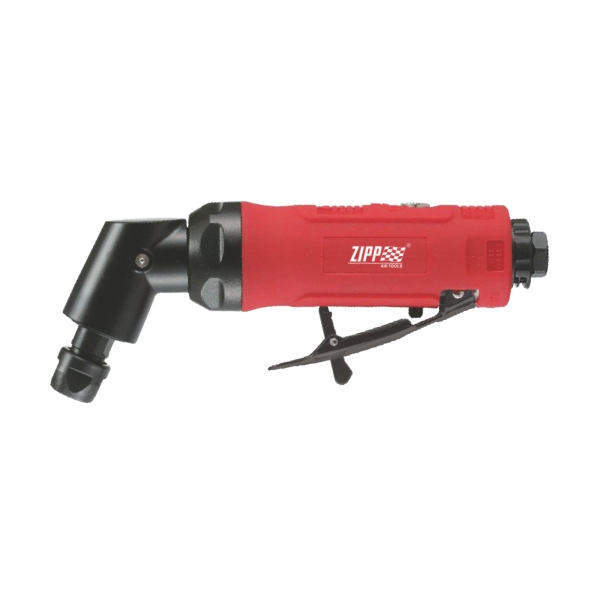

ZDG-3226 – 115° Air Angle Die Grinder
The ZDG-3226 Air Angle Die Grinder is a high-speed 115° pneumatic angle die grinder, engineered for precision grinding and polishing in hard-to-access areas. Its ergonomic design and powerful motor make it an excellent choice for metal finishing, welding cleanup, die and mold work, and sheet metal shaping.
Technical Specifications
| Feature | Specification |
|---|---|
| Motor Power | 0.5 HP |
| Angle Design | 115° head for enhanced reach |
| Collet Sizes | ¼″ (6 mm) compatible (also fits ⅛″) |
| Free Speed | 18,000 RPM |
| Net Weight | 1.5 lbs (0.7 kg) |
| Length | 7 in (178 mm) |
| Air Inlet | ¼″ NPT/PT |
| Min. Hose Size | ⅜″ (10 mm) |
| Air Consumption | ~3.7 CFM |
| Grip | Ergonomic cushion handle |
| Additional Features | Power/speed regulator, rear exhaust, twin-bearing spindle for <0.05 mm concentricity, low vibration |
Advantages & Benefits
-
Improved Reach & Accessibility
The 115° angled head allows for precise operation in recessed or constrained spaces. -
High-Speed and Smooth Performance
With an 18,000 RPM motor and a twin-bearing spindle, it delivers consistent speed and minimal vibration. -
Enhanced Ergonomics & Comfort
Features like the cushioned grip and regulated airflow help reduce operator fatigue during extended use. -
Clean & Safe Operation
The rear exhaust ensures that air and debris are expelled away from the user and the workspace, promoting a cleaner work environment.
Ideal Applications
-
Die & Mold Finishing
-
Sheet Metal Fabrication
-
Cast Iron and Weld Cleanup
-
Automotive and Industrial Surface Preparation
Why Choose the ZDG-3226?
This tool is a standout for professionals who require precision, reach, and speed in tight or awkward workspaces. Its design ensures comfort and control, making it ideal for detailed grinding and polishing tasks.
Quick Model Comparison
| Model | Angle | RPM | Best For |
|---|---|---|---|
| ZDG-3226 | 115° | 18,000 | Confined-angle polishing & cleaning tasks |
| ZAG-341 | 90° | 15,000 | General grinding in tight spaces |
| ZDG-302 | 90° | 18,000 | High-speed finishing where access allows |
- Ergonomic cushion-grip handle-Insulates against cold temperature in the hand, helps ease user fatigue, and insulates against vibration.
- Power/Speed Regulator-Allows for easy rpm adjustment.
- Rear exhaust-Directs the exhaust away from the user and the working areas.
- Twin-Bearing Spindle – This high-quality design results in super-precise spindle concentricity, with less than 0.05mm deviation, and minimal vibration.
- The ZDG-3226 Angle Die Grinder is ideal for high-speed grinding and polishing.
- It can be used in finishing dies and metal molds, as well as for smoothing and shaping sheet metal and cast iron, weld finishing, and other high-speed polishing applications.
- Can use with 1/4″(6mm) or 1/8″(3mm) grinding accessories.
| Model | Collet Size inch(mm) |
Net Weight lbs(kgs) |
Length inch(mm) |
rpm | Air Inlet Size inch-NPT/PT |
Minch Hose Size inch(mm) |
Avg. Air Consumption cfm |
| ZDG-236 | 1/4(6) | 1.1(0.5) | 6.1(155) | 20000 | 1/4 | 3/8(10) | 3 |
| ZP319 | 1/4(6) | 1.5(0.7) | 7(178) | 18000 | 1/4 | 3/8(10) | 3.7 |
| ZDG-3226 | 1/4(6) | 1.5(0.7) | 7(178) | 18000 | 1/4 | 3/8(10) | 3.7 |
| ZAG-341 | Grinding Wheel 2″ | 1.5(0.7) | 7(178) | 15000 | 1/4 | 3/8(10) | 3.5 |
