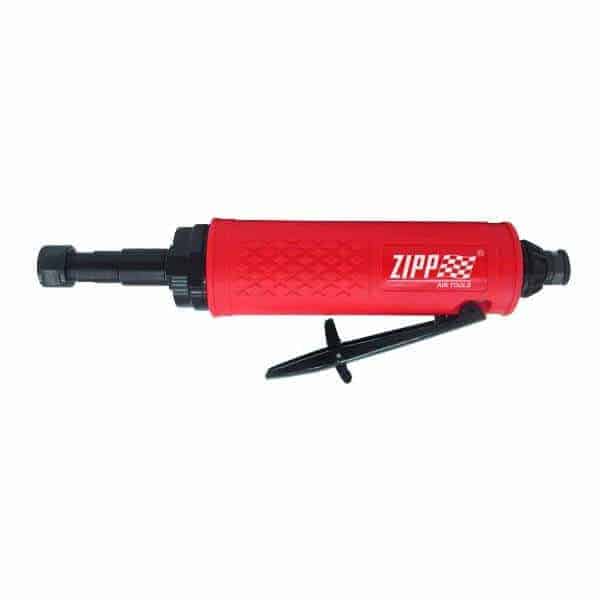

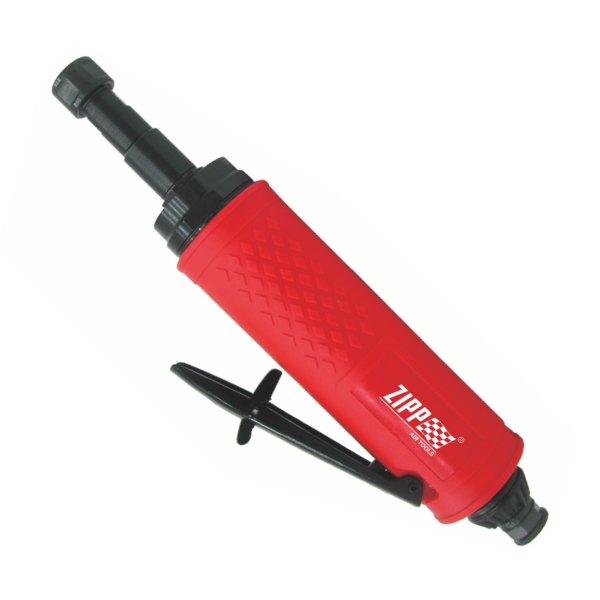

ZDG-S220 – Industrial 1/4 inch Air Die Grinder





Compact, Durable, and Built for Industrial Use





The ZDG-S220 Industrial 1/4 inch Air Die Grinder is a professional-grade pneumatic tool designed for precision grinding, polishing, deburring, and surface preparation. With its high-speed motor, robust construction, and ergonomic design, it delivers the power and control required in demanding applications across metalworking, automotive, aerospace, and maintenance industries.





Key Features





• Powerful Industrial Motor – Ensures consistent high-speed performance for extended workloads.

• 1/4 inch Collet Capacity – Accepts a wide range of abrasives, carbide burrs, and mounted points.

• High Free Speed – Designed for efficient material removal and fine surface finishing.

• Lightweight, Compact Design – Reduces hand fatigue while providing excellent maneuverability.

• Rugged Construction – Built with heavy-duty components for long service life in industrial environments.

• Rear Exhaust System – Keeps work surfaces clean by directing air away from the operator and material.





Benefits





Compact yet powerful design for precision control in tight areas.
Industrial reliability ensures long service life under heavy-duty use.
Versatile collet system supports a wide range of accessories.
Ergonomic grip enhances comfort and reduces fatigue.
The rear exhaust improves safety and cleanliness while in operation.





Applications





• Metal Fabrication – Grinding, deburring, and edge finishing.

• Automotive Repair – Porting, polishing, and rust removal.

• Aerospace & Shipbuilding – Fine grinding and precision surface work.

• Maintenance & Repair – All-purpose grinding, cleaning, and surface prep.





Why Choose the ZDG-S220?





The ZDG-S220 Industrial 1/4 inch Air Die Grinder is engineered for precision, durability, and operator comfort. Whether you’re working in heavy-duty metal fabrication, automotive restoration, or aerospace maintenance, this tool provides the speed, control, and reliability professionals demand.





• It can be used as a sander for expandable / flap wheels and brushes.





P/N: 24182-10 3/8″-24 24182-13 1/2″-20 Optional combo arbor ( interchange with # 24182 arbor set ) with 1/2″-20 or 3/8″-24 female thread for up to 3″ wide wheels with 5/8″ or 1″ diameter center hole for use on model# ZDG-S220, ZDG-S206 & ZDG-S235 grinders.

Specification:





• Size of Collet: 1/4(6) inch(mm)
• Free Speed: 2200 rpm
• Operating Air Pressure: 90(6.2) PSI(bar)
• Avg. Air Consumption: 5(141) cfm(l/min)
• Net Weight: 2(0.92) lbs(kgs)
• Overall Length: 8-5/8(220) inch(mm)
• Min. Hose Size: 3/8(10) inch(mm)
• Air Inlet Size: 1/4 inch-NPT/PT





Model	Size of Collet inch(mm)	Free Speed rpm	Operating Air Pressure psi(bar)	Avg. Air Consumption cfm(l/min)	Net Weight lbs(kgs)	Overall Length inch(mm)	Minch Hose Size inch(mm)	Air Inlet Size inch-NPT/PT
ZDG-S220	1/4(6)	2200	90(6.2)	5(141)	2(0.92)	8-5/8(220)	3/8(10)	1/4
ZDG-S216	1/4(6)	15000	90(6.2)	5(141)	1.8(0.8)	8(200)	3/8(10)	1/4
ZDG-S206	1/4(6)	600	90(6.2)	5(141)	2.6(1.2)	10(250)	3/8(10)	1/4
ZDG-S235	1/4(6)	3500	90(6.2)	5(141)	2(0.92)	8-5/8(220)	3/8(10)	1/4
