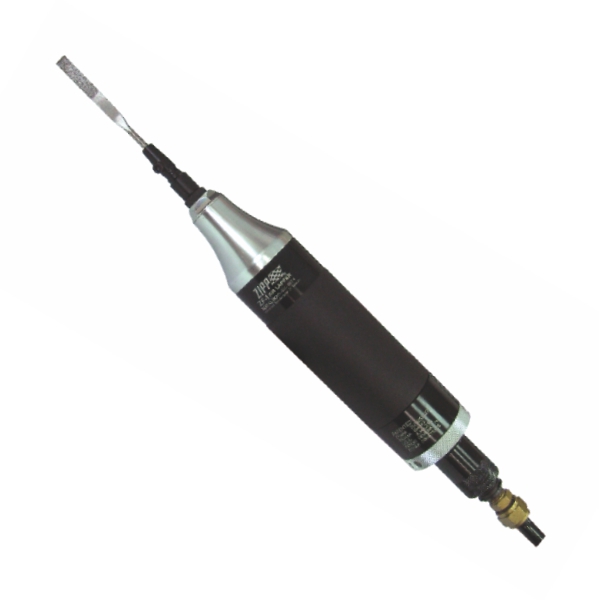

ZF-1 Low Vibration Air Lapper – Precision Redefined
The ZF-1 Low Vibration Air Lapper is a high-performance pneumatic tool engineered for precision lapping and polishing tasks. Designed with advanced vibration-dampening technology, it delivers smooth and consistent results while minimizing operator fatigue. Compact, lightweight, and versatile, the ZF-1 is an essential tool for mold-making, automotive, and fine manufacturing professionals.
Key Features:
- Low Vibration Design
- Significantly reduces vibration levels to improve operator comfort.
- Ensures greater control and accuracy during detailed lapping work.
- Compact and Lightweight
- It is ideal for intricate and confined tasks.
- Easy to maneuver for extended periods without strain.
- High-Performance Pneumatic Motor
- Delivers powerful and consistent operation.
- Engineered for energy efficiency, minimizing air consumption.
- Ergonomic Grip
- Optimized handle design for secure and comfortable use.
- Reduces operator fatigue during prolonged tasks.
- Durable Construction
- Made with robust materials for industrial-grade performance.
- Low maintenance requirements ensure long tool life.
Specifications:
- Stroke Length: Designed for precise lapping and polishing.
- Weight: Lightweight for better handling and reduced fatigue.
- Housing Material: Durable construction for rugged environments.
- Air Consumption: Energy-efficient pneumatic operation.
Applications:
- Mold and Die Polishing
- Achieves precision surface finishes for intricate molds and dies.
- Tool and Die Manufacturing
- It is ideal for fine adjustments and polishing of cutting tools.
- Automotive Applications
- Perfect for finishing and detailing automotive components.
- Jewelry and Fine Crafting
- Excellent for precision polishing in fine detail work.
- General Maintenance
- A versatile tool for polishing and finishing in industrial settings.
Why Choose the ZF-1 Low Vibration Air Lapper?
The ZF-1 Low Vibration Air Lapper combines performance, precision, and operator comfort, making it the ultimate choice for professional lapping and polishing needs. Whether you’re working on detailed molds, fine tools, or delicate surfaces, the ZF-1 ensures accurate and efficient results every time.
Upgrade your workflow with the ZF-1 Low Vibration Air Lapper—your partner in achieving flawless finishes.
Features
- High frequency with 1mm, 5mm & 10mm strokes for various kinds of surface finishing works such as precise and delicate die & mold surface lapping, finishing in confined areas, and general filing works.
- Designed with the following patents to ensure extremely low vibration and operator’s comfort.
。Portable Pneumatic Tool assembled with module units.
。Suspension Vibration-Reducing means for portable pneumatic tools. - Throttle-type flexible hose equipped for the best maneuverability of the tool.
- Adjustable side exhaust directs air away from operators.
- Rubber sleeve designed for operator’s comfort.

- Operating Module
- Rubber Sleeve
- Suspension Damping Spring
- Directional Air Exhaust
- Rotary Switch
- Air Inlet Module
All rotary-type Switches can be converted to safety lever-type Switches upon request.
Features
- It is ideal for precise and delicate filing castings, lapping die, and mold surfaces.
- High frequency with 0.5~1mm stroke for ZF-1, ZF-1T, ZF-1M, ZF-1MT
- High frequency with 3~5mm stroke for ZF-5, ZF-5T, ZF-5M, ZF-5MT
- High frequency with 7~10mm stroke for ZF-10, ZF-10T, ZF-10M, ZF-10MT
Specification:
- Blows Per Minute: 21000 bpm
- Stroke Length: 0.5~1 mm
- Avg. Air Cons.: 4(120) cfm(l/min)
- Net Weight: 1.26(0.57) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 0.8 m/s2
- Sound Pressure: 72 dB(A)
Diamond File For ZF-1, ZF-1T, ZF-1M, ZF-1MT Type Air Lapper, 3mm Shank Diameter
201952
2mm Rectangular Diamond File
201954
4mm Rectangular Diamond File
201956
6mm Rectangular Diamond File
Hard Sponge Sandpaper block
- SB120-5 #120 100mm x 70mm x 25mm
- SB180-5 #180 100mm x 70mm x 25mm
- SB220-5 #220 100mm x 70mm x 25mm
- SB280-5 #280 100mm x 70mm x 25mm
COMPARISON CHARTS WITH COMPETITIVE DESIGNS ARE AVAILABLE UPON REQUEST.
Model | Blows Per Minute bpm | Stroke Length mm | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Vibration m/s² | Sound Pressure dB(A) |
ZF-1 | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-1T | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-5 | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-5T | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-10 | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
ZF-10T | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
ZF-1M | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-1MT | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-5M | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-5MT | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-10M | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
ZF-10MT | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
*Operating Air Pressure: 90psi/6.2bar
