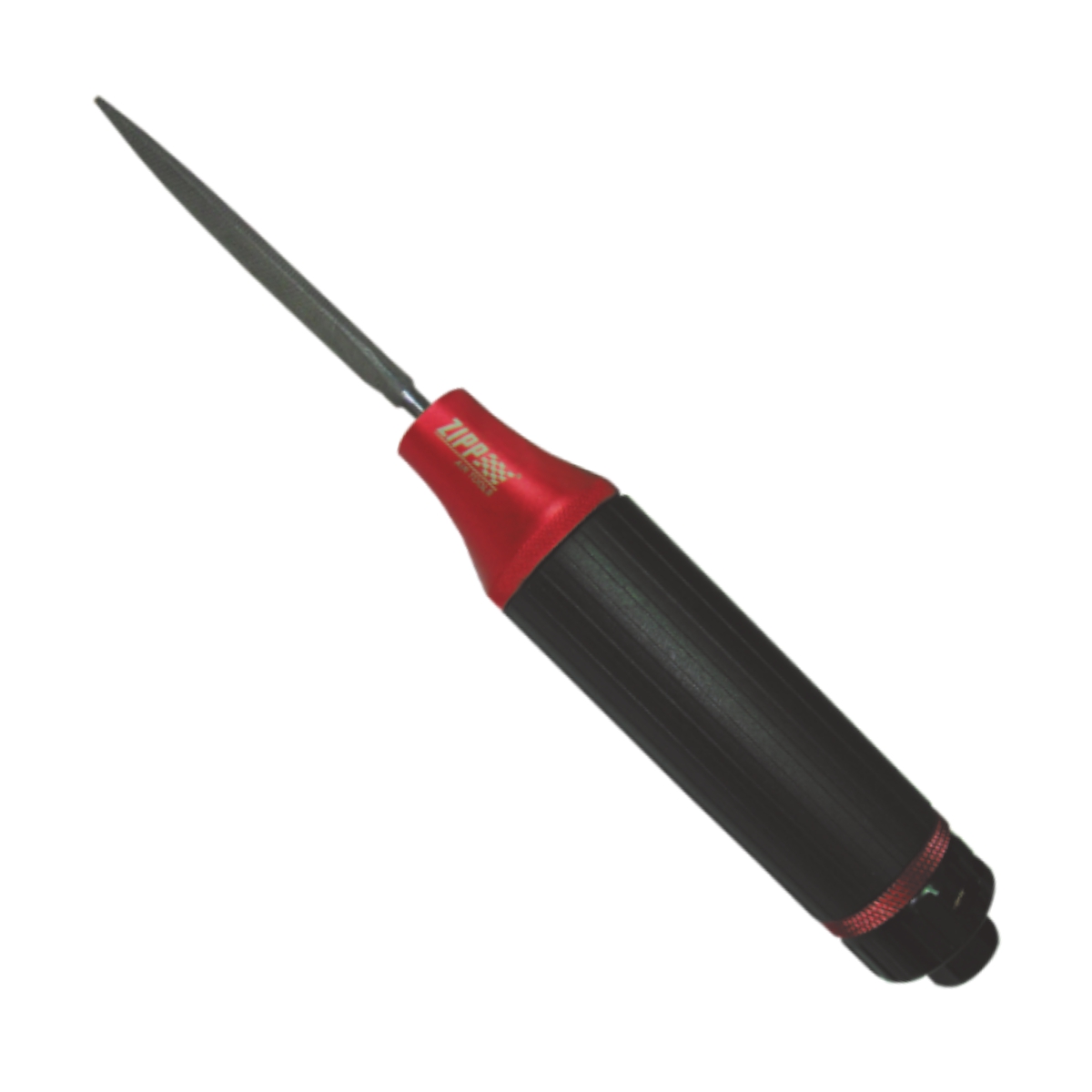

ZF-10M Low Vibration Mini Air File – Precision and Comfort Combined
The ZF-10M Low Vibration Mini Air File is designed for professionals who require precision and reliability in detailed filing tasks. Its advanced low-vibration design enhances operator comfort, while its compact form ensures maneuverability in tight spaces. This versatile tool suits various industries, including metalworking, automotive, and maintenance applications.
Key Features:
- Low Vibration Technology
- Reduces vibration to minimize user fatigue during prolonged use.
- Enhances precision by providing stable handling.
- Compact and Lightweight Design
- Easy to use in tight or confined areas.
- Lightweight construction ensures ease of operation and control.
- High-Performance Pneumatic System
- Delivers consistent power for demanding tasks.
- Optimized for energy efficiency, reducing air consumption.
- Ergonomic Grip
- Designed for comfort and control, enabling precise filing.
- Reduces hand strain even during extended use.
- Durable Construction
- Built with high-quality materials to withstand rigorous industrial environments.
- Low maintenance design ensures long-lasting performance.
Specifications:
- Stroke Length: Engineered for delicate and accurate filing tasks.
- Weight: Lightweight for reduced operator strain.
- Housing Material: Durable composite for longevity and strength.
- Air Consumption: Energy-efficient performance.
Applications:
- Metalworking
- It is ideal for detailed deburring, shaping, and smoothing small metal parts.
- Mold and Die Crafting
- Perfect for intricate finishing on molds and dies.
- Automotive Repair and Maintenance
- Suitable for precision surface preparation in tight spaces.
- Wood and Plastic Finishing
- Handles fine detailing and shaping with ease.
- General Maintenance
- A versatile tool for industrial and professional maintenance tasks.
Why Choose the ZF-10M Low Vibration Mini Air File?
The ZF-10M is engineered for precision and comfort, making it the ideal tool for professionals working on intricate and detailed projects. Its low-vibration technology ensures user comfort, while its durable and compact design guarantees dependable performance in various applications.
Elevate your productivity with the ZF-10M Low Vibration Mini Air File, a must-have tool for achieving precise and efficient results in challenging environments.
Features
- High frequency with 1mm, 5mm & 10mm strokes for various kinds of surface finishing works such as precise and delicate die & mold surface lapping, finishing in confined areas, and general filing works.
- Designed with the following patents to ensure extremely low vibration and operator’s comfort.
。Portable Pneumatic Tool assembled with module units.
。Suspension Vibration-Reducing means for portable pneumatic tools. - Throttle-type flexible hose equipped for the best maneuverability of the tool.
- Adjustable side exhaust directs air away from operators.
- Rubber sleeve designed for operator’s comfort.

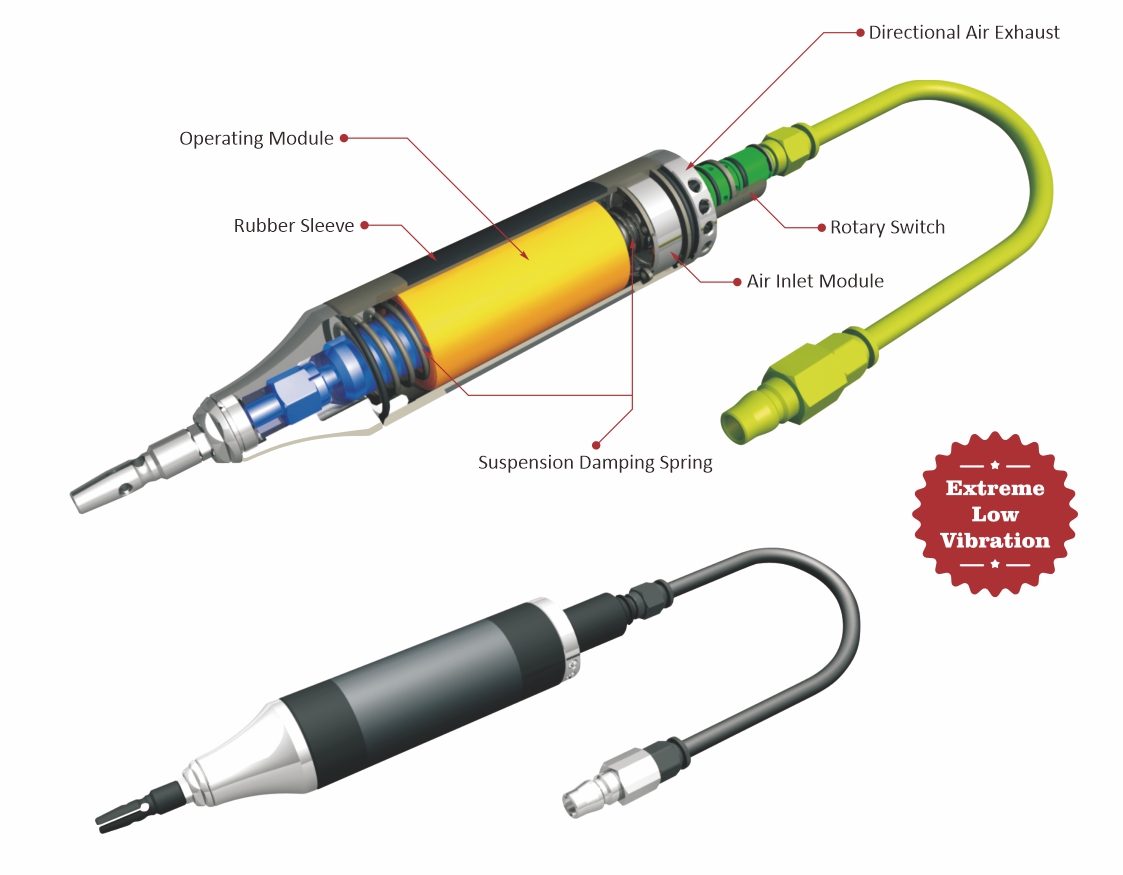

- Operating Module
- Rubber Sleeve
- Suspension Damping Spring
- Directional Air Exhaust
- Rotary Switch
- Air Inlet Module
All rotary-type Switches can be converted to safety lever-type Switches upon request.
Features
- It is ideal for precise and delicate filing castings, lapping die, and mold surfaces.
- High frequency with 0.5~1mm stroke for ZF-1, ZF-1T, ZF-1M, ZF-1MT
- High frequency with 3~5mm stroke for ZF-5, ZF-5T, ZF-5M, ZF-5MT
- High frequency with 7~10mm stroke for ZF-10, ZF-10T, ZF-10M, ZF-10MT
Specification:
- Blows Per Minute: 9000 bpm
- Stroke Length: 7~10 mm
- Avg. Air Cons.: 3.89(110) cfm(l/min)
- Net Weight: 0.73(0.33) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 4.6 m/s2
- Sound Pressure: 71 dB(A)

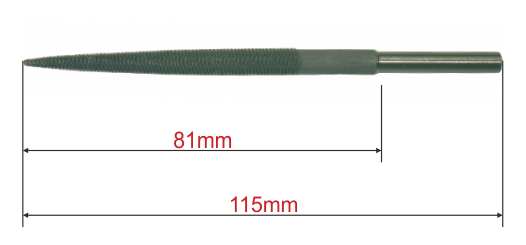

Regular File For ZF-5, ZF-5T, ZF-5M, ZF-5MT, ZF-10, ZF-10T, ZF-10M, ZF-10MT Type Air File, 5mm Shank Diameter
325901
Rectangular File
325902
Round File
325903
Half Round File
325904
Triangular File
Hard Sponge Sandpaper block
- SB120-5 #120 100mm x 70mm x 25mm
- SB180-5 #180 100mm x 70mm x 25mm
- SB220-5 #220 100mm x 70mm x 25mm
- SB280-5 #280 100mm x 70mm x 25mm
COMPARISON CHARTS WITH COMPETITIVE DESIGNS ARE AVAILABLE UPON REQUEST.
| Model | Blows Per Minute bpm |
Stroke Length mm |
Avg. Air Cons. cfm(l/min) |
Net Weight lbs(kgs) |
Air Inlet Size inch-NPT/PT |
Minch Hose Size inch(mm) |
Vibration m/s² |
Sound Pressure dB(A) |
| ZF-1 | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1T | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5 | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5T | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10 | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10T | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-1M | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1MT | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5M | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5MT | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10M | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10MT | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
*Operating Air Pressure: 90psi/6.2bar
