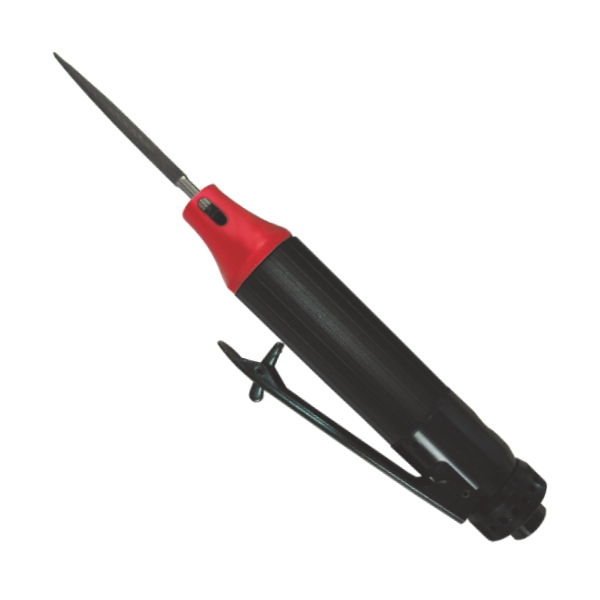

ZF-5MT Low Vibration Mini Air File – Compact Precision with Safety Trigger
The ZF-5MT Low Vibration Mini Air File is a versatile and user-friendly tool for precision filing, finishing, and surface preparation. Engineered with low-vibration technology and a safety trigger mechanism, this mini air file ensures operator comfort and safety without compromising performance.
Key Features:
- Compact and Lightweight Design
- It is ideal for intricate tasks and confined spaces.
- Lightweight construction reduces operator fatigue during prolonged use.
- Low Vibration Technology
- Minimizes hand-arm vibration to enhance comfort and reduce fatigue.
- Improves control and precision for delicate applications.
- Safety Trigger Mechanism
- Prevents accidental starts for added operator safety.
- Ergonomic trigger design ensures easy operation.
- High-Speed Filing Performance
- Delivers powerful strokes for efficient material removal.
- Suitable for a wide range of materials, including metal, plastic, and wood.
- Durable Build
- Crafted from high-quality materials for long-lasting durability.
- Reliable performance even in demanding industrial environments.
Specifications:
- Stroke Length: Optimized for precise material removal.
- Vibration Level: Reduced to ensure operator safety and compliance with industrial standards.
- Material Compatibility: Suitable for metalworking, woodworking, and automotive applications.
- Trigger Type: Ergonomic safety trigger.
- Weight: Lightweight for improved maneuverability.
Applications:
- Metalworking and Fabrication
- It is ideal for deburring, edge finishing, and shaping metal components.
- Automotive Repairs
- Suitable for bodywork, fine detailing, and surface preparation.
- Woodworking
- Efficiently files and shapes wooden surfaces and corners.
- Plastic Finishing
- Delivers precision filing for plastic moldings and assemblies.
- General Maintenance and Repair
- Perfect for light-duty filing tasks in workshops and industrial settings.
Why Choose the ZF-5MT Low Vibration Mini Air File?
The ZF-5MT is a reliable tool for precision tasks, offering a blend of efficiency, safety, and comfort. Its low-vibration technology reduces operator strain, while the compact design and safety trigger make it perfect for professional and industrial use.
Upgrade your toolkit with the ZF-5MT Low Vibration Mini Air File for unmatched performance and control in precision filing applications.
Features
- High frequency with 1mm, 5mm & 10mm strokes for various kinds of surface finishing works such as precise and delicate lapping of die & mold surface, finishing in confined areas, and general filing works.
- Designed with the following patents to ensure extremely low vibration and operator’s comfort.
。Portable Pneumatic Tool assembled with module units.
。Suspension Vibration-Reducing means for portable pneumatic tools. - Throttle-type flexible hose equipped for the best maneuverability of the tool.
- Adjustable side exhaust directs air away from operators.
- Rubber sleeve designed for operator’s comfort.
- Operating Module
- Rubber Sleeve
- Suspension Damping Spring
- Directional Air Exhaust
- Rotary Switch
- Air Inlet Module
All rotary-type Switches can be converted to safety lever-type Switches upon request.
Features
- It is ideal for precise and delicate filing castings and for lapping die and mold surfaces.
- High frequency with 0.5~1mm stroke for ZF-1, ZF-1T, ZF-1M, ZF-1MT
- High frequency with 3~5mm stroke for ZF-5, ZF-5T, ZF-5M, ZF-5MT
- High frequency with 7~10mm stroke for ZF-10, ZF-10T, ZF-10M, ZF-10MT
Specification:
- Blows Per Minute: 11000 bpm
- Stroke Length: 3~5 mm
- Avg. Air Cons.: 2.82(80) cfm(l/min)
- Net Weight: 0.73(0.33) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 3.6 m/s2
- Sound Pressure: 83 dB(A)
Regular File For ZF-5, ZF-5T, ZF-5M, ZF-5MT, ZF-10, ZF-10T, ZF-10M, ZF-10MT Type Air File, 5mm Shank Diameter
325901
Rectangular File
325902
Round File
325903
Half Round File
325904
Triangular File
Hard Sponge Sandpaper block
- SB120-5 #120 100mm x 70mm x 25mm
- SB180-5 #180 100mm x 70mm x 25mm
- SB220-5 #220 100mm x 70mm x 25mm
- SB280-5 #280 100mm x 70mm x 25mm
COMPARISON CHARTS WITH COMPETITIVE DESIGNS ARE AVAILABLE UPON REQUEST.
| Model | Blows Per Minute bpm |
Stroke Length mm |
Avg. Air Cons. cfm(l/min) |
Net Weight lbs(kgs) |
Air Inlet Size inch-NPT/PT |
Minch Hose Size inch(mm) |
Vibration m/s² |
Sound Pressure dB(A) |
| ZF-1 | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1T | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5 | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5T | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10 | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10T | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-1M | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1MT | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5M | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5MT | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10M | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10MT | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
*Operating Air Pressure: 90psi/6.2bar
