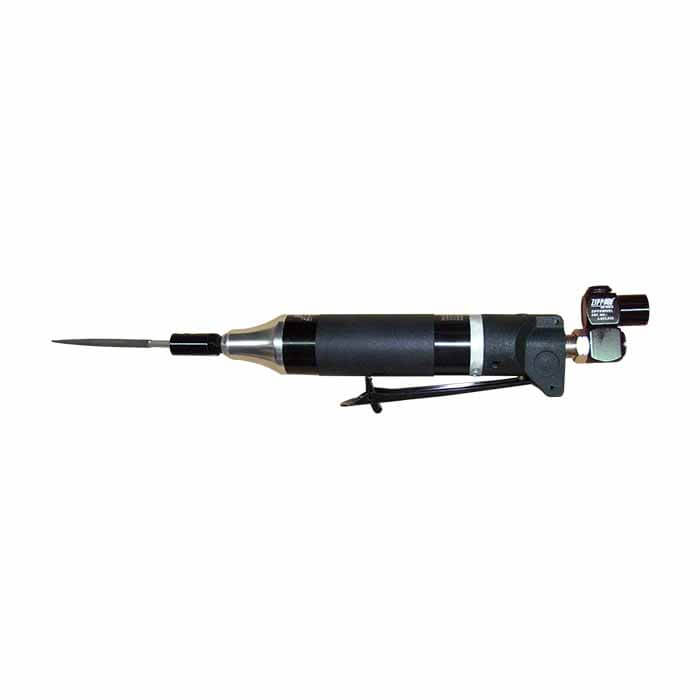

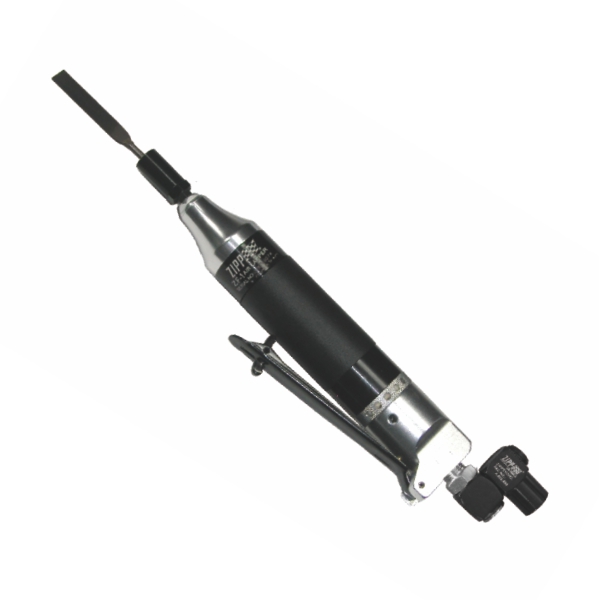

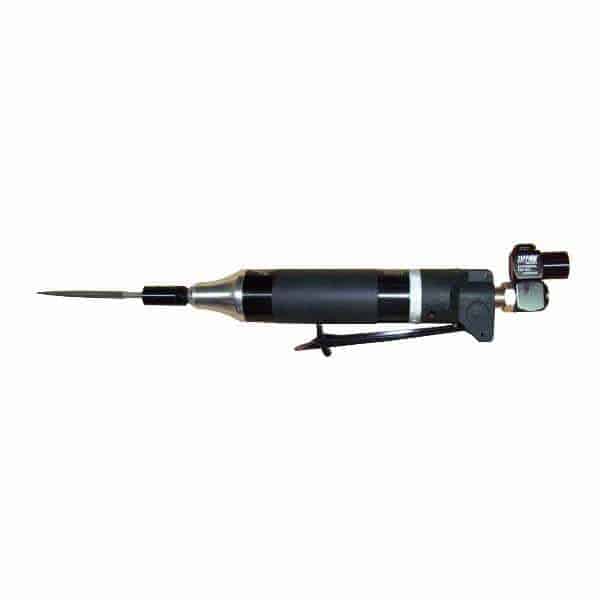

ZF-5T Vibration Reduced Air File with Safety Trigger
The ZF-5T Air File is a high-performance pneumatic tool with minimal vibration and precise filing. It is engineered for professional use and ensures greater operator comfort and control, making it ideal for metalworking, automotive bodywork, and other industrial applications requiring refined shaping and surface finishing.
Key Features and Benefits
1. Vibration-Reduced Design
- Advanced vibration-dampening technology minimizes hand fatigue, allowing for extended use with greater comfort and precision.
- It helps reduce the risk of vibration-related injuries, enhancing safety for frequent users.
2. Safety Trigger Mechanism
- Equipped with a safety trigger to prevent accidental starts, ensuring safe operation in busy environments.
- It provides better control and reduces the chance of unintended tool activation.
3. Precise and Versatile Filing Performance
- It is designed for fine surface finishing on metals, plastics, and other materials, making it suitable for various tasks such as deburring, shaping, and smoothing.
- It can be used in automotive body repairs, mold fabrication, and metalworking industries.
4. Lightweight and Ergonomic Build
- Compact and lightweight construction ensures better maneuverability, even in tight spaces.
- Ergonomically designed handle with anti-slip grip enhances control and reduces operator fatigue during extended tasks.
5. Quick File Change System
- Features an easy-to-use file holder that allows quick changes between different file shapes and sizes, enhancing workflow efficiency.
6. Durable Construction for Industrial Use
- It is built with high-quality materials to withstand heavy-duty operations and resist wear and tear, extending the tool’s service life.
- Low maintenance requirements reduce downtime, keeping your operations running smoothly.
Applications
The ZF-5T Vibration Reduced Air File is ideal for industries and tasks that demand precision and efficiency, including:
- Automotive Body Repair: Smoothing welds, repairing scratches, and reshaping panels.
- Metalworking: Deburring edges, removing surface defects, and shaping components.
- Mold Making and Fabrication: Finishing molds and dies with delicate precision.
- Plastics and Composites: Smoothing and shaping parts made from synthetic materials.
Why Choose the ZF-5T Air File?
The ZF-5T Air File delivers superior filing performance, prioritizing user safety and comfort. Its vibration-reduced design, safety trigger, and ergonomic build ensure that users can work efficiently without compromising safety. Whether in the automotive, industrial, or fabrication industries, this tool offers reliability, durability, and precision for professional applications.
Extreme Low Vibration
Features
- High frequency with 1mm, 5mm, and 10mm strokes are used for various surface finishing works, such as precise and delicate lapping of die and mold surfaces, finishing in confined areas, and general filing works.
- They were designed with the following patents to ensure extremely low vibration and operator comfort.
。Portable Pneumatic Tool assembled with module units.
。Suspension Vibration-Reducing means for portable pneumatic tools. - Throttle-type flexible hose equipped for the best maneuverability of the tool.
- Adjustable side exhaust directs air away from operators.
- Rubber sleeve designed for operator’s comfort.
- Operating Module
- Rubber Sleeve
- Suspension Damping Spring
- Directional Air Exhaust
- Rotary Switch
- Air Inlet Module
All rotary-type Switches can be converted to safety lever-type Switches upon request.
Features
- It is ideal for precise and delicate filing castings and lapping die and mold surfaces.
- High frequency with 0.5~1mm stroke for ZF-1, ZF-1T, ZF-1M, ZF-1MT
- High frequency with 3~5mm stroke for ZF-5, ZF-5T, ZF-5M, ZF-5MT
- High frequency with 7~10mm stroke for ZF-10, ZF-10T, ZF-10M, ZF-10MT
Specification:
- Blows Per Minute: 11000 bpm
- Stroke Length: 3~5 mm
- Avg. Air Cons.: 2.82(80) cfm(l/min)
- Net Weight: 1.54(0.7) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 3.6 m/s2
- Sound Pressure: 83 dB(A)
Regular File For ZF-5, ZF-5T, ZF-5M, ZF-5MT, ZF-10, ZF-10T, ZF-10M, ZF-10MT Type Air File, 5mm Shank Diameter
325901
Rectangular File
325902
Round File
325903
Half Round File
325904
Triangular File
Hard Sponge Sandpaper block
- SB120-5 #120 100mm x 70mm x 25mm
- SB180-5 #180 100mm x 70mm x 25mm
- SB220-5 #220 100mm x 70mm x 25mm
- SB280-5 #280 100mm x 70mm x 25mm
COMPARISON CHARTS WITH COMPETITIVE DESIGNS ARE AVAILABLE UPON REQUEST.
| Model | Blows Per Minute bpm | Stroke Length mm | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Vibration m/s² | Sound Pressure dB(A) |
| ZF-1 | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1T | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5 | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5T | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10 | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10T | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-1M | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1MT | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5M | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5MT | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10M | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10MT | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
*Operating Air Pressure: 90psi/6.2bar
