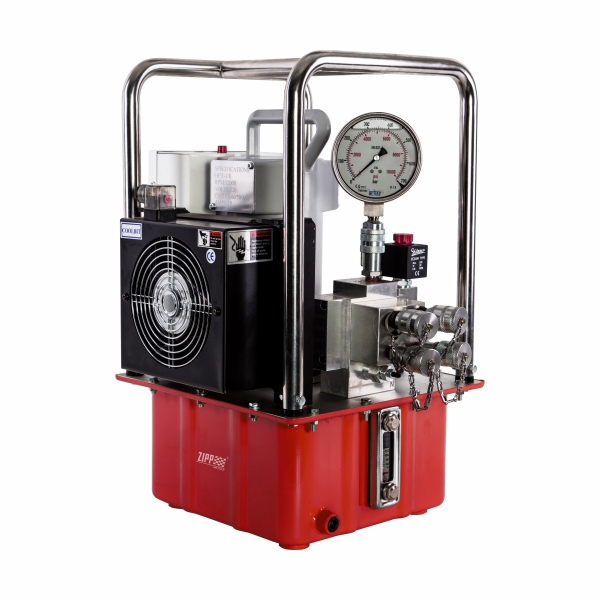

ZHEP-665 Hydraulic Electric Pump
The ZHEP-665 is a powerful and efficient hydraulic electric pump designed for high-pressure and precision control applications. This model delivers optimal performance in powering torque wrenches, hydraulic cylinders, bolt tensioners, and other heavy-duty hydraulic tools. With a robust electric motor, advanced pressure control, and high flow capacity, the ZHEP-665 ensures fast operation, durability, and long service life in demanding industrial settings.
Key Features
- High-Pressure Output: Designed to operate up to 700 bar (10,000 psi), ensuring excellent performance across various applications.
- Dual-Stage Pumping: This system provides fast low-pressure flow for tool positioning and shifts to high-pressure delivery for precision tightening and lifting tasks.
- Advanced Digital Control: This model features a user-friendly LCD display for monitoring pressure and system status, along with fine-tuning capabilities.
- Quiet and Energy-Efficient Motor: The electric motor ensures low-noise operation while delivering consistent power, reducing workplace disturbances.
- Thermal Protection System: Prevents overheating during prolonged use, ensuring reliable and safe operation.
- Integrated Safety Valve: Protects against over-pressurization to prevent equipment damage and ensure user safety.
- Oil Reservoir Capacity: Features a large oil tank to support long operational cycles without frequent refilling.
- Portable Design: Built with a compact frame and ergonomic handles for easy transport to job sites.
- Remote Operation Capabilities: It is compatible with external control interfaces, allowing operators to control the pump remotely via PC or handheld devices.
Applications
- Oil & Gas Industry: Ideal for flange tightening, valve maintenance, and high-pressure bolting operations.
- Construction & Infrastructure: Used to tighten bolts on bridges, tunnels, cranes, and steel frameworks.
- Shipbuilding & Marine Engineering: Essential for hydraulic maintenance and assembly in confined spaces.
- Energy & Power Generation: Supports turbine assembly, generator maintenance, and transmission infrastructure.
- Mining & Heavy Equipment Maintenance: Powers hydraulic tools for trucks, excavators, and loaders maintenance.
Benefits
- Increased Productivity: The dual-stage design reduces cycle times, enhancing task efficiency.
- User Safety: Safety valves, thermal protection, and remote operation capabilities ensure safe and reliable operation.
- Portability & Flexibility: Lightweight and easy to transport, making it suitable for on-site use and field operations.
- Low Maintenance: The electric motor eliminates the need for air compressors, reducing maintenance costs and environmental impact.
- Quiet Operation: The low-noise motor creates a more comfortable working environment, especially in indoor or noise-sensitive areas.
The ZHEP-665 Hydraulic Electric Pump is a versatile and reliable solution for powering hydraulic tools in industrial environments. Its high pressure, safety features, and user-friendly controls make it an ideal choice for professionals who require high performance and precision on demanding projects.
- Reservoir Capacity: 8-20L
- Flow at rated pressure: 11.3-0.9 L
- Motor Size: 0.84kW (1-1/8 hp)
- Maximum Operating Pressure: 700 bar
Hydraulic Electric Pump
- A 2-speed pump drives single -or double-acting cylinders, delivering a high volume of oil.
- Air is the preferred source of power, which supply requires 3~8 bar.
- Max.Pressure: 700bar.
- External adjustable pressure regulator
- Powerful four-hp motor starts under load.
- Retract side internal relief valve protects tool.
- Just use it with Hydraulic lift applications.
- Stainless frame is easy to carry.
Custom build your Electric Pump.
O. Type
TQ = use with Torque Wrench
TQH = use with hydraulic lock bolt tools.
TQJ = use in lift applications
1. Voltage
1 = 115V
2 = 230V
2. Hz
5= 50Hz I 60Hz
3. Phase
1= 1ph
4. Reservoir (L x 0.26 = gal)
8 = 8L (2.1 gal)
20 = 20L (5.2 gal)
*User can order suitable reservoirs.
5. Valve (use in TQJ series)
3 = Manual 3-Way
4 = Manual 4-Way
7 = Check Solenoid 3-Way
8 = Check Solenoid 4-Way
6. Optional
W = Castor wheel
O = Cool system
G = Pressure Gauge
Model Number | rpm | dB(A) at Idle and 700bar | Motor | Amp at 700bar | Flow rate @230VAC(l/min) | oil tank | Usable oil | Weight with oil | |||
kW(hp) | A | 0(bar) | 50(bar) | 350(bar) | 700(bar) | L | L | kg | |||
ZHEP-665 | 12000 | 80 | 0.84(1-1/8) | 20/110V | 11.3 | 7.2 | 1.2 | 0.95 | 8 | 7 | 32 |
10.7/230V |
