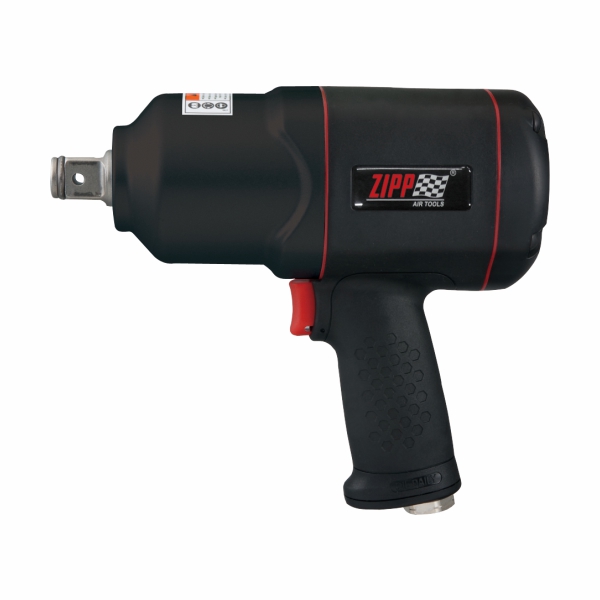

ZIW1077C-6 3/4 Inch Composite Air Impact Wrench with 6 Inch Extension
The ZIW1077C-6 3/4″ Composite Air Impact Wrench is a heavy-duty pneumatic tool engineered for maximum power and reach. Built with a durable composite housing to reduce overall weight, it delivers exceptional torque output while minimizing operator fatigue. The 6-inch extended anvil makes it ideal for accessing recessed lug nuts, deep wheel wells, and hard-to-reach fasteners without compromising torque performance. Designed for demanding automotive, truck, and industrial applications, the ZIW1077C-6 combines rugged reliability with ergonomic comfort. Its advanced impact mechanism ensures smooth, consistent performance, while the lightweight composite construction helps reduce strain during extended use.
Application Example
-
Truck & Bus Maintenance: Easily remove deep-seated lug nuts and suspension bolts.
-
Heavy Equipment Repair: Perfect for fastening large bolts on construction and agricultural machinery.
-
Automotive Service: Ideal for working on deep wheel wells and specialty rims.
-
Industrial Assembly & Maintenance: Handles large fasteners in production and plant environments.
Advantages
-
6-Inch Extended Anvil – Provides extended reach for deep wheel hubs and recessed bolts.
-
Lightweight Composite Housing – Reduces operator fatigue without sacrificing durability.
-
High Torque Output – Designed for heavy-duty applications where maximum power is required.
-
Ergonomic Grip – Enhances comfort and control during long work sessions.
-
Balanced Impact Mechanism – Delivers consistent performance with reduced vibration.
-
Professional Durability – Built to withstand daily use in high-demand environments.
Why Choose the ZIW1077C-6?
-
Extended Reach, Full Power: The 6-inch anvil gives you access to deep fasteners without losing torque strength.
-
Lighter, Stronger, Faster: Composite housing offers the strength of metal with less weight.
-
Trusted in Heavy-Duty Work: Ideal for fleet maintenance, trucking, and industrial repair.
-
Reduces Operator Fatigue: Ergonomic design supports long-term use with minimal strain.
-
Long-Lasting Reliability: Engineered for years of performance under demanding conditions.
- Twin hammer impact mechanism to perform the best torque output, and Special hardened treatment to maintain the best durability.
- Titanium clutch case to reinforce the strength (ZIW1063CT).
- Vane with spring mounted to prevent dead-lock or power loss.
- Special Hardened Cylinder, Front plate, and Rear plate to generate the best durability.
- 3 different speed adjustments in the Forward direction, one full speed in the Reverse direction.
- Composite handle to provide the best power-to-weight ratio and prevent uncomfortable usage during temperature changes.
- 360-degree swivel air inlet to prevent the air hose from twisting.
Specification:
- Square Drive: 3/4(19) inch(mm)
- Free Speed: 5500 rpm
- Max. Torque(15 secs): 1,500(2,030) ft-lb(Nm)
- Working torque (5 secs): 1,200(1,630) ft-lb(Nm)
- Avg. Air Cons: 4.9(139) cfm(l/min)
- Net Weight: 9.9(4.5) lbs(kgs)
- Impact mechanism: Twin Hammer
| Model | Square Drive inch(mm) |
Free Speed rpm |
Max. Torque (15 secs) ft-lb(Nm) |
Working torque (5 secs) ft-lb(Nm) |
Avg. Air Cons. cfm(l/min) |
Net Weight lbs(kgs) |
Impact mechanism |
| ZIW1015C | 1/2(12.7) | 8500 | 820(1100) | 650(880) | 4.9(139) | 4.6(2.1) | Twin Hammer |
| ZIW1015CTL | 1/2(12.7) | 8500 | 820(1111) | 55~66(75~90) | 5.5(158) | 4.6(2.1) | Twin Hammer |
| ZIW1077C | 3/4(19) | 5500 | 1500(2030) | 1200(1630) | 4.9(139) | 8.2(3.7) | Twin Hammer |
| ZIW1077C-3 | 3/4(19) | 5500 | 1500(2030) | 1200(1630) | 4.9(139) | 9.3(4.2) | Twin Hammer |
| ZIW1077C-6 | 3/4(19) | 5500 | 1500(2030) | 1200(1630) | 4.9(139) | 9.9(4.5) | Twin Hammer |
| ZIW1078C | 1(25) | 5500 | 1500(2030) | 1200(1630) | 4.9(139) | 8.2(3.7) | Twin Hammer |
| ZIW1063CT | 1/2(12.7) | 8500 | 820(1100) | 650(880) | 4.9(139) | 4.8(2.2) | Twin Hammer |
