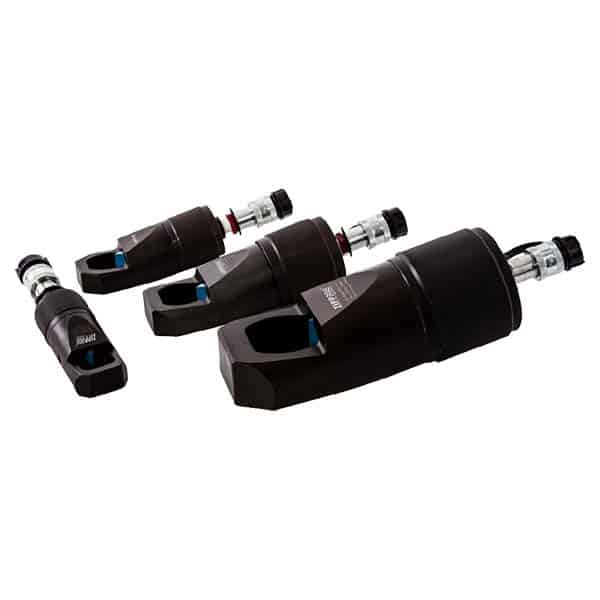

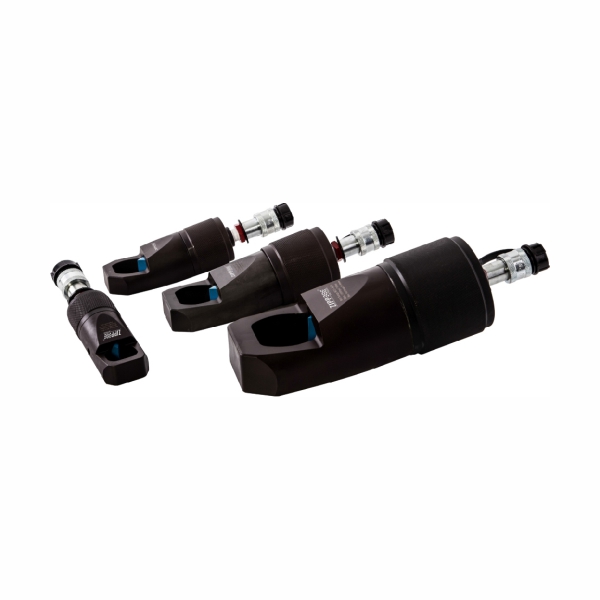

ZNSC Series Hydraulic Nut Splitter
The ZNSC Series Hydraulic Nut Splitter is engineered to efficiently remove seized or corroded nuts in heavy-duty industrial applications. Designed to eliminate the need for torches or abrasive cutting tools, it uses hydraulic power to safely and quickly split nuts without damaging the bolt or surrounding equipment. This tool is ideal for maintenance and repair tasks in the construction, mining, petrochemical, and marine sectors.
Key Features
- Decisive Hydraulic Action: Provides high force for splitting tough, corroded, or rusted nuts with ease.
- Precision Cutting Blade: Hardened cutting blade designed to penetrate nut material without harming bolts or other hardware components.
- Compact and Portable Design: Lightweight and easy to maneuver, even in confined or difficult-to-reach spaces.
- Durable Construction: Built with heavy-duty materials to withstand harsh industrial environments and ensure long-lasting performance.
- Simple Operation: User-friendly controls allow for quick setup and safe, efficient operation with minimal training.
Applications
- Heavy Equipment Maintenance: This tool easily removes stubborn nuts from machinery and equipment in the construction, mining, and agriculture sectors.
- Petrochemical and Oil & Gas: Efficiently split nuts affected by corrosion, ideal for pipeline and refinery maintenance.
- Marine Industry: Designed to tackle bolts in high-moisture, corrosive marine environments, making it ideal for ship and dock maintenance.
- Industrial Maintenance: Perfect for manufacturing and industrial plants where fast and safe removal of seized nuts is essential for timely repairs.
Benefits
- Increased Safety: Eliminates the need for heat or abrasive tools, reducing the risk of fire hazards and injuries from flying debris.
- Efficient Performance: Hydraulic force speeds up removing seized nuts, reducing downtime and improving productivity.
- Cost-Effective: Preserves the bolt and surrounding hardware, minimizing the need for replacement parts and further repair costs.
- Versatile and Adaptable: It is compatible with a range of nut sizes, making it a valuable tool across various industries and applications.
The ZNSC Series Hydraulic Nut Splitter is a reliable, high-performance solution for removing even the most stubborn nuts with minimal risk and effort. It ensures safety and efficiency in demanding industrial environments.
- Capacity: 5-90 ton
- Bolt Range: M6-M48
- Hex. Nut Range: 10-75 mm
- Maximum Operating Pressure: 700 bar
Hydraulic Nut Splitter
- A specially designed “tool steel” cutter blade penetrates the nut until it cracks, stopping short of the bolt threads.
- Applications include servicing trucks, the piping industry, tank cleaning, petrochemical, steel construction, and mining.
- Heavy-duty chisels can be reground.
- Sing-acting, spring return cylinder.
- A unique angled head allows flush access.
- Compact and ergonomic design, easy to use.
Model Number | Hex. Nut Range | Bolt Range | Capacity | Oil Capacity | Weight | ||
inch | mm | inch | mm | ton | cm³ | kg | |
ZNSC-1319 | 0.5-0.75 | 13-19 | 0.31-0.5 | M8-M12 | 5 | 15 | 1.1 |
ZNSC-1924 | 0.75-0.94 | 19-24 | 0.5-0.63 | M1-M16 | 10 | 20 | 2 |
ZNSC-2432 | 0.94-1.13 | 24-32 | 0.63-0.88 | M16-M22 | 15 | 60 | 3.4 |
ZNSC-3241 | 1.13-1.56 | 32-41 | 0.88-1.13 | M22-M27 | 20 | 80 | 5.8 |
ZNSC-4150 | 1.56-2 | 41-50 | 1.13-1.38 | M27-M33 | 35 | 155 | 11.7 |
ZNSC-5060 | 2-2.25 | 50-60 | 1.38-1.5 | M33-M39 | 50 | 240 | 15.4 |
ZNSC-6075 | 2.38-2.88 | 60-75 | 1.5-1.88 | M39-M48 | 90 | 492 | 38.9 |
Model Number | Dimensions (mm) | ||||||
A | B | C | D | F | H | J | |
ZNSC-1319 | 40 | 200 | 6 | 19 | 28 | 48 | 21 |
ZNSC-1924 | 55 | 227 | 8 | 25 | 38 | 71 | 25 |
ZNSC-2432 | 66 | 260 | 10 | 31 | 49 | 76 | 33 |
ZNSC-3241 | 75 | 286 | 15 | 35 | 56 | 89 | 43 |
ZNSC-4150 | 96 | 325 | 21 | 45 | 73 | 109 | 54 |
ZNSC-5060 | 106 | 366 | 27 | 54 | 92 | 126 | 60 |
ZNSC-6075 | 156 | 366 | 27 | 75 | 110 | 180 | 78 |
