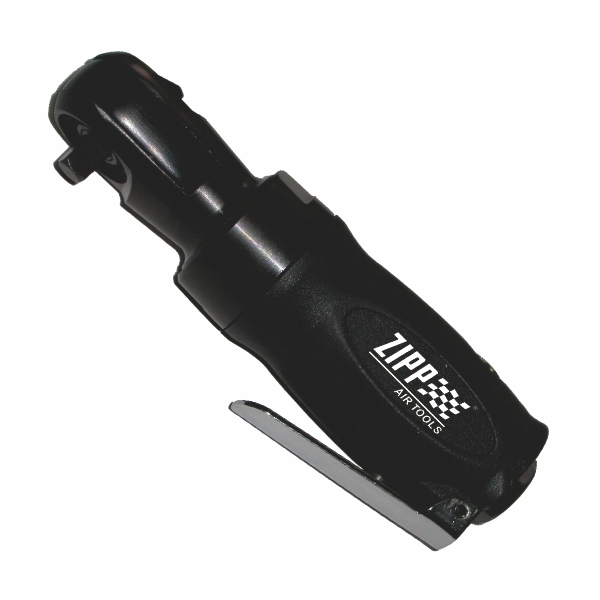

ZP168 1/4 inch Air Ratchet Wrench





The ZP168 1/4 inch Air Ratchet Wrench is a lightweight, compact, and high-efficiency pneumatic tool engineered for precision fastening, quick operation, and operator comfort. Built with a high-performance air motor and precision gear system, it delivers smooth and consistent torque for assembly and maintenance tasks where space is limited and accuracy is essential. Designed for both professional and industrial use, the ZP168 combines speed, balance, and durability in a compact form factor. Its ergonomic grip, rear exhaust system, and reliable ratchet head assembly ensure stable, long-term operation while minimizing fatigue and noise during continuous use.





Key Features





• High-Speed Operation – Offers rapid bolt tightening and loosening for improved productivity in light-duty applications.

• Compact and Lightweight Design – Ideal for confined areas such as under dashboards, inside panels, or tight mechanical assemblies.

• Durable Ratchet Head Mechanism – Precision-engineered steel construction ensures long service life under repeated use.

• Ergonomic Grip and Balanced Body – Reduces hand strain, provides excellent control, and supports prolonged operation.

• Smooth Trigger Control – Allows precise speed adjustment for sensitive or high-speed fastening.

• Rear Exhaust Design – Directs air away from the operator and work surface, maintaining a cleaner and more comfortable workspace.

• Low Noise and Vibration – Quiet, smooth air motor operation improves operator safety and comfort.

• Energy-Efficient Performance – Optimized airflow system reduces air consumption without compromising torque output.





Applications





The ZP168 Air Ratchet Wrench is ideally suited for light assembly, repair, and maintenance operations, including:





• Automotive and motorcycle servicing – interior, dashboard, and engine component fastening

• Machinery and equipment maintenance – small bolt installation or removal in confined spaces

• Appliance and electronic product assembly – precision fastening requiring controlled torque

• Furniture and fixture assembly – fast, efficient tightening in compact areas

• OEM and light industrial production lines – a reliable tool for repetitive, low-torque applications





Performance Advantages





• Reliable Torque and Speed – Provides consistent torque for light-duty tasks with quick rotational performance.

• Superior Operator Comfort – Lightweight housing and ergonomic design minimize fatigue during extended shifts.

• Durable and Dependable – Industrial-grade ratchet head and internal components ensure long-term reliability.

• High Productivity – Fast cycle speeds enhance workflow efficiency and reduce assembly time.

• Clean Operation – The rear exhaust prevents debris and air discharge from reaching the user.

• Low Maintenance – A simple internal structure allows for easy servicing and extended operating intervals.





Technical Benefits





• Drive Size: 1/4 inch square drive

• Maximum Torque: Optimized for light-duty assembly and maintenance work

• Free Speed: High RPM for efficient operation in confined spaces

• Exhaust Type: Rear exhaust for clean, quiet air discharge

• Direction Control: Forward/reverse lever for quick torque direction changes

• Body Design: Slim, ergonomic handle for comfort and precision

• Recommended Air Pressure: 0.63 MPa (90 psi)

• Maintenance: Use standard pneumatic lubricants to ensure long-lasting, smooth operation





Why Choose ZP168 1/4 inch Air Ratchet Wrench





The ZP168 1/4 inch Air Ratchet Wrench offers the perfect combination of speed, precision, and ergonomic design for light assembly and service operations. Its smooth torque control, durable construction, and low-vibration performance make it a dependable choice for professionals requiring accuracy and reliability in compact workspaces. Engineered with our commitment to Power, Precision, and Productivity, the ZP168 delivers consistent performance and operator comfort — a valuable tool for technicians, assemblers, and maintenance professionals seeking quality and efficiency in everyday pneumatic applications.





Specification:





• Square Drive: 1/4(6.4) inch(mm)
• Std. Bolt Size: 1/4(6.4) inch(mm)
• Free Speed: 260 rpm
• Max. Torque: 20(27) ft-lb(Nm)
• Avg. Air Cons.: 2.5(70) cfm(l/min)
• Air Inlet Size: 1/4 inch
• Net Weight: 0.99(0.45) lbs(kgs)
• Overall Length: 5-1/4(133) inch(mm)
• Min. Hose Size: 1/4(6.4) inch(mm)
• Operating Air Pressure: 90(6.2) PSI(kg/cm²)





Model	Square Drive inch(mm)	Std Bolt Size inch(mm)	Free Speed rpm	Max. Torque ft-lb(Nm)	Avg. Air Cons. cfm(l/min)	Air Inlet Size inch	Net Weight lbs(kgs)	Overall Length inch(mm)	Min Hose Size inch(mm)
ZHD-7728	–	–	400	35(47.5)	3(85)	1/4	1.06(0.48)	6-17/64(159)	3/8(10)
ZP161	1/2(12.7)	1/4(6.4)	175	50(68)	3(85)	1/4	2.6(1.18)	10-13/32(265)	3/8(10)
ZP163	3/8(10)	1/4(6.4)	175	50(68)	3(85)	1/4	2.6(1.18)	10-13/32(265)	3/8(10)
ZP168	1/4(6.4)	1/4(6.4)	260	20(27)	2.5(70)	1/4	0.99(0.45)	5-1/4(133)	1/4(6.4)
ZP169	3/8(10)	1/4(6.4)	260	20(27)	2.5(70)	1/4	0.99(0.45)	5-1/4(133)	1/4(6.4)

Recommended Gauge Air Pressure: 60~90psi
